HCET 3MP Bimetallic Thermal overload switch for motor Automotive Outdoor

HCET 3MP Bimetallic Thermal overload switch for motor Automotive Outdoor

Brand Name:	HCET
Model Number:	3MP
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS

Document:

3MP.pdf

Application:

Automotive, Washing Machine Motors

Key Application:

Compressors

Dielectric Strength:

AC 1500V For 1 Minute

Action Type:

Snap

Insulation Resistance:

≥100MΩ

Temperature Tolerance:

±5°C

Temperature Range:

From 80 To 150 Degree

Packaging Details:

20000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

Thermal overload switch

overload switch for motor

Bimetallic Thermal overload switch

Product Description

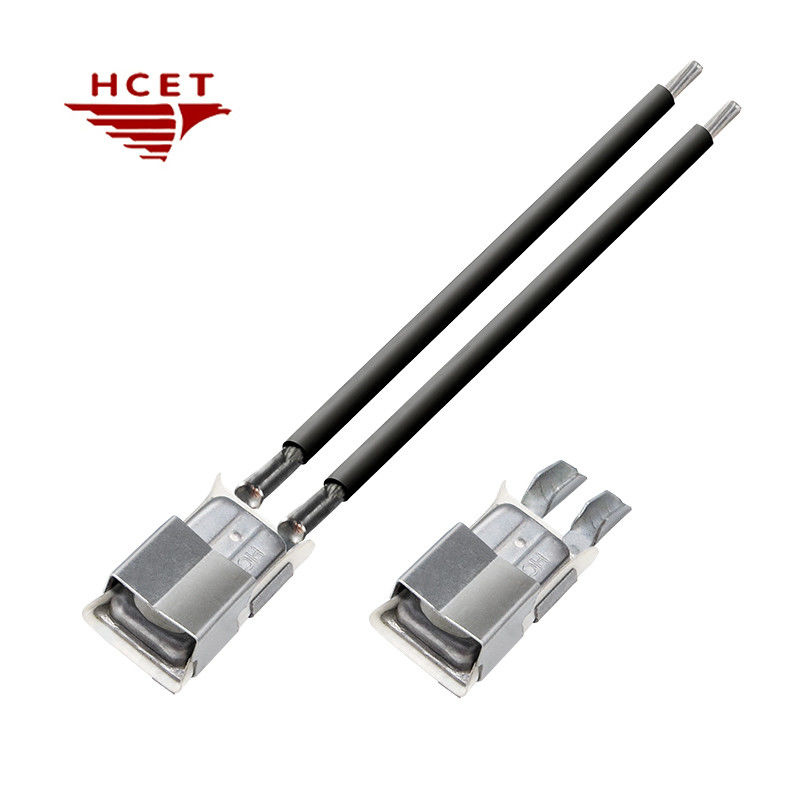

HCET 3MP Bimetallic Thermal Overload Switch for Motor Automotive Outdoor

Product Attributes

Attribute	Value
Application	Automotive, Washing machine motors
Key Application	Compressors
Dielectric Strength	AC 1500V for 1 minute
Action Type	Snap
Insulation Resistance	≥100MΩ
Temperature Tolerance	±5°C
Temperature Range	80 to 150°C

Next-Generation Motor Protection Technology

The HCET 3MP Series represents a breakthrough in bimetal thermal protection, delivering precision safety for high-load motor systems in automotive window lifts, door locks, and industrial applications. Our UL-listed bimetal technology outperforms traditional fuses with cycling protection that automatically resets after fault conditions subside.

Key Advantages Over KLIXON Series

✔ 30% Faster Response - Cuts power within 4-10 seconds at ±3% current detection accuracy
✔ Wider Protection Range - Handles 15-45A DC or 125-250V AC loads
✔ Dual-Layer Safety - Simultaneous overcurrent + overheating protection
✔ Direct KLIXON Replacement - Fully compatible with 2MP/3MP/5AP/6AP series

Precision Engineering Features

• Military-Grade Current Sensing - ±3% accuracy across full load range
• Extended Temperature Operation - Customizable 30-180℃ protection threshold
• Self-Holding Mechanism - Prevents restart until system cools
• Vibration-Resistant Design - Withstands 15G continuous vibration

Automotive & Industrial Applications

Power window lift systems
Door lock actuators
Seat adjustment motors
HVAC blower motors
Industrial automation drives

Global Compliance Ready

✓ UL 60730-1 Certified
✓ RoHS 3.0 Compliant
✓ REACH SVHC <0.1%

Available Configurations

Quick-connect terminal models
Flying lead wire versions
Custom bracket mounting solutions
OEM-specific calibration available

Why Upgrade to HCET 3MP?

50,000+ operation cycles 3× standard fuse lifespan

30% space-saving versus KLIXON equivalents

0.5ms arc suppression technology

IP67 waterproof options available

Technical Support Services

Cross-reference compatibility checking
Failure mode analysis reports
Custom calibration services
On-site validation testing

Ordering Information

Standard models ship in 3-5 days
Custom configurations available in 2-3 weeks
MOQ: 500pcs (lower quantities by request)

Electrical Characteristics

30℃~180℃ Operating temperature range, Customizable temperature

4S~10S Special action time can be customized

±5°C, ±8℃ Temperature Tolerance

1A~45A The overload current tripping range can be customized according to customer's requirements

45amps/15 volts DC	15amps/30 volts DC
25amps/250 volts AC	30amps/125 volts AC

Dimension Size
