Motor Thermal Protector
Created with Pixso. Custom Bimetal Overload DC Motor Thermal Protection Device Switch HCET 5AP 2MP
Name
  • Name
  • Name
  • Name

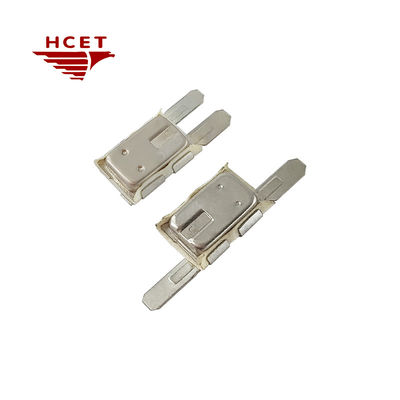

Custom Bimetal Overload DC Motor Thermal Protection Device Switch HCET 5AP 2MP

Brand Name: HCET
Model Number: 5AP/2MP
MOQ: 1000
Price: please contact us
Delivery Time: 5-7 work days
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
UL, ROHS
Document:
5ap.pdf
Product Name:
5AP Motor Thermal Protector
Material:
Metal Case
Temperature Range:
50~180℃
Tolerance:
±8℃,±10℃
Voltage:
15V/30V DC
Current:
Customizable
Application:
Automotive DC Motors
Packaging Details:
20000 pcs per carton
Supply Ability:
10000000 pcs per month
Highlight:

DC motor thermal protection device

,

HCET 5AP motor thermal protection device

,

custom thermal overload protection switch

Product Description

HCET 5AP/2MP Bimetal Thermal Protector Motor Overload Protection Switch for Automotive DC Motors

The HCET 5AP Bimetal Thermal Protector is a precision-engineered overload protection device designed for automotive and industrial DC motors. Combining current sensitivity and ambient temperature detection, this compact protector ensures reliable motor safety in high-demand applications such as power windows, wiper systems, and skylight mechanisms.

Product feature:

  • Precision Bimetal Actuation
       - High-precision bimetal strip ensures ±5℃ tolerance (standard) or ±8℃ (high-vibration environments).
       - Operates at 50°C-180°C range for tropical climates or engine bay installations.
  • Durability Under Stress
       - 30,000+ mechanical cycles tested, exceeds typical automotive OEM requirements.
       - Flame-retardant housing resists short-circuit sparks.
  • Space-Saving Design
       - Ultra-compact profile fits tight motor assemblies.

Electrical Characteristics:

50℃~180℃
Operating temperature range, Customizable temperature.

 4S~10S
Special action time can be customized
±8°C, ±10℃
Temperature Tolerance		 1A~25A
The overload current tripping range can be customized according to customer's requirements.
25amps/15 volts DC                                         15amps/30 volts DC
Electrical characteristics



Dimension size

Custom Bimetal Overload DC Motor Thermal Protection Device Switch HCET 5AP 2MP 0



Custom Bimetal Overload DC Motor Thermal Protection Device Switch HCET 5AP 2MP 1

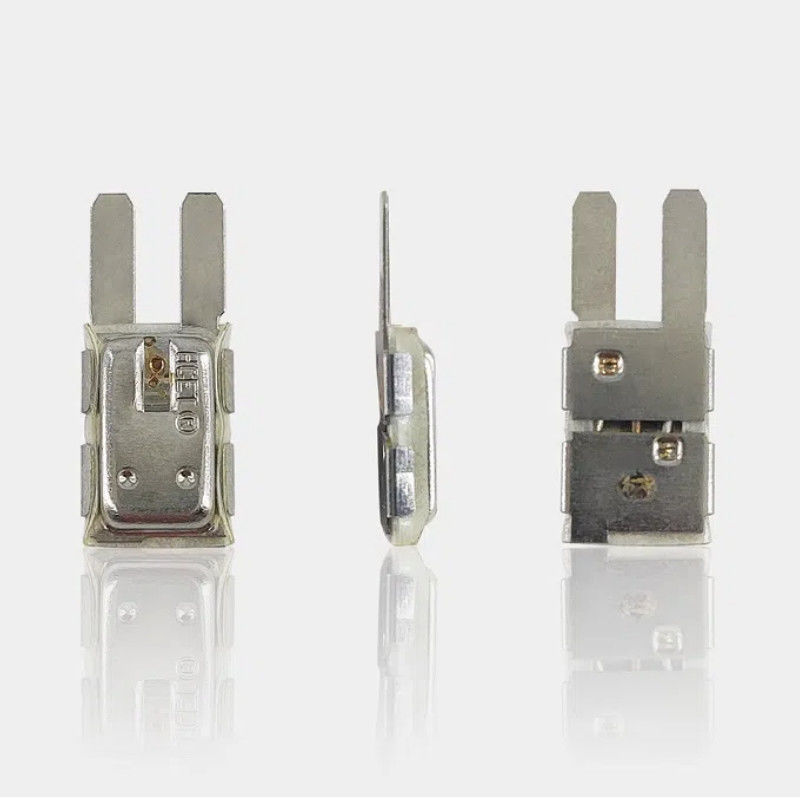

Product detail

Custom Bimetal Overload DC Motor Thermal Protection Device Switch HCET 5AP 2MP 2



Application

Custom Bimetal Overload DC Motor Thermal Protection Device Switch HCET 5AP 2MP 3
