HC02-B Bimetal Thermal Protector for Motor Overload Protection High-Precision Automotive Thermal Switch RoHS Certified for EPS Motor

Name: HC02-B Bimetal Thermal Protector for Motor Overload Protection High-Precision Automotive Thermal Switch RoHS Certified for EPS Motor
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: HC02-B
Availability: InStock

Brand Name:	HCET
Model Number:	HC02-B
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL, ROHS

Document:

HC02.pdf

Product Name:

HC02-B Motor Thermal Protector

Material:

Plastic Case

Temperature Range:

60~180℃

Tolerance:

±8℃,±10℃

Voltage:

250V AC/30V DC

Current:

Customizable

Application:

EPS Motor

Packaging Details:

10000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

bimetal ac thermal protector

motor ac thermal protector

motor bimetal thermal protector

Product Description

HC02-B Bimetal Thermal Protector for Motor Overload Protection High-Precision Automotive Thermal Switch RoHS Certified for EPS Motor

The HCET HC02 Series is a premium-grade bimetal thermal protector engineered to safeguard DC/AC motors and transformers from overheating,
overload, and short-circuit damage. With a customizable trip current range of 1-30A and an operating temperature range of 60℃-180℃
(±8℃/±10℃ tolerance), this compact yet robust device ensures precise thermal response (4-10s trip time). Certified to meet RoHS environmental
standards, the HC02 offers seamless compatibility with delivering durability (30,000+ cycles) and resistance to vibration, dust, and humidity.
Custom terminal configurations and trip settings available upon request.

Product feature:

Multi-Industry Protection
Reliably protects motors in automotive, industrial, and household applications from overload, locked rotor, and short-circuit failures.
Precision Engineering
- Adjustable trip current: 1-30A (DC 15V/30V, AC 125V/250V)
- Temperature accuracy: ±8℃/±10℃ tolerance
- Fast response: 4-10s trip time prevents motor burnout
Rugged & Compact Design
- High-temperature-resistant polymer housing (-40℃ to 180℃)
- Vibration-proof bimetal disc technology
- Ultra-slim profile for space-constrained installations
Certified Safety
Complies with RoHS , ensuring lead-free and hazardous substance-free construction.
Customization Ready
Tailor trip settings, terminal types (quick-connect/spade), and wire lengths to match OEM requirements.

Electrical Characteristics:

60℃~170℃ Operating temperature range, Customizable temperature.	4S~10S Special action time can be customized
±8°C, ±10℃ Temperature Tolerance	1A~30A The overload current tripping range can be customized according to customer's requirements.

1~30amps/15 volts DC 1~15amps/250 volts AC
1~15amps/30 volts DC 1~30amps/125 volts AC
Electrical characteristics

Dimension size

HC02-B Bimetal Thermal Protector for Motor Overload Protection High-Precision Automotive Thermal Switch RoHS Certified for EPS Motor 0

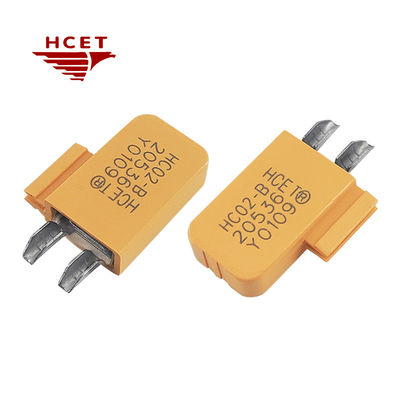

Product detail

HC02-B Bimetal Thermal Protector for Motor Overload Protection High-Precision Automotive Thermal Switch RoHS Certified for EPS Motor 1

Application

HC02-B Bimetal Thermal Protector for Motor Overload Protection High-Precision Automotive Thermal Switch RoHS Certified for EPS Motor 2
