HC02 Bimetallic Motor Thermal Protector High-Temperature Plastic Thermal Overload Switch for Seat adjustment motor

Name: HC02 Bimetallic Motor Thermal Protector High-Temperature Plastic Thermal Overload Switch for Seat adjustment motor
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: HC02-A
Availability: InStock

Brand Name:	HCET
Model Number:	HC02-A
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL, ROHS

Document:

HC02.pdf

Product Name:

HC02 Motor Thermal Protector

Material:

Plastic Case

Temperature Range:

60~180℃

Tolerance:

±8℃,±10℃

Voltage:

250V AC/30V DC

Current:

Customizable

Application:

Seat Adjustment Motor

Packaging Details:

20000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

bimetallic motor thermal protector

bimetallic motor thermal protection switch

switch motor thermal protector

Product Description

HC02 Bimetallic Motor Thermal Protector High-Temperature Plastic Thermal Overload Switch for Seat adjustment motor

The HCET HC02 is a precision-engineered bimetallic motor overload protector designed to safeguard motors and transformers

from overheating, overloads, and short circuits. Engineered as a direct replacement for Otter series protectors, this compact,

high-temperature plastic switch combines dual sensitivity to temperature and current, ensuring reliable protection for automotive

systems (e.g., window motors, wipers, sunroofs), HVAC equipment, industrial machinery, and home appliances. With customizable

trip currents (1-30A) and temperature thresholds (60-180°C ±8°C), the HC02 delivers precise tripping in 4-10 seconds, preventing

motor burnout while meeting strict RoHS compliance for global markets.

Product feature:

Dual Protection Technology
- Bimetallic Actuation: Responds to both overheating (60-180°C) and overcurrent (1-30A) for comprehensive motor protection.
- Fast & Precise Tripping: 4-10 second response time prevents thermal damage during stalls or overloads.
Compact & Durable Design
- High-temperature-resistant plastic housing (up to 200°C) ensures reliability in harsh environments.
- Ultra-small footprint ideal for space-constrained automotive and HVAC installations.
Customizable Performance
- Adjustable trip current (1-30A) and temperature (±8°C tolerance) tailored to OEM requirements.
- Supports AC/DC voltages (15-250V) for versatile applications.
Global Compliance & Longevity
- RoHS-certified materials meet EU environmental standards.
- 30,000+ cycles lifespan for reduced maintenance costs.
Industry-Specific Applications
- Automotive: Window lifters, sunroof motors, wiper systems, sliding door actuators.
- Industrial: Pumps, compressors, conveyor belt motors.
- Consumer: HVAC fans, refrigeration units, power tools.

Electrical Characteristics:

60℃~170℃ Operating temperature range, Customizable temperature.	4S~10S Special action time can be customized
±8°C, ±10℃ Temperature Tolerance	1A~30A The overload current tripping range can be customized according to customer's requirements.

1~30amps/15 volts DC 1~15amps/250 volts AC
1~15amps/30 volts DC 1~30amps/125 volts AC
Electrical characteristics

Dimension size

HC02 Bimetallic Motor Thermal Protector High-Temperature Plastic Thermal Overload Switch for Seat adjustment motor 0

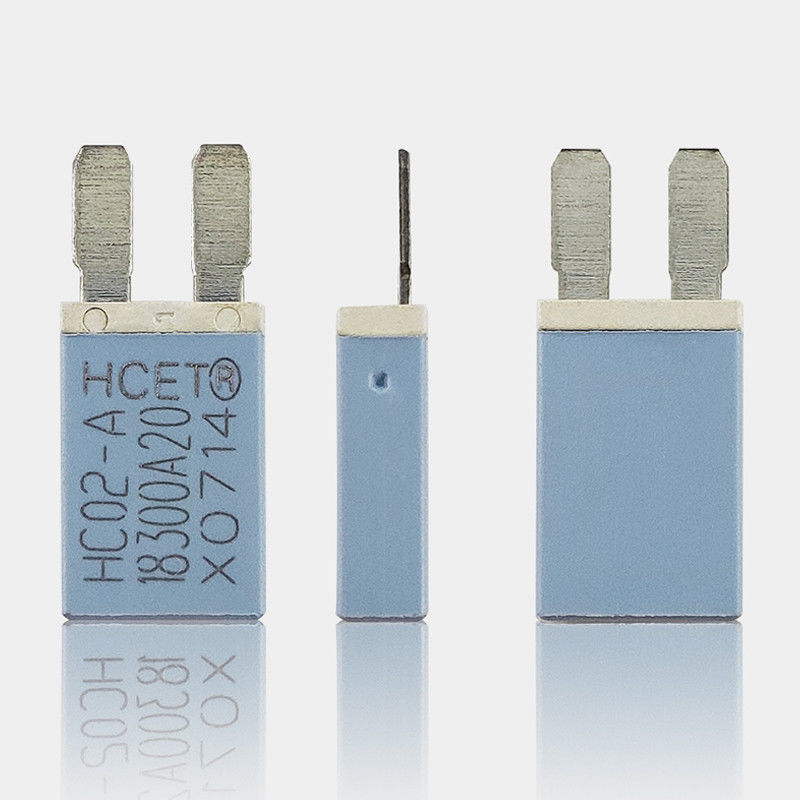

Product detail

HC02 Bimetallic Motor Thermal Protector High-Temperature Plastic Thermal Overload Switch for Seat adjustment motor 1

Application

HC02 Bimetallic Motor Thermal Protector High-Temperature Plastic Thermal Overload Switch for Seat adjustment motor 2
