30V DC Motor Thermal Protector Cutoff Switch overload protection devices Dual Sensitive

Name: 30V DC Motor Thermal Protector Cutoff Switch overload protection devices Dual Sensitive
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: HC18/8AM
Availability: InStock

Brand Name:	HCET
Model Number:	HC18/8AM
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS, UL, TUV, CE

Document:

HC18 8AM.pdf

Product Name:

8AM Motor Thermal Protector

Material:

Metal Case

Temperature Range:

80~180℃

Tolerance:

±8℃,±5℃

Voltage:

30V DC / 250V AC

Current:

Customizable

Application:

Automotive Motors & Transformers

Packaging Details:

8000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

30V DC Motor Thermal Protector

Dual Sensitive Motor Thermal Protector

30V motor overload protection devices

Product Description

HCET HC18/8AM Dual-Sensitive Motor Overload Protector 15-60A Thermal Cutoff Switch for Automotive Motors & Transformers

HCET HC18/8AM series advanced thermal overload protectors are engineered to provide dual-sensitive protection for motors and transformers against both overheating and excessive current. With a robust 15-60A fault tolerance and precision temperature calibration (80-180°C ±5/8°C), this thermal cutoff switch ensures rapid response within 4-10 seconds.

Product feature:

Dual Protection Technology
Temperature & current-sensitive design prevents motor burnout from both overheating (up to 180°C) and overloads (60A max).
High-Current Resilience
Handles surge currents up to 60A at 250VAC, validated through 10,000-cycle endurance testing.
Precision Response
Factory-calibrated thermal discs with ±5°C tolerance ensure trip accuracy (±8% current variance) for critical applications.
Multi-Voltage Compatibility
Operates seamlessly across 12-24VDC automotive systems and 125-250VAC industrial equipment.
Fast-Acting Protection
4-10 second trip time prevents winding damage in motors and transformers.

Electrical Characteristics:

80℃~180℃ Operating temperature range, Customizable temperature.	4S~10S Special action time can be customized
±5°C, ±8℃ Temperature Tolerance	15A~60A The overload current tripping range can be customized according to customer's requirements.

15 volts DC/30 volts DC : 1~60amps

125 volts AC /250 volts AC: 1~60amps
Electrical characteristics

Dimension size

30V DC Motor Thermal Protector Cutoff Switch overload protection devices Dual Sensitive 0

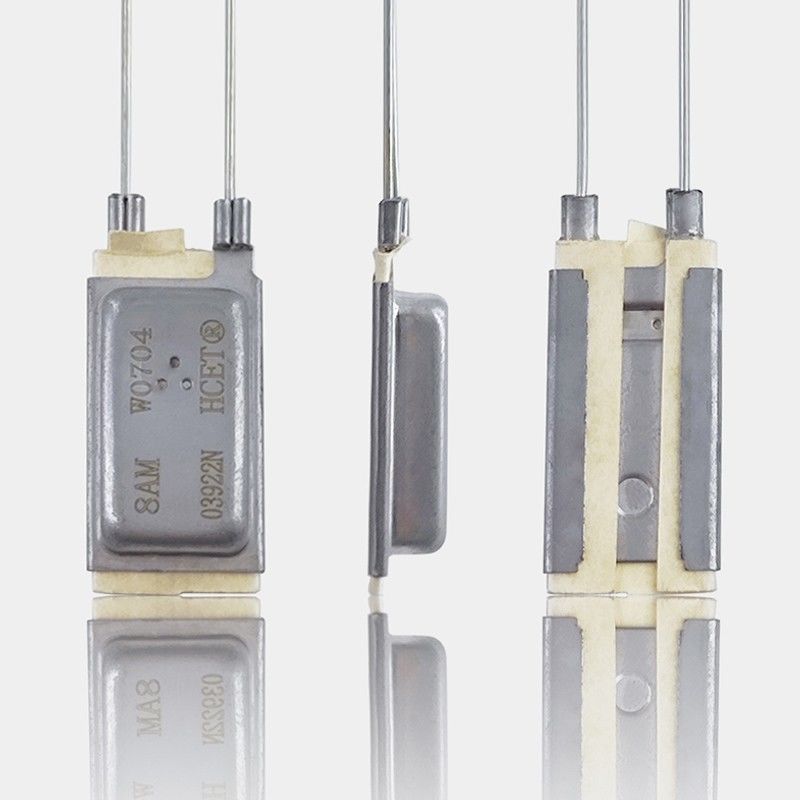

Product detail

30V DC Motor Thermal Protector Cutoff Switch overload protection devices Dual Sensitive 1

Application

30V DC Motor Thermal Protector Cutoff Switch overload protection devices Dual Sensitive 2
