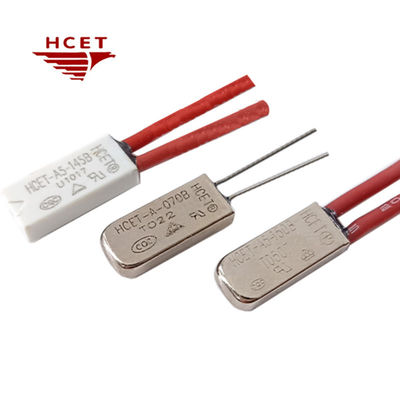

TB05 KSD9700 Temperature Switch Bimetal Thermal Cutoff Protector 10A

Name: TB05 KSD9700 Temperature Switch Bimetal Thermal Cutoff Protector 10A
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: HCET-A5
Availability: InStock

Brand Name:	HCET
Model Number:	HCET-A5
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CQC, UL, TUV, CE, ROHS

Document:

tb05.pdf

Product Name:

TB05/KSD9700 Thermal Switch

Material:

Plastic Or Metal

Temperature Range:

35℃~160C

Tolerance:

±3℃,±5℃

Voltage:

250V

Current:

5A/10A

Application:

Rechargeable Battery Pack

Packaging Details:

5000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

ksd9700 temperature switch Protector

10A ksd9700 temperature switch

10A ksd9700 thermal protector

Product Description

HCET TB02 TB05 KSD9700 V8AM Bimetal Thermostat for the Power Line 250V 6A 95 Degrees Temperature Switch

The HCET KSD9700/TB05 is a precision-engineered bimetal thermal cutoff switch designed for critical circuit protection in industrial and consumer applications. As a temperature and current-sensitive safety device, it ensures reliable overload protection for motors, rechargeable battery packs, HVAC systems, and home appliances. With snap-action bimetal disc technology, this compact thermal protector delivers instant circuit interruption at calibrated temperatures (35°C-160°C ±3°C/±5°C), preventing equipment damage from overheating or overcurrent conditions.

Product feature:

High-Capacity Performance
- 8A 24VDC / 6A 250VAC / 8A 125VAC rating
- Silver-nickel alloy contacts for arc resistance
Multi-Industry Compliance
- UL, CE, RoHS certified components
- IP67 optional for harsh environments
Precision Thermal Management
- Automotive-grade bimetal disc with <1% failure rate
- Withstands 10,000+ operational cycles

Electrical Characteristics:

35℃~160C
Temperature Range(Customizable temperature, please contact us.)

±3°℃, ±5℃
Temperature Tolerance

8amps/24 volts DC
6amps/250 volts AC
8amps/125 volts DC
Electrical Specifications

Dimension size

TB05 KSD9700 Temperature Switch Bimetal Thermal Cutoff Protector 10A 0

TB05 KSD9700 Temperature Switch Bimetal Thermal Cutoff Protector 10A 1

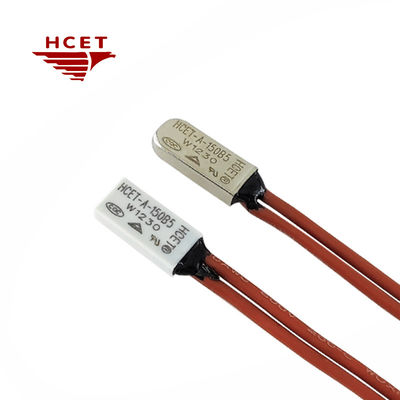

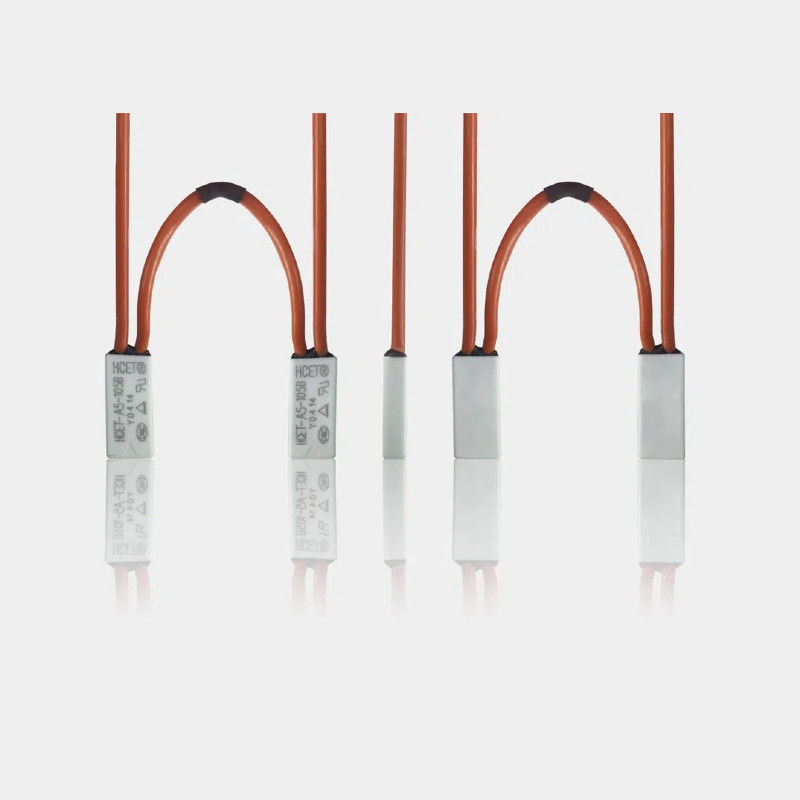

Product detail

TB05 KSD9700 Temperature Switch Bimetal Thermal Cutoff Protector 10A 2

TB05 KSD9700 Temperature Switch Bimetal Thermal Cutoff Protector 10A 3

Application

TB05 KSD9700 Temperature Switch Bimetal Thermal Cutoff Protector 10A 4
