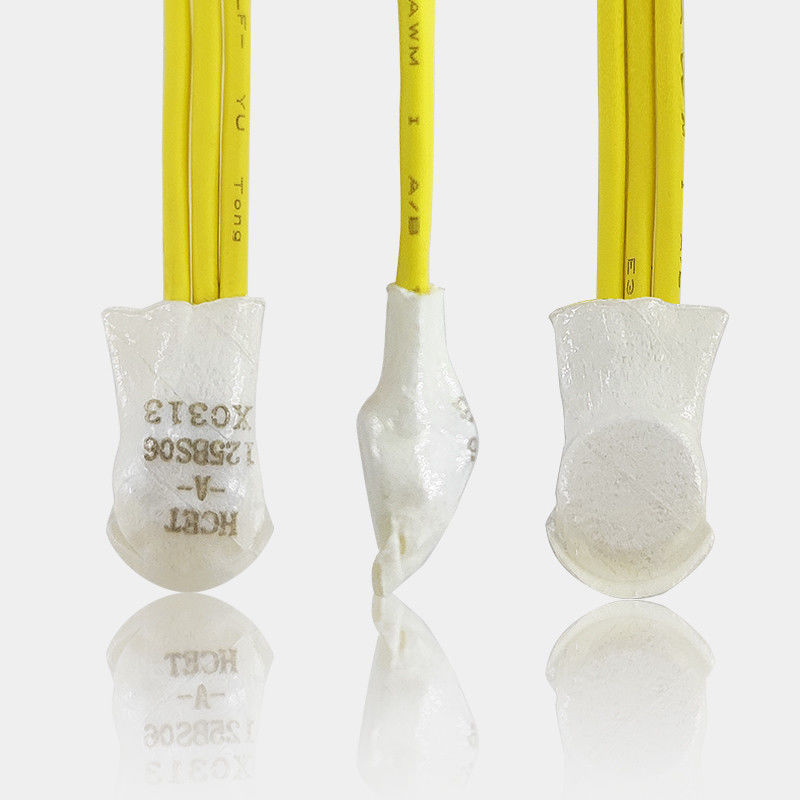

Compact HCET S01/S06 Thermal Overload Switch Electric Motor Thermostat 5A-6A

Name: Compact HCET S01/S06 Thermal Overload Switch Electric Motor Thermostat 5A-6A
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: HCET-A
Availability: InStock

Brand Name:	HCET
Model Number:	HCET-A
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CQC, UL, TUV, CE, ROHS

Document:

S01.pdf

Product Name:

S01 Thermal Switch

Voltage:

250V

Current:

Temperature Range:

30~155℃

Tolerance:

±3℃,±5℃

Material:

Plastic Case

Application:

Heating Pads, Tubular Motors & Transformers

Packaging Details:

5000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

HCET S01 thermal overload switch electric motor

Compact thermal overload switch electric motor

thermal overload protection switch Thermostat

Product Description

Compact HCET S01/S06 Thermal Overload Switch Electric Motor Thermostat 5A-6A

Product Specifications

Attribute	Value
Product name	S01 thermal switch
Voltage	250V
Current	5A
Temperature range	30~155℃
Tolerance	±3℃,±5℃
Material	plastic case
Application	Heating Pads, Tubular Motors & Transformers

Product Description

The S01/S06 Bimetallic Temperature Control Switch is a self-heating-minimized thermal protector designed for precise temperature management in low to medium power applications. Engineered with a pressure-stable bimetal disc mechanism, it maintains consistent contact force across its operating range (-30°C to +200°C), ensuring reliable switching temperatures within ±5℃ tolerance even at full nominal loads. Optimized for embedding into windings or confined spaces. Ideal for heating systems (pet pads, electric blankets), electromechanical devices (tubular motors, coils), and power equipment (transformers).

Key Features

Zero Thermal Interference Design - Self-heating ≤0.3°C at 6A load, ensuring switching accuracy remains within ±5℃.
Arc Suppression Technology - Snap-action bimetal disc achieves <3ms break time, reducing contact erosion even at 6A/125VAC inductive loads.
Broad Temperature Customization - Factory pre-set calibration from 50°C to 200°C (5°C increments), with optional on-site recalibration service.
Vibration-Resistant Contacts - Silver alloy contacts maintain 10,000+ cycles at rated current (6A DC).

Electrical Characteristics

Temperature Range:

30°C~155℃ (Customizable temperature, please contact us)

Temperature Tolerance:

±3°C, ±5℃

Electrical Specifications:

5A/250V AC | 6A/125V AC | 6A/24V DC

Dimensions

Dimensional drawing of HCET S01/S06 Thermal Switch

Product Details

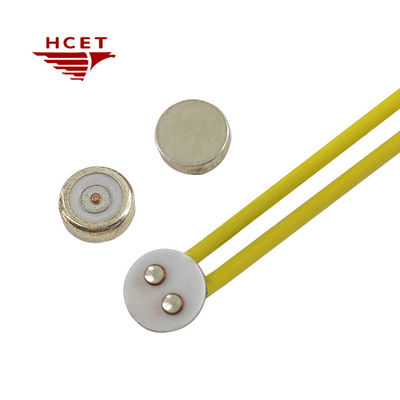

Detailed view of thermal switch components

Application Examples

Typical applications in heating systems and electromechanical devices
