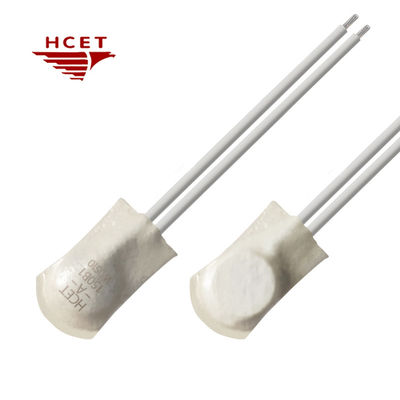

HCET S01/S06 Precision Windings Motor Thermal Protection Switch 8A Round Temperature Sensor

Name: HCET S01/S06 Precision Windings Motor Thermal Protection Switch 8A Round Temperature Sensor
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: HCET-A
Availability: InStock

Brand Name:	HCET
Model Number:	HCET-A
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CQC, UL, TUV, CE, ROHS

Document:

S01.pdf

Product Name:

S01 Thermal Switch

Voltage:

250V

Current:

Temperature Range:

30~155℃

Tolerance:

±3℃,±5℃

Material:

Plastic Case

Application:

Heating Pads And Motor Windings

Packaging Details:

5000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

HCET S01 motor thermal protection switch

8A motor thermal protection switch

8A klixon temperature sensor

Product Description

HCET S01/S06 Precision Windings Motor Thermal Protection Switch 8A Round Temperature Sensor

Product Specifications

Product name	S01 thermal switch
Voltage	250V
Current	5A
Temperature range	30~155℃
Tolerance	±3℃,±5℃
Material	Plastic case
Application	Heating Pads and Motor Windings

Precision Thermal Protection Solution

The S01/S06 series is a precision-engineered bimetallic temperature control switch designed for applications requiring minimal self-heating interference. With thermal drift of less than 0.5°C under full 8A load, it maintains consistent switching accuracy (±5℃) across its broad operational range (50°C to 200°C).

The switch's pressure-stable bimetal disc ensures <3ms snap-action response, effectively suppressing arc formation even at 6A/125VAC inductive loads. Its compact, cylindrical design enables direct embedding into motor windings, transformer coils, or heating element cavities.

Key Features

True Temperature Accuracy: Patented bimetal compensation technology with self-heating ≤ 0.3°C (6A full load) ensures switching temperature remains unaffected by load fluctuations.
Anti-Arcing Reinforcement: Silver tin oxide (AgSnO₂) contacts with nitrogen sealed chamber design reduces arc energy by 62% compared to traditional silver nickel contacts.
Direct Winding Integration: Compact diameter construction supports axial/radial lead configurations for direct insertion into motor windings.
Wide-Range Customization: Standard temperature points from 50°C to 200°C (in 5°C steps) with ±3°C high-precision customization available (MOQ 1000pcs).

Electrical Characteristics

Temperature Range	30℃~155℃ (Customizable temperature, please contact us)
Temperature Tolerance	±3℃, ±5℃
Electrical Specifications	5A/250V AC 6A/125V AC 6A/24V DC

Product Dimensions

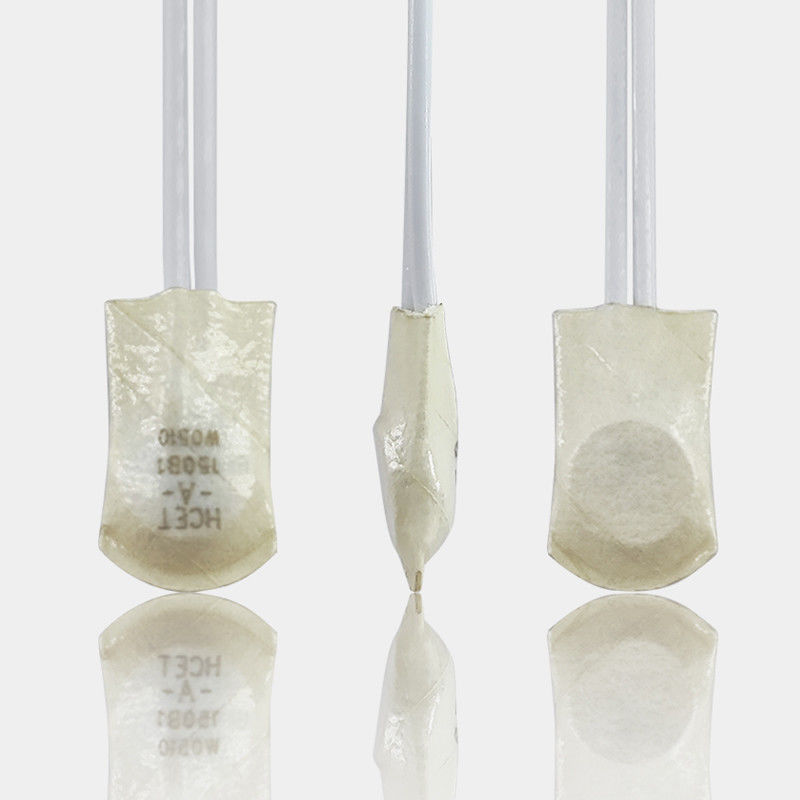

Product Details

Application Examples
