250V 2.5A Temperature Control Bi Metal Thermal Protector Switch ODM

Name: 250V 2.5A Temperature Control Bi Metal Thermal Protector Switch ODM
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: HCET-A
Availability: InStock

Brand Name:	HCET
Model Number:	HCET-A
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CQC, UL, TUV, CE, ROHS

Document:

HCET-A.pdf

Product Name:

Thermal Protcetion Switch

Voltage:

250V

Current:

2.5A

Temperature Range:

30~155℃

Tolerance:

±3℃,±5℃

Material:

Plastic Case

Application:

Household Electric Appliances

Packaging Details:

5000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

250V bimetal thermal protector

ODM bimetal thermal protector

250V bi metal switch

Product Description

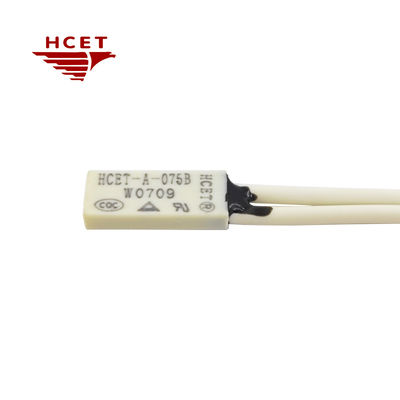

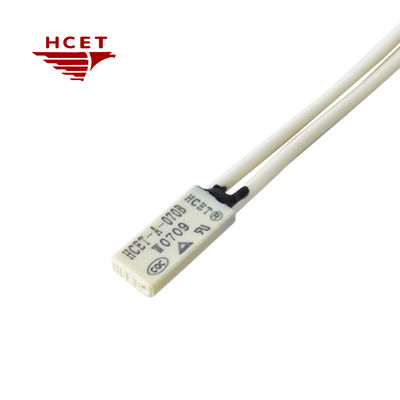

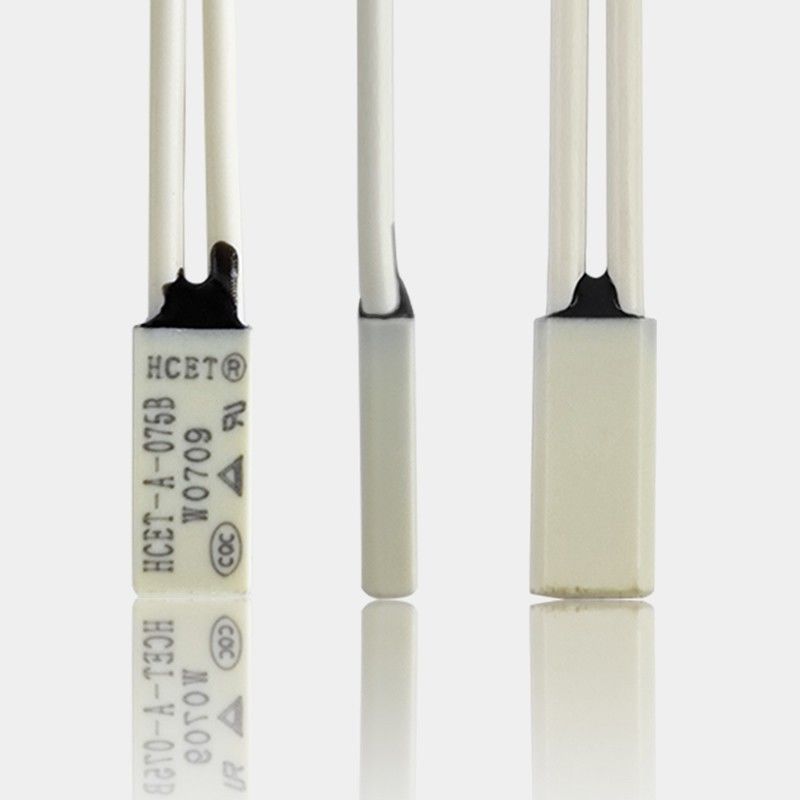

250V 2.5A Temperature Control Bi Metal Thermal Protector Switch

Product Overview

The HCET-A Series Thermal Protection Switch is a high-precision temperature control module designed specifically for household appliances. Utilizing advanced bimetal sensing technology, it provides real-time temperature monitoring and automatic circuit interruption to prevent equipment malfunction or safety hazards caused by overheating or overcooling.

Key Specifications

Product Name	Thermal Protection Switch
Voltage	250V
Current	2.5A
Temperature Range	30~155℃ (customizable)
Tolerance	±3℃, ±5℃
Material	Flame Retardant PBT Plastic Case
Application	Household Electric Appliances

Product Features

Precision Temperature Control: High-sensitivity bimetal technology with ±3°C accuracy and fast response time
Dual Safety Mechanism: Automatic power cutoff at abnormal temperatures prevents equipment damage and fire hazards
Enhanced Durability: UL, TUV, and ROHS certified with 30,000+ operation cycles
Versatile Installation: Supports plug-in or terminal wiring options for easy integration

Electrical Characteristics

Temperature Range	30℃~155℃ (Customizable)
Temperature Tolerance	±3℃, ±5℃
AC Specifications	2.5A/250V AC, 5A/120V AC
DC Specifications	10A/12V DC, 5A/24V DC

Product Dimensions

Product Details

Typical Applications
