17AM Bimetal Motor Thermal Protection Switch Motor Overload Switch

Name: 17AM Bimetal Motor Thermal Protection Switch Motor Overload Switch
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: 17AM
Availability: InStock

Brand Name:	HCET
Model Number:	17AM
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CQC, UL, ROHS, TUV, CE

Document:

17AM.pdf

Product Name:

17AM Thermal Protector

Temperature Range:

50~180℃

Tolerance:

±3℃,±5℃

Voltage:

250V

Current:

<10A

Material:

Metal

Feature:

Snap Action Switch

Application:

Lawn Mowers

Packaging Details:

5000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

17AM motor thermal protection switch

Overload motor thermal protection switch

17AM thermal motor switch

Product Description

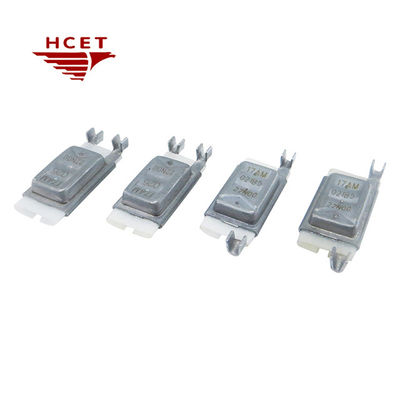

17AM Bimetal Motor Thermal Protection Switch

Product Specifications

Attribute	Value
Product name	17AM thermal protector
Temperature range	50~180℃
Tolerance	±3℃,±5℃
Voltage	250V
Current	<10A
Material	Metal
Feature	Snap action switch
Application	Lawn Mowers

Product Overview

The HCET 17AM Bimetal Thermal Protector is a precision-engineered, dual-sensitive (temperature and current) safety device designed for industrial and commercial applications requiring reliable motor overload protection. As a direct replacement for Klixon 7AM, this thermal switch combines a compact design with a high 10A/250V AC capacity, ensuring optimal performance in demanding environments.

Crafted for durability, the 17AM protector features snap-action technology to prevent overheating in motors, compressors, HVAC systems, and power tools. Its 100% temperature-calibrated bimetal strip guarantees ±3℃ accuracy, while RoHS compliance meets global environmental standards.

Key Features

Dual-Sensitive Protection: Responds instantly to both excessive temperature (50℃-180℃) and overcurrent conditions.
Precision Engineering: Factory-calibrated bimetal strip with ±3℃ tolerance ensures reliable thermal cutoff.
Snap-Action Mechanism: Fast-disconnect design minimizes arcing and prolongs equipment lifespan.

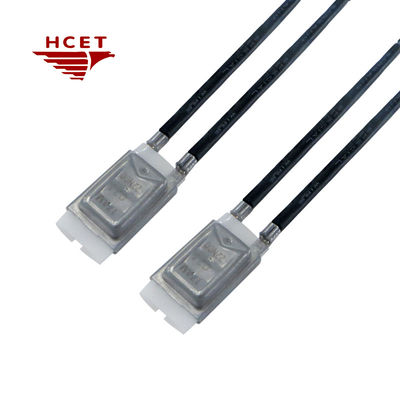

Customizable Options: Choose wire types (PVC/SR/SI), lengths, and terminal orientations (same/opposite end).

Electrical Characteristics

Temperature Range: 50℃~180℃ (Customizable temperature available)

Temperature Tolerance: ±3℃, ±5℃

Electrical Specifications: 20amps/16volts DC, 20amps/125 volts DC, 10amps/250volts AC

Product Dimensions

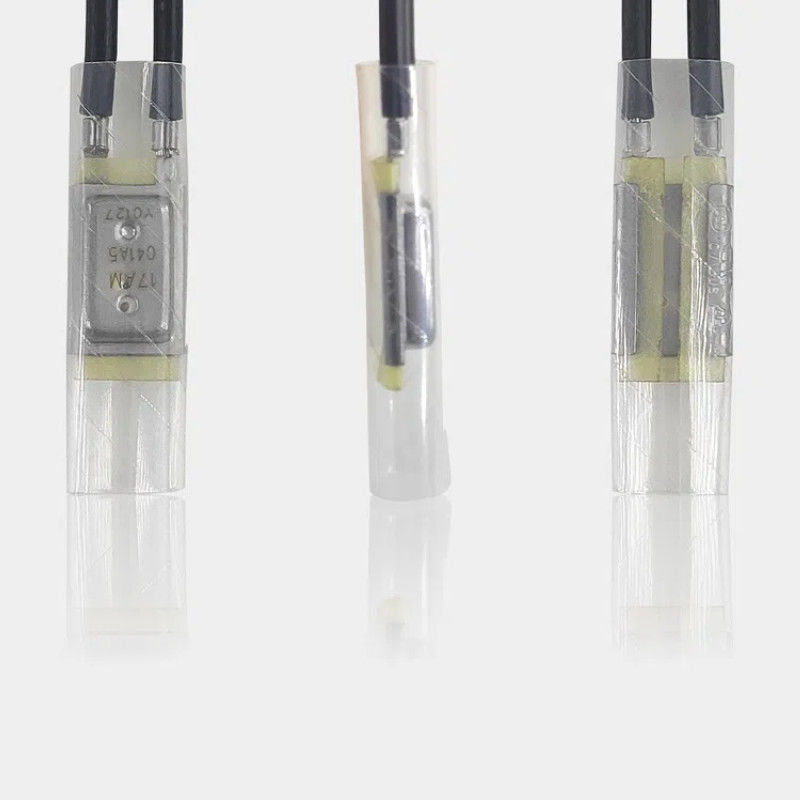

Product Details

Typical Applications
