| MOQ: | 1000pcs |

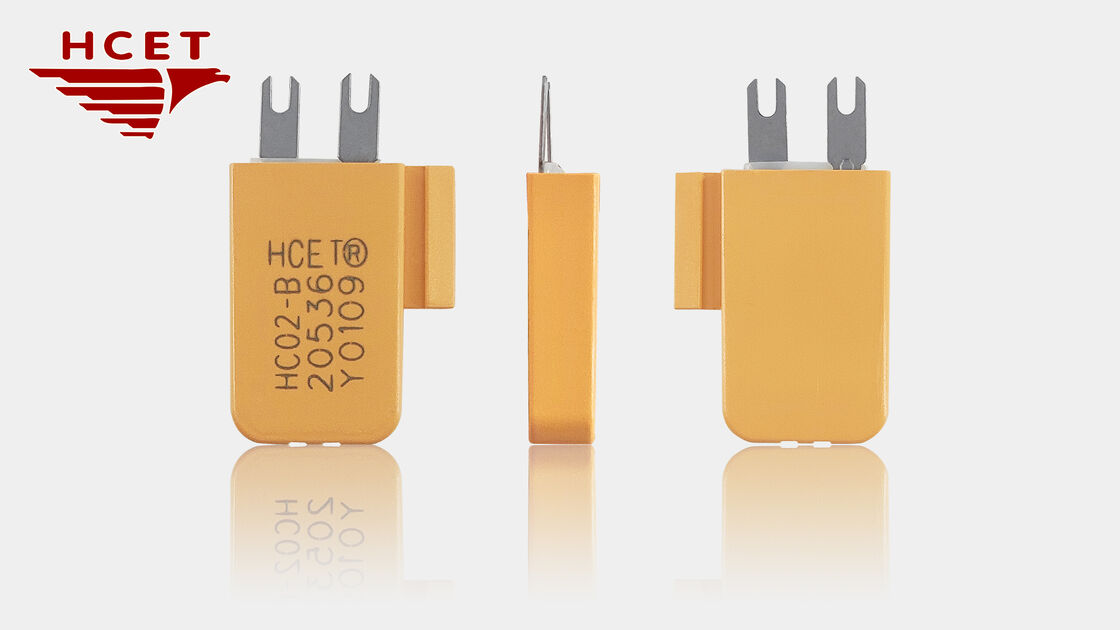

The shell of HC02 series overload (overcurrent) protector is designed as a high-temperature resistant plastic shell, which is a precise protection element with over-temperature protection function and precise control of current overload. It can effectively prevent the damage caused by excessive temperature and current (motor, transformer, etc.). A variety of enclosures, a variety of wires for your choose!
Ideal for: Protecting electrical components in various industrial and commercial applications where precise current and temperature monitoring is crucial.
| Attribute | Value |
|---|---|
| Electrical Specifications | |
| 1~30 Amps / 15 Volts DC | |
| 1~15 Amps / 30 Volts DC | |
| 1~15 Amps / 250 Volts AC | |
| 1~30 Amps / 125 Volts AC | |
| Technical Parameter | |
| Action Temperature | From 60°C - 180°C (Every 5°C a specification. Temperature is optional and customized.) |
| Temperature Tolerance | ±8℃, ±10℃ |
| Trip Off Current Range | 1-30A |
| Trip Off Time | 4-10s |
