| MOQ: | 1000pcs |

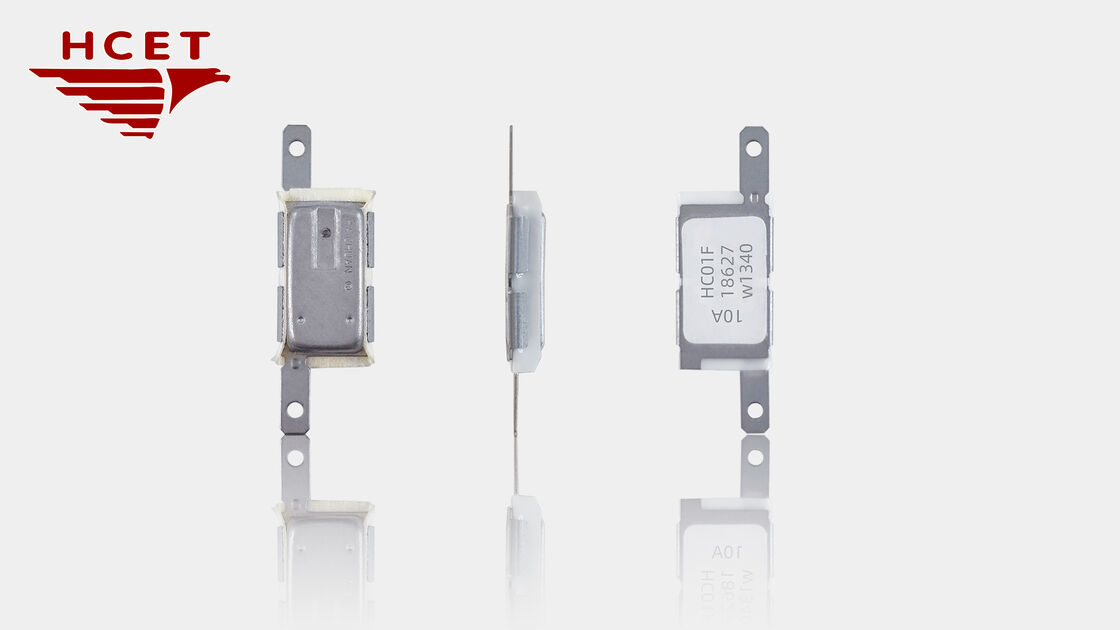

The HC01(6AP) thermal switch is ingeniously designed to be actuated by both the current passing through it and the ambient temperature it is exposed to. This dual-sensitivity mechanism ensures precise and reliable operation in a wide range of conditions. A variety of standard terminal configurations are available to allow for the easiest mounting and handling, making integration into your systems seamless.
Ideal for motor protection, heating elements, transformers, lighting systems, and various other industrial equipment requiring sensitive thermal and current overload protection.
| Parameter | Value |
|---|---|
| Electrical Specifications | 45 Amps / 15 Volts DC |
| Electrical Specifications | 15 Amps / 30 Volts DC |
| Electrical Specifications | 28 Amps / 250 Volts AC |
| Electrical Specifications | 30 Amps / 125 Volts AC |
| Action Temperature | 30℃ - 180℃ (Optional and Customized) |
| Temperature Tolerance | ±5℃, ±8℃, ±10℃ |
| Trip Off Current Range | 1 - 45A |
| Trip Off Time | 4 - 10 seconds |
