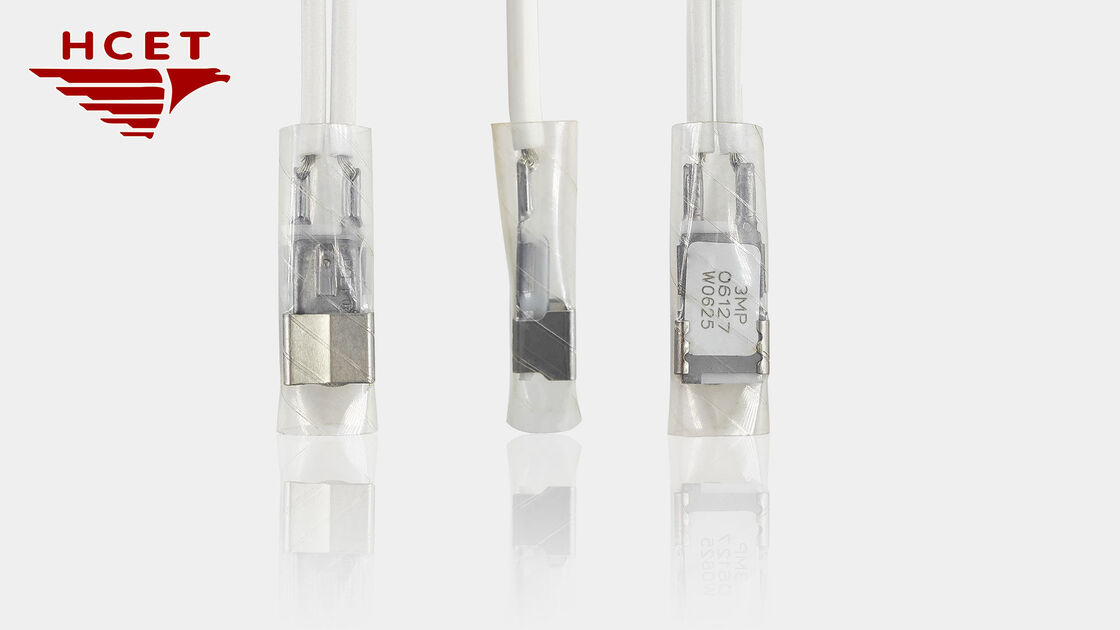

The 3MP current overload protector offers advanced overheating and precise current overload time protection. Designed for enhanced safety, it requires power to be disconnected before connection and features a manual reset function.
Small footprint with manual reset functionality.
Safeguards against overload, plugging, and short circuits.
Accurate trip-off times (4-10s) prevent motor overheating.
Compliant with European ROHS environmental standards.
Ideal for: Various motor applications requiring reliable overload and overheating protection.
| Parameter | Value | Details | Range/Notes |
|---|---|---|---|
| Model | HCET 3MP Self-hold Motor protector | ||
| Electrical Specifications | 45 Amps | DC | 15 Volts |
| 15 Amps | DC | 30 Volts | |
| 25 Amps | AC | 250 Volts | |
| 30 Amps | AC | 125 Volts | |
| Action Temperature Range | 30°C - 180°C | Every 5°C specification | Optional & Customized |
| Temperature Tolerance | ±5℃, ±8℃, ±10℃ | ||
| Trip Off Current Range | 1 ~ 45A | Customizable | |
| Time Check (at T-ambient 25℃) | 4 ~ 10s |
