Motor Thermal Protector
Created with Pixso. HCET 3MP Bimetal Temperature Bimetallic Thermal Overload Protection Switch For Motor Automotive

HCET 3MP Bimetal Temperature Bimetallic Thermal Overload Protection Switch For Motor Automotive

Brand Name: HCET
Model Number: 3MP
MOQ: 1000
Price: please contact us
Delivery Time: 5-7 work days
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
ROHS
Document:
Material:
Metal Case
Temperature Range:
30~180℃
Tolerance:
±8℃,±5℃
Voltage:
30V DC / 250V AC
Current:
Customizable
Temperature Tolerance:
±5°C
Application:
Automotive/Industrial Equipment
Packaging Details:
20000 pcs per carton
Supply Ability:
10000000 pcs per month
Highlight:

Thermal overload switch motor Automotive

,

Bimetallic thermal overload protection switch

,

HCET 3MP bimetal temperature switch

Product Description

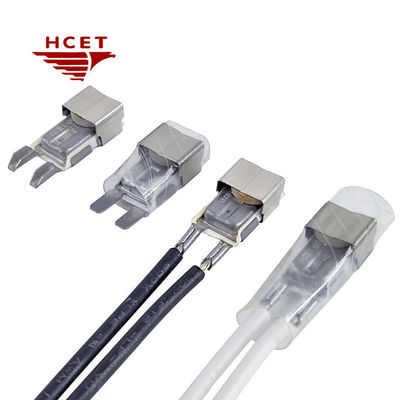

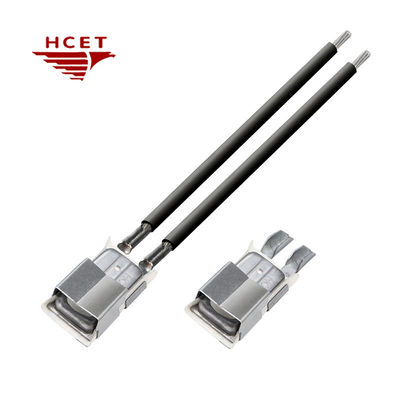

HCET 3MP Bimetal Temperature Bimetallic Thermal Overload Protection Switch
Product Specifications
Attribute Value
Material Metal Case
Temperature Range 30~180℃
Tolerance ±8℃,±5℃
Voltage 30V DC / 250V AC
Current Customizable
Temperature Tolerance ±5°C
Application Automotive/Industrial Equipment
Next-Generation Motor Protection Technology

The HCET 3MP Series represents a breakthrough in bimetal thermal protection, delivering precision safety for high-load motor systems in automotive window lifts, door locks, and industrial applications. Our UL-listed bimetal technology outperforms traditional fuses with cycling protection that automatically resets after fault conditions subside.

Key Advantages
  • Faster Response
  • Wider Protection Range
  • Dual-Layer Safety
Applications
  • Power window lift systems
  • Door lock actuators
  • Seat adjustment motors
  • HVAC blower motors
  • Industrial automation drives
Technical Specifications
Operating Temperature Range
30℃~180℃ (Customizable)
Action Time
4S~10S (Customizable)
Temperature Tolerance
±5°C, ±8℃
Current Range
1A~45A (Customizable)
Electrical Characteristics
45amps/15 volts DC
15amps/30 volts DC
25amps/250 volts AC
30amps/125 volts AC
Compliance & Features
  • RoHS Compliant
  • Quick-connect terminal models available
  • Flying lead wire versions
  • Custom bracket mounting solutions
Technical Support Services
  • Cross-reference compatibility checking
  • Failure mode analysis reports
  • Custom calibration services
  • On-site validation testing
Dimensions
HCET 3MP Bimetal Temperature Bimetallic Thermal Overload Protection Switch For Motor Automotive 0
