High Accuracy PT100 PT1000 Temperature Sensors Platinum Resistance Probe Detector

Name: High Accuracy PT100 PT1000 Temperature Sensors Platinum Resistance Probe Detector
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: PT1000
Availability: InStock

Brand Name:	HCET
Model Number:	PT1000
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

PT1000 Temperature Sensor

Temperature Range:

-50℃~200℃

Response Time:

0~6s

Wire:

Customizable

Application:

Industrial Control Systems

Packaging Details:

500 pcs per carton

Supply Ability:

1000000 pcs per month

Highlight:

PT100 PT1000 Detector

Platinum Resistance PT100 PT1000

Platinum resistance temperature detector pt100

Product Description

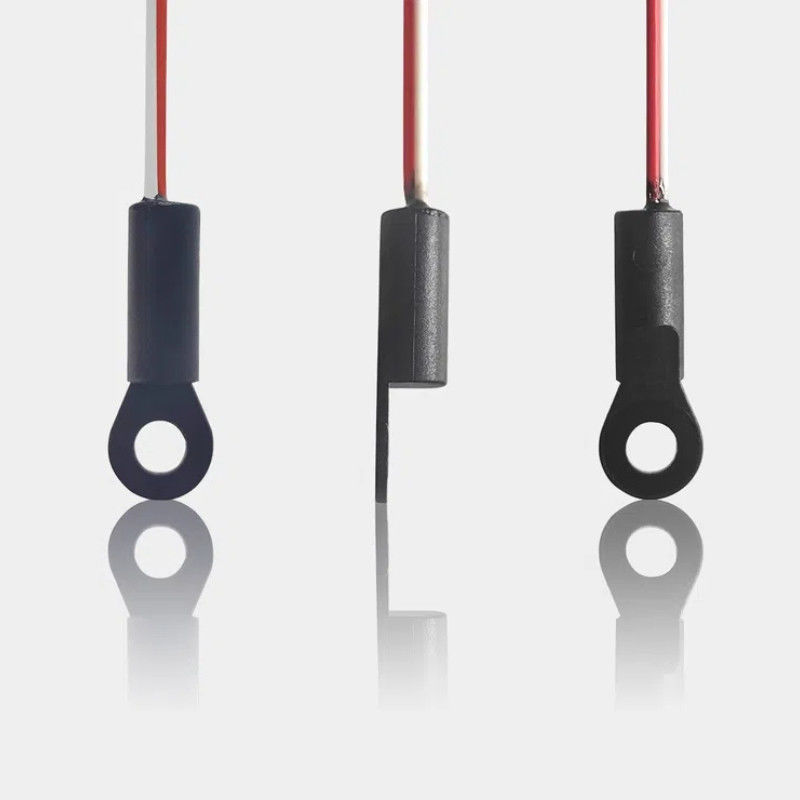

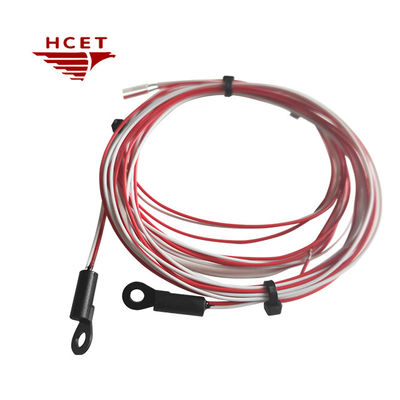

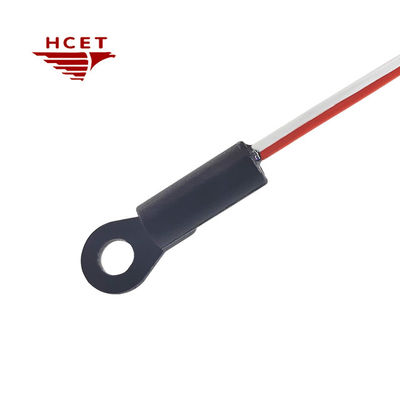

PT1000 High Accuracy Temperature Sensors Customizable Platinum Resistance Probe Housings

Designed for harsh industrial environments, the PT1000 temperature sensor utilizes a Class A precision platinum resistance element. Customizable sheath package, suitable for high temperature and pressure, humidity or corrosive scenes. Supports 4-wire connection, eliminates wire resistance errors, and integrates into PLC, DCS and other industrial control systems.

Product feature:

Class A Precision PT1000: 1000Ω resistance at 0°C, 3.85Ω/°C sensitivity, error as low as ±0.1°C
Industrial-grade durable design: customized sheath + ceramic insulated core, 10MPa pressure resistance, shock and vibration resistance
Wide Temperature Measurement: covering -200°C to +600°C, suitable for extreme temperature monitoring (e.g., boilers, refrigeration equipment)
Plug-and-play Compatibility: customizable 4 Plug-and-play compatibility: customizable 4-wire wiring for seamless integration into industrial automation systems

Electrical Characteristics:

-50℃~200℃

Control temperature range, customizable temperature, contact us.

0~6s

When the water flow rate is 0.2m/sec and the protective tube is 4mm.

2-wire/3-wire/4-wire

Various lengths, single or multiple cores available on request.

Dimension size

High Accuracy PT100 PT1000 Temperature Sensors Platinum Resistance Probe Detector 0

Product detail

High Accuracy PT100 PT1000 Temperature Sensors Platinum Resistance Probe Detector 1

Application

High Accuracy PT100 PT1000 Temperature Sensors Platinum Resistance Probe Detector 2
