Medical Grade PT100 Temperature Sensor Probe High Sensitivity Monitor OEM

Name: Medical Grade PT100 Temperature Sensor Probe High Sensitivity Monitor OEM
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: PT100
Availability: InStock

Brand Name:	HCET
Model Number:	PT100
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

PT100 Temperature Sensor

Temperature Range:

-50℃~200℃

Response Time:

0~6s

Wire:

Customizable

Application:

Ventilator & Incubator

Packaging Details:

500 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

pt100 temperature sensor Probe

OEM pt100 temperature sensor

OEM pt100 temperature probe

Product Description

Medical Grade PT100 Temperature Probe High Sensitivity Temperature Monitoring

High sensitivity PT1000 temperature sensor developed specifically for medical and laboratory use, using biocompatible epoxy resin package, safe contact with the human body and biological samples. 0.05°C resolution, fast response to temperature changes, suitable for respiratory machines, constant temperature incubators, vaccine cold chain monitoring and other scenarios. Flexible silicone cable + miniature probe design, combining durability and accurate measurement.

Product feature:

Ultra-high resolution: 0.05°C micro-temperature difference detection, suitable for precision medical equipment
Biocompatible materials: epoxy resin probe, corrosion and aging resistance, suitable for human contact
Fast response time: <0.5 seconds (in water), real-time monitoring of dynamic temperature changes
Flexible installation: miniature probes (2mm diameter) + bending-resistant silicone cable, suitable for narrow spaces

Electrical Characteristics:

-50℃~200℃

Control temperature range, customizable temperature, contact us.

0~6s

When the water flow rate is 0.2m/sec and the protective tube is 4mm.

2-wire/3-wire/4-wire

Various lengths, single or multiple cores available on request.

Dimension size

Medical Grade PT100 Temperature Sensor Probe High Sensitivity Monitor OEM 0

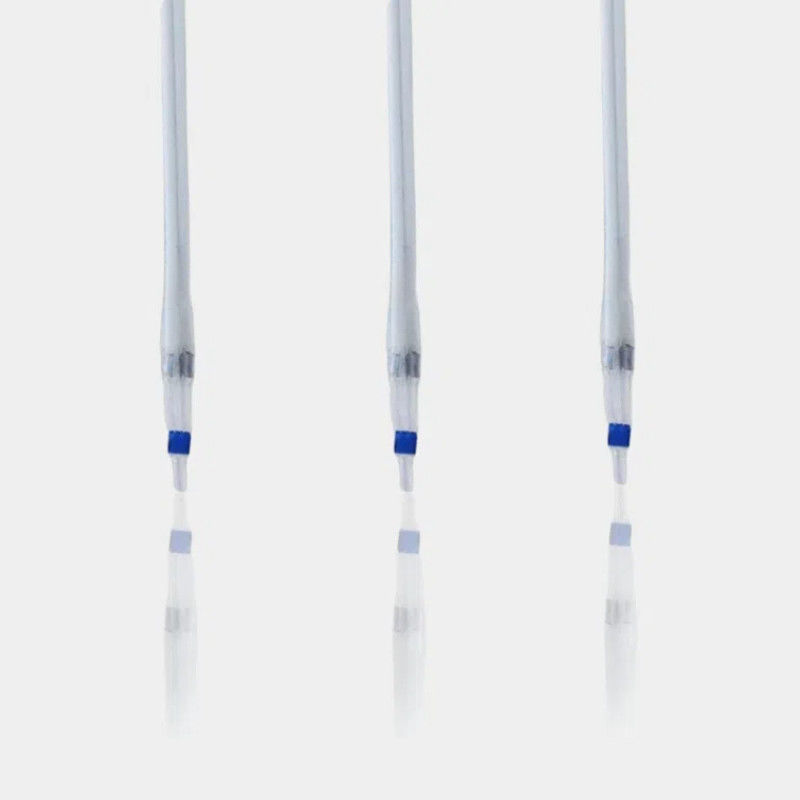

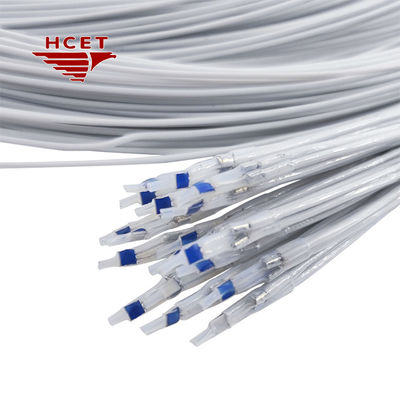

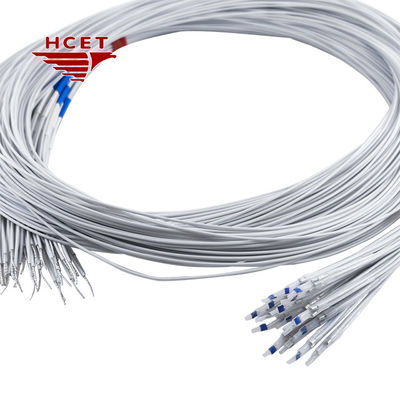

Product detail

Medical Grade PT100 Temperature Sensor Probe High Sensitivity Monitor OEM 1

Medical Grade PT100 Temperature Sensor Probe High Sensitivity Monitor OEM 2

Application

Medical Grade PT100 Temperature Sensor Probe High Sensitivity Monitor OEM 3
