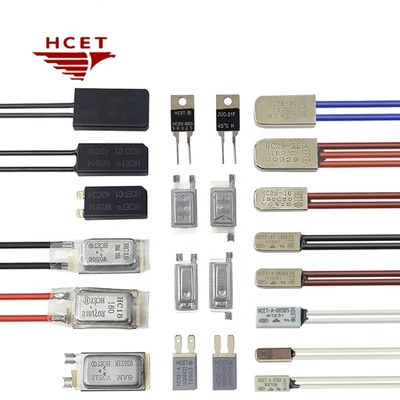

HCET Thermal Protection Switch Series Product Introduction

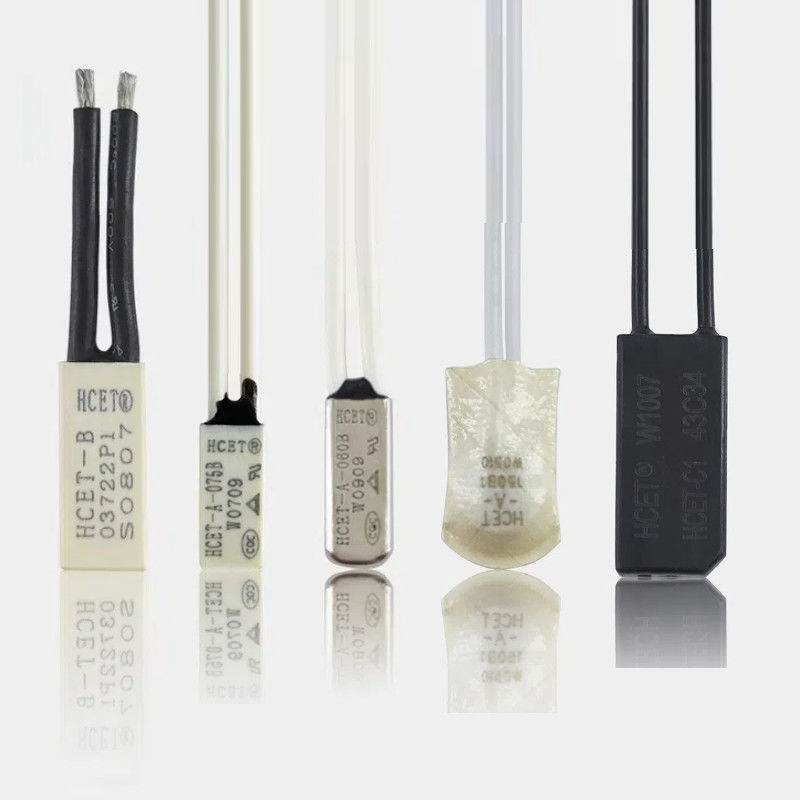

●   HCET-A Series Thermal protector

HCET-A series is a precise protector with small size.

It is sensitive, accurate and reliable. Widely used in micro-motor, battery protection board, protectowire, electric tool, heating pad, transformer etc.

• Sensitive temperature and snap action.
• Normally open and normally closed optional.
• Action temperature from 30~155℃.
• Nichel and wires are optional.

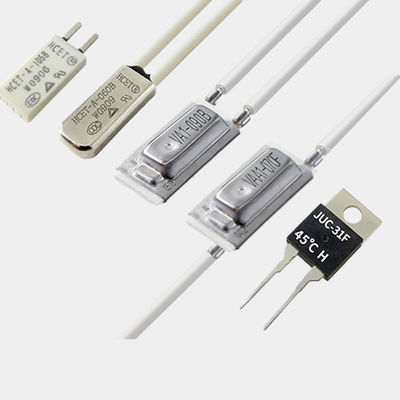

●   VA1/VAA1 Series Thermostat

VA1/VAA1 series thermostat is creep action thermal protectors designed for lowvoltage applications. lt has two options: normally closed B and normally openK.

Widely used in car seat heating, pet pad, curling iron, wax melting machine, etc.

• Conductive bimetal construction.

• Creep action device.
• Action temperature from 5~200℃.
• Insulting sleeving is available.


●   JUC-31F/KSD-01F Series Thermostat

JUC-31F/KSD-01F series thermostat is a temperature-senstive switch protectorwith plastic housing. insulation shell, miniature size, long lifecycle and high reliability.

Widely used in circuit board, switching power supply, charger, ballast etc.

• Insulation shell,miniature size.

• Convenient in installation.

• Action temperature from 10~160℃.

• Normally open and normally closed optional.

●   HC25 Series Thermal Cutoff Switch

HC25 series thermal protector with high-current make pure design temperatureto ensure low internal resistance.

Widely used in submersible pump, Dc high-power motor, solar water heating, heating tube, battery pack, electric tool etc.

• With pure design temperature.

• Epoxy sealing.

• Action temperature from 70~160℃.

• Current effect is small.
