HCET Series Thermal Protection Switch Overheat Temperature Safety Component

Name: HCET Series Thermal Protection Switch Overheat Temperature Safety Component
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: HCET Series Thermal Protection Switch
Availability: InStock

Brand Name:	HCET
Model Number:	HCET Series Thermal Protection Switch
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CQC, UL, TUV, CE, ROHS

Document:

product introduction.pdf

Customized Requirements:

Pls Contact Us

Product Name:

Thermal Protection Switch

Voltage:

250V

Current:

5~10A

Temperature Range:

30~180℃

Tolerance:

±3℃,±5℃

Material:

Plastic/metal Case

Application:

HVAC, Appliances & Industrial Equipment

Packaging Details:

5000 pcs per carton

Supply Ability:

10000000 pcs per month

Product Description

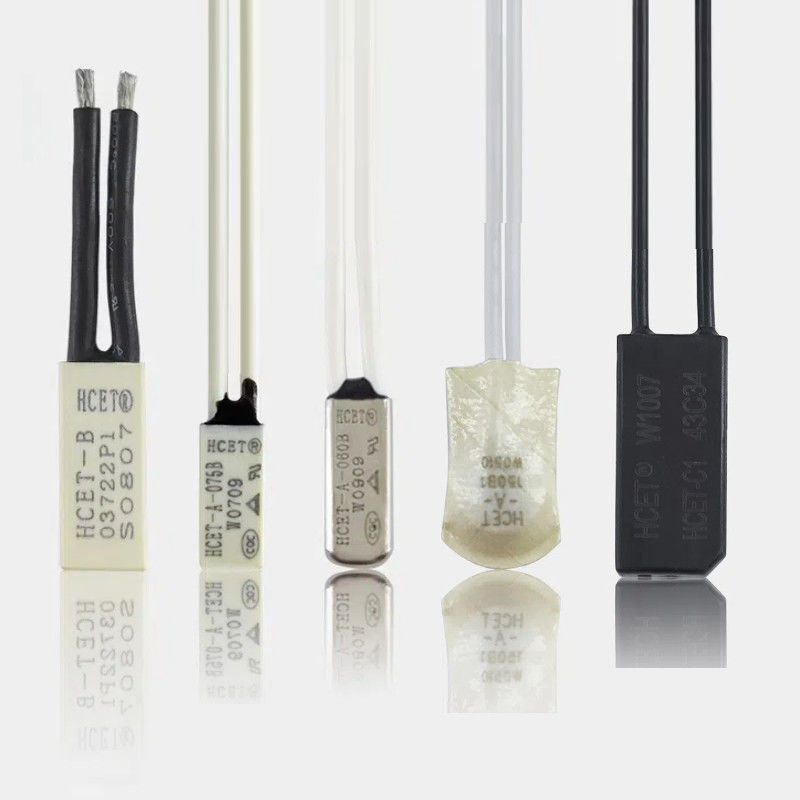

HCET Series Thermal Protection Switch Overheat Temperature Safety Component

Attribute	Value
Product name	Thermal Protection Switch
Voltage	250V
Current	5~10A
Temperature range	30~180℃
Tolerance	±3℃,±5℃
Material	Plastic/Metal case
Application	Heating pads & electric blankets, Small household appliances, Motors, transformers, medical heating devices
Customized Requirements	Please contact us

HCET-A Series Thermal Protector

The HCET-A series is a compact, precise thermal protector offering high sensitivity and reliability. Ideal for micro-motors, battery protection boards, electric tools, heating pads, and transformers.

Sensitive temperature response with snap action mechanism
Available in normally open and normally closed configurations
Operating temperature range: 30~155℃
Optional nickel plating and wire types

HCET-B Series Self-hold Motor Protector

HCET-B (Self-hold) current and overload protector with thermal protection and precise control of current overload time, resets after power cut. Widely used in new energy charging guns, charging piles, cleaners, electric tools, washing machines, pulverizers, and mowers.

Both temperature and current sensitive
Manual reset function
Action temperature range: 50~180℃
Customizable wire options

S01/S06 Series Thermal Switches

The S01/S06 series features temperature-sensitive switches with small dimensions and rapid response characteristics. These switches are commonly used in pet pads, heating pads, electric blankets, coils, and electronic product motors.

Compact design for tight spaces
Button configuration optimizes space utilization
Precision temperature control
Action temperature range from 50~200℃

HCET-C Series Thermal Switch

The HCET-C thermal protector combines thermal protection and thermal cutoff functionality with a service life of at least 100,000 cycles. Ideal for pet pads, heating pads, seat heating, and electric blankets.

Insulation shell with miniature size
100,000 cycles long lifespan
Action temperature range: 10~160℃
Normally open and normally closed options available

HC25 Series Thermal Cutoff Switch

High-current thermal protector with pure design temperature for low internal resistance. Suitable for submersible pumps, DC high-power motors, solar water heating systems, and battery packs.

Precision temperature design
Epoxy sealed construction
Operating temperature range: 70~160℃
Minimal current effect
