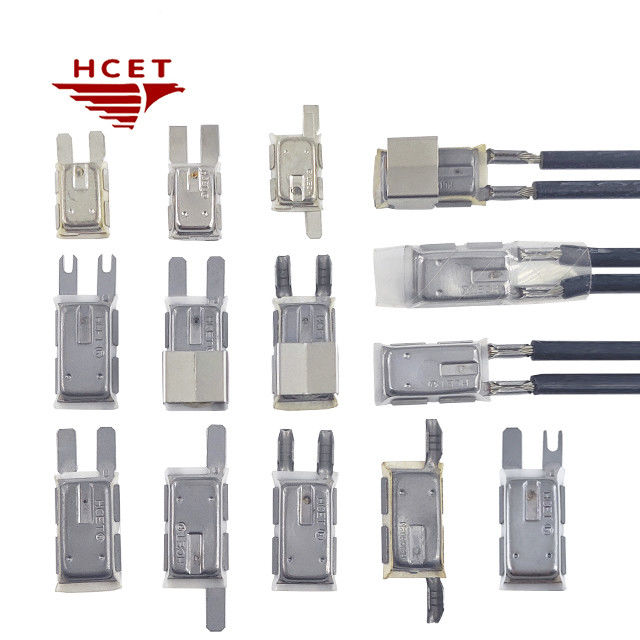

3MP 6AP Bimetallic Automatic Reset Thermal Overload Protector For DC Motor

3MP 6AP Bimetallic Automatic Reset Thermal Overload Protector For DC Motor

Brand Name:	HCET
Model Number:	3MP
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS

Document:

3MP.pdf

Product Name:

3MP Motor Thermal Protector

Material:

Metal Case

Temperature Range:

30~180℃

Tolerance:

±8℃,±5℃

Voltage:

30V DC / 250V AC

Current:

Customizable

Application:

Traction Motors

Packaging Details:

5000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

3MP automatic reset thermal overload protector

Bimetallic automatic reset thermal overload protector

6AP dc motor thermal protection

Product Description

HCET 3MP/6AP Bimetallic Overload Protectors Power-off Reset 10-30A Current Thermal Cutout Switch for Protection of Traction Motors

HCET bimetallic overload protector is based on the principle of thermal deformation of bimetallic sheet, and senses the temperature change of the equipment through the precision calibrated bimetallic element. When the temperature exceeds the preset threshold due to abnormal circuit current, the bimetal bending by heat triggers the mechanical linkage device to quickly cut off the power supply within 4-10 seconds; the temperature is automatically reset after it returns to normal, without manual intervention. Specifically designed for motors, compressors, transformers and other equipment, can effectively prevent overload, short-circuit winding burnout accidents, suitable for -30 ℃ to 250 ℃ wide temperature range of working environment.

Product feature:

Intelligent double protection mechanism
Overload current protection (10A/16A/20A/30A can be customized)
Short-circuit instantaneous cut-off (response time 4-10 seconds)
Military grade durability guarantee
More than 10000 times mechanical life test
Silver-plated contacts ensure low contact resistance (<50mΩ)
Adaptable design for all scenarios
Compact structure, saving installation space
Customizable terminals, support plug / rivet line double fixed

Electrical Characteristics:

30℃~180℃ Operating temperature range, Customizable temperature.	4S~10S Special action time can be customized
±5°C, ±8℃ Temperature Tolerance	1A~45A The overload current tripping range can be customized according to customer's requirements.

45amps/15 volts DC 15amps/30 volts DC

25amps/250 volts AC 30amps/125 volts AC
Electrical characteristics

Dimension size

3MP 6AP Bimetallic Automatic Reset Thermal Overload Protector For DC Motor 0

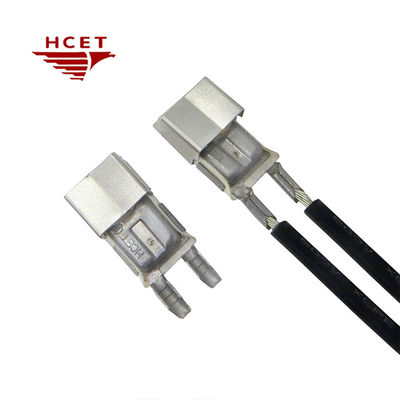

Product detail

3MP 6AP Bimetallic Automatic Reset Thermal Overload Protector For DC Motor 1

Application

3MP 6AP Bimetallic Automatic Reset Thermal Overload Protector For DC Motor 2
