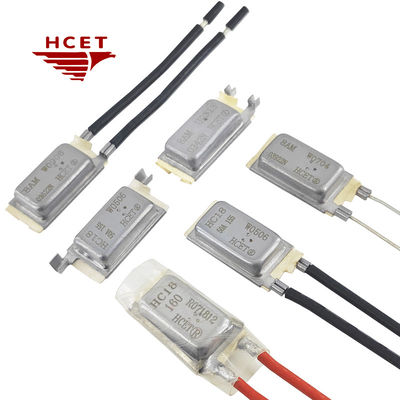

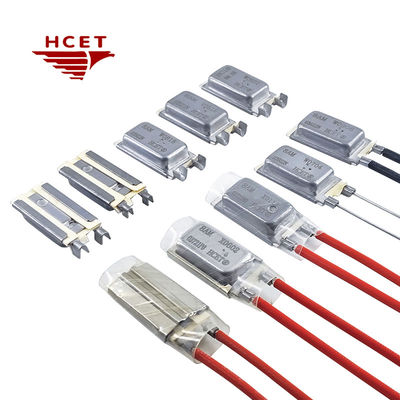

HC18 Motor Thermal Overload Protector Fast Trip Bimetallic Thermostat For Transformers

Name: HC18 Motor Thermal Overload Protector Fast Trip Bimetallic Thermostat For Transformers
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: HC18/8AM
Availability: InStock

Brand Name:	HCET
Model Number:	HC18/8AM
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS, UL, TUV, CE

Product Name:

8AM Motor Thermal Protector

Material:

Metal Case

Temperature Range:

80~180℃

Tolerance:

±8℃,±5℃

Voltage:

30V DC / 250V AC

Current:

Customizable

Application:

Automotive Motors & Transformers

Packaging Details:

8000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

HC18 Thermal Overload Protector

Fast Trip Thermal Overload Protector

HC18 bimetallic thermostat

Product Description

HC18 Motor Thermal Overload Protector Fast Trip Bimetallic Thermostat For Transformers

Product Overview

The HC18/8AM Series Motor Overload Thermal Protector is a dual-sensitive (temperature + current) safety device engineered to safeguard critical equipment such as motors, transformers, and automotive systems from overheating and overcurrent damage.

Key Specifications

Product Name	8AM motor thermal protector
Material	Metal case
Temperature Range	80~180℃
Tolerance	±8℃,±5℃
Voltage	30V DC / 250V AC
Current	Customizable
Application	Automotive Motors & Transformers

Product Features

Dual Protection Mechanism Combines temperature and current sensitivity to prevent motor burnout in overload or overheating scenarios.
Wide Current Range (15-60A) Handles high-load applications up to 60A, suitable for industrial motors, automotive starters, and heavy-duty transformers.
Precision Thermal Response Factory-calibrated with ±5℃/±8℃ accuracy, ensuring consistent performance across 80℃-180℃ temperature settings.
Fast-Acting Trip Time Disconnects circuits in 4-10 seconds at 25℃ ambient, minimizing downtime and equipment damage.
Compact & Customizable Space-saving design with optional terminals and wiring configurations for seamless integration into HVAC systems, pumps, and machinery.
Multi-Industry Compliance Certified for use in automotive motors, capacitor-start motors, split-phase motors, and lighting ballast protection.
Durability & Safety Robust construction withstands vibration and harsh environments, meeting global electrical safety standards.

Electrical Characteristics

80℃~180℃
Operating temperature range, Customizable temperature.

4S~10S
Special action time can be customized

±5°C, ±8℃
Temperature Tolerance

15A~60A
The overload current tripping range can be customized according to customer's requirements.

Technical Specifications

15 volts DC/30 volts DC: 1~60amps
125 volts AC /250 volts AC: 1~60amps

Product Dimensions

Detailed dimension diagram of HC18 Motor Thermal Protector

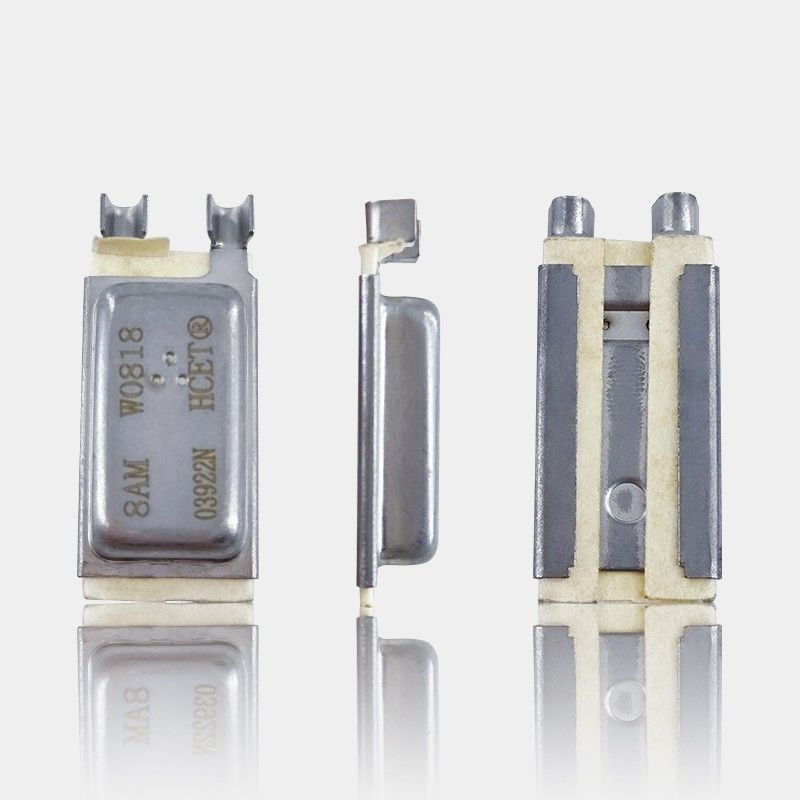

Product Details

Detailed view of HC18 Motor Thermal Protector components

Application Examples

Common applications for HC18 Motor Thermal Protector in automotive and industrial settings
