Water Heaters Snap Disk Bimetallic Thermostat Switch 25A High Current Temperature Controller

Name: Water Heaters Snap Disk Bimetallic Thermostat Switch 25A High Current Temperature Controller
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: KSD302
Availability: InStock

Brand Name:	HCET
Model Number:	KSD302
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL, TUV, CE

Product Name:

KSD302 Bimetal Thermostat

Material:

Bakelite Body

Temperature Range:

50~150℃

Tolerance:

±3℃,±5℃

Voltage:

125V/250V AC

Application:

Water Heater, Industrial Equipment

Packaging Details:

500 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

Water Heaters Bimetallic Thermostat Switch

snap disk Bimetallic Thermostat Switch

High Current snap disk thermostat

Product Description

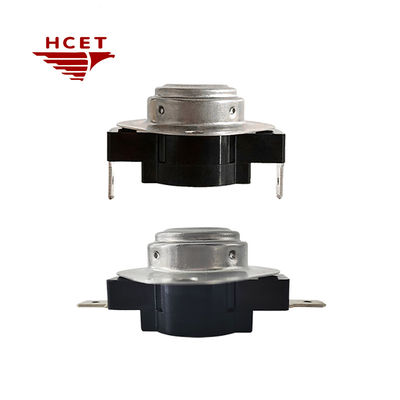

HCET KSD302 Bimetallic Thermostat Switch 25A High Current Temperature Controller Auto Reset Thermal Protector for Water Heaters

The HCET KSD302 Bimetallic Temperature Control Switch is a heavy-duty thermal protector designed for demanding applications requiring high-current capacity and reliable overheating protection. With a maximum rated current of 25A at 250V AC/DC, this automatic reset thermostat ensures safe operation of power-intensive equipment in residential, commercial and industrial environments. Featuring military-grade bimetal snap-action technology, it provides ±5℃ precision temperature control across a wide range (-10℃ to 180℃). The corrosion-resistant terminals and flame-retardant housing make it ideal for harsh operating conditions in water heaters, commercial kitchen appliances, HVAC systems and industrial machinery.

Product feature:

Ultra-High Current Capacity
- 25A 250V AC/DC rating withstands extreme loads in industrial motors and commercial kitchen equipment
Precision Temperature Control
- ±5℃ accuracy with bimetal snap-action mechanism ensures critical equipment protection
Universal Compatibility
- Multiple terminal configurations (fast-on/spade/PCB) adapt to global electrical
Dual Protection System
- Normally Open (NO) & Normally Closed (NC) contacts support complex circuit designs

Electrical Characteristics:

Temperature range:

50℃~150℃

Temperature tolerance:

±3℃, ±5℃

Electrical specifications:

12VDC/24VDC:10A~15A

125VAC/250VAC:10A~16A

Product size

Water Heaters Snap Disk Bimetallic Thermostat Switch 25A High Current Temperature Controller 0

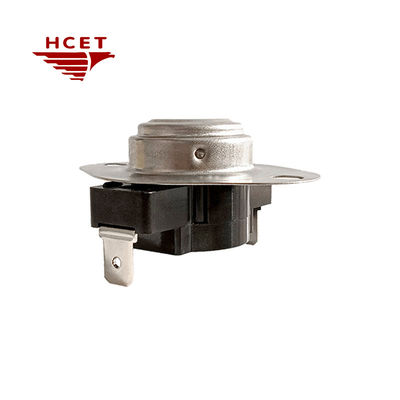

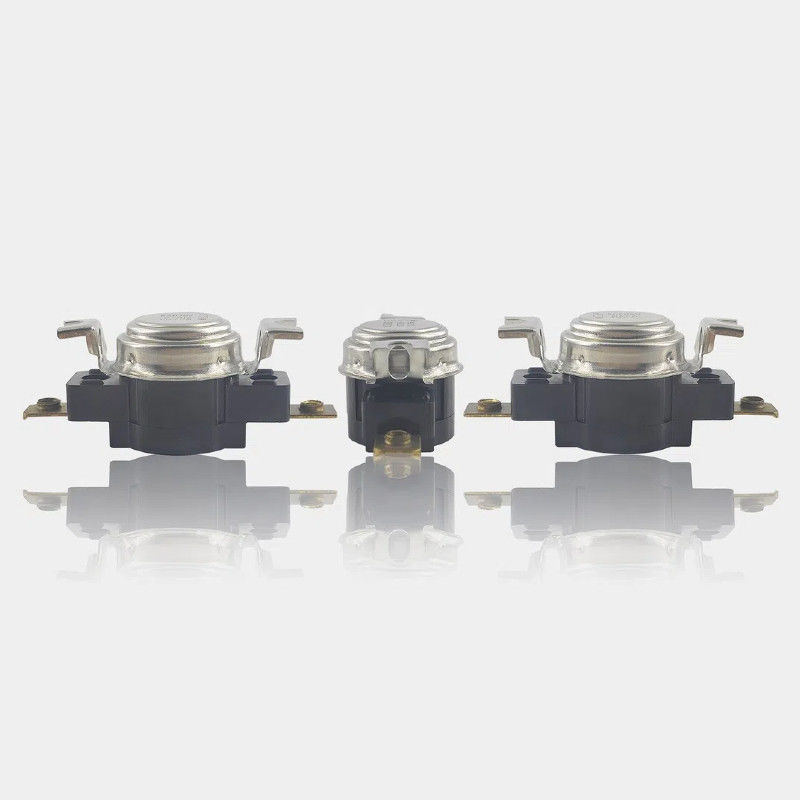

Product detail

Water Heaters Snap Disk Bimetallic Thermostat Switch 25A High Current Temperature Controller 1

Water Heaters Snap Disk Bimetallic Thermostat Switch 25A High Current Temperature Controller 2

Application

Water Heaters Snap Disk Bimetallic Thermostat Switch 25A High Current Temperature Controller 3
