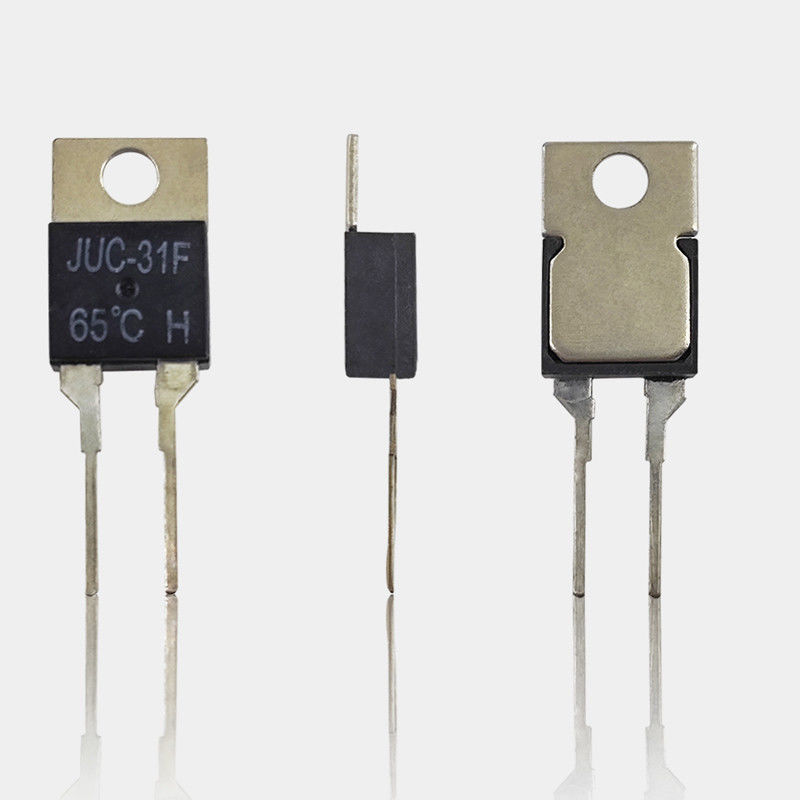

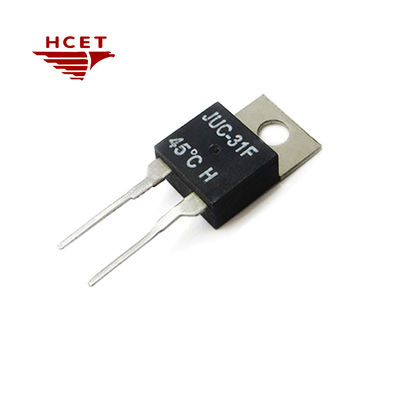

Customized JUC-31F KSD-01F Bimetallic Thermostat Switch Thermal Protector

Brand Name:	HCET
Model Number:	HCET-C
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CQC, UL, TUV, CE, ROHS

Document:

juc-31F KSD-01F HC03.pdf

Product Name:

JUC-31F/KSD-01F Bimetallic Thermostat

Material:

Insulation Shell

Temperature Range:

10℃~160C

Tolerance:

±8℃,±5℃

Voltage:

250V

Current:

Service Life:

10k Times

Application:

PCB

Packaging Details:

100 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

JUC-31F Bimetallic Thermostat Switch

KSD Bimetallic Thermostat Switch

ksd bimetal thermostat Protector

Product Description

Customized JUC-31F KSD-01F Bimetallic Thermostat Switch Thermal Protector

Product Specifications

Attribute	Value
Product name	JUC-31F/KSD-01F Bimetallic Thermostat
Material	Insulation Shell
Temperature range	10℃~160℃
Tolerance	±8℃,±5℃
Voltage	250V
Current	1A
Service life	10k times
Application	PCB

Product Description

JUC-31F/KSD-01F Bimetallic Thermostat 10°C-160°C Thermal Protector with Insulation Shell Normally Open (H)/Closed (D) for PCB

The JUC-31F/KSD-01F is a premium bimetallic thermostat designed for sensitive temperature monitoring and circuit protection in demanding environments. Featuring a fully insulated plastic shell and snap-action technology, it ensures arc-free operation, extended service life (±50,000 cycles), and compliance with TUV/CE standards. Pre-calibrated to your specified temperature range (10°C-160°C, ±5℃/±8℃ tolerance), this thermal switch offers versatile NO/NC contact configurations (H/D models) for seamless integration into automation systems, power electronics, and safety-critical applications.

Product Features

Ultra-Reliable Bimetallic Design
- Precision temperature control with ±5℃ accuracy ensures stable performance in fluctuating environments.
- Snap-action mechanism eliminates arcing, protecting sensitive PCB components and reducing EMI interference.
Global Safety Compliance
- TUV/CE-certified insulation shell withstands 250V AC/30V DC, ideal for industrial and consumer electronics.
- RoHS-compliant materials resist chemicals (alcohol, ammonia, solvents) and humidity.
Plug-and-Play Versatility
- Compact 15.5mm diameter housing with solder tab terminals enables automated PCB assembly.
- Normally Open (H) or Closed (D) contacts support diverse circuit designs in power supplies, EV chargers, and HVAC systems.

Electrical Characteristics

10℃~160℃ Temperature Range (Customizable temperature, please contact us.)

±8℃ / ±5℃ Temperature Tolerance

2amps/30V DC / 2amps/120V AC / 1amps/240V AC Electrical Specifications

Dimension Size

Technical drawing showing exact dimensions of the thermostat

Product Detail

Detailed view of thermostat components and construction

Application

Typical applications in electronic circuits and devices
