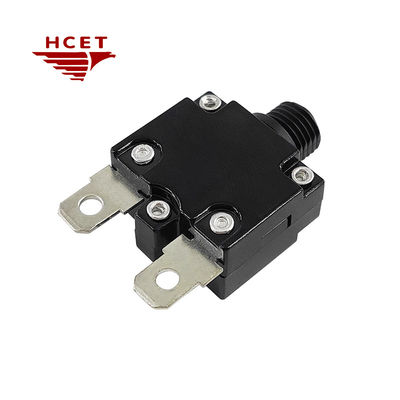

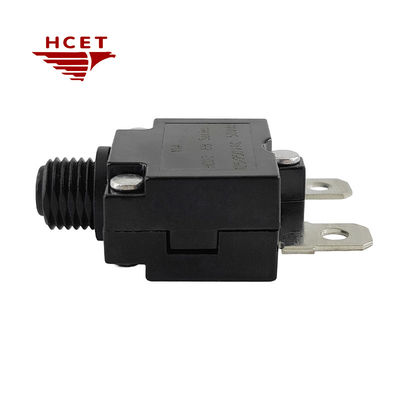

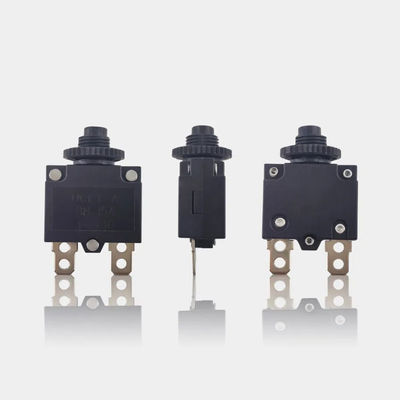

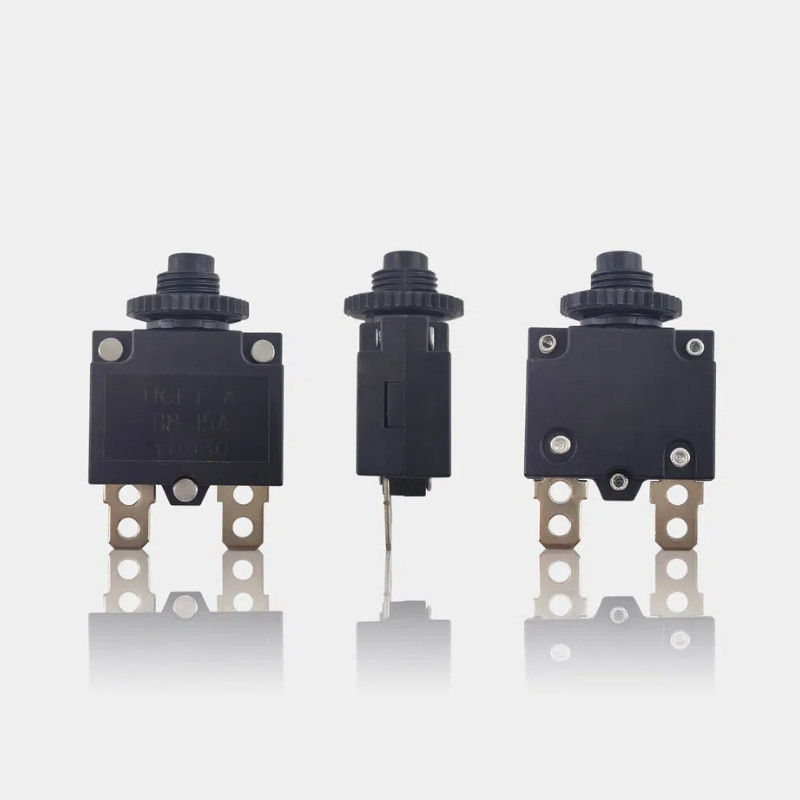

AC Motor Thermal Overload Protector Temperature Overcurrent Trip Switch HCET 88/98

Brand Name:	HCET
Model Number:	88
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Current:

3-25A

Reset Type:

Manual Reset

Application:

Motors

Product Name:

88 Thermal Overload Protector

Material:

Bakelite Case

Voltage:

125/250VAC 50VDC

Packaging Details:

500 pcs per carton

Supply Ability:

1000000 pcs per month

Highlight:

AC Motor Thermal Overload Protector

HCET 88 Thermal Overload Protector

AC Motor overcurrent trip switch

Product Description

AC Motor Thermal Overload Protector Temperature Overcurrent Trip Switch HCET 88/98

Product Specifications

Attribute	Value
Current	3-25A
Reset type	Manual reset
Application	Motors
Product name	88 thermal overload protector
Material	Bakelite case
Voltage	125/250VAC 50VDC

Product Description

HCET 88/98 Thermal Overload Protector Temperature Switch Overcurrent Protector Circuit Breaker for AC Motor Protection

HCET 88/98 is a protection device designed for AC motors, integrating four core protection modules to ensure the safe operation of motors under complex operating conditions.

Key Features

All mechanical structure - No electronic components or program control, suitable for high temperature, high humidity, strong electromagnetic interference environments (such as metallurgy, mining).
Reliable manual reset - The reset button requires manual intervention to confirm safety, eliminating the risk of automatic restart when faults are not removed.
Physical level overload protection - Bimetal + electromagnetic release double protection, covering overload, blocking, short circuit between phases and other faults.

Electrical Characteristics

Breaking Capacity

1000A*125VAC 20A*250VAC

Recovery Time

< 60s

Insulation And Voltage Withstand Test

1500/min

Rated Current

3A~25A

Minimum Voltage

< 0.25V

Insulation Resistance

> 500VDC*100MΩ

Rated Voltage

125/250VAC 50VDC 50~60HZ

Dimensions

Product Details

Application
