ODM Automatic Bimetal Thermal Protector Motor Protection Switch 8AM

Name: ODM Automatic Bimetal Thermal Protector Motor Protection Switch 8AM
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: HC18/8AM
Availability: InStock

Brand Name:	HCET
Model Number:	HC18/8AM
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS, UL, TUV, CE

Product Name:

8AM Motor Thermal Protector

Material:

Metal Case

Temperature Range:

80~180℃

Tolerance:

±8℃,±5℃

Voltage:

30V DC / 250V AC

Current:

Customizable

Application:

Automotive/Industrial Applications

Packaging Details:

8000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

ODM bimetal thermal protector

8AM bimetal thermal protector

ODM automatic thermal protection motor

Product Description

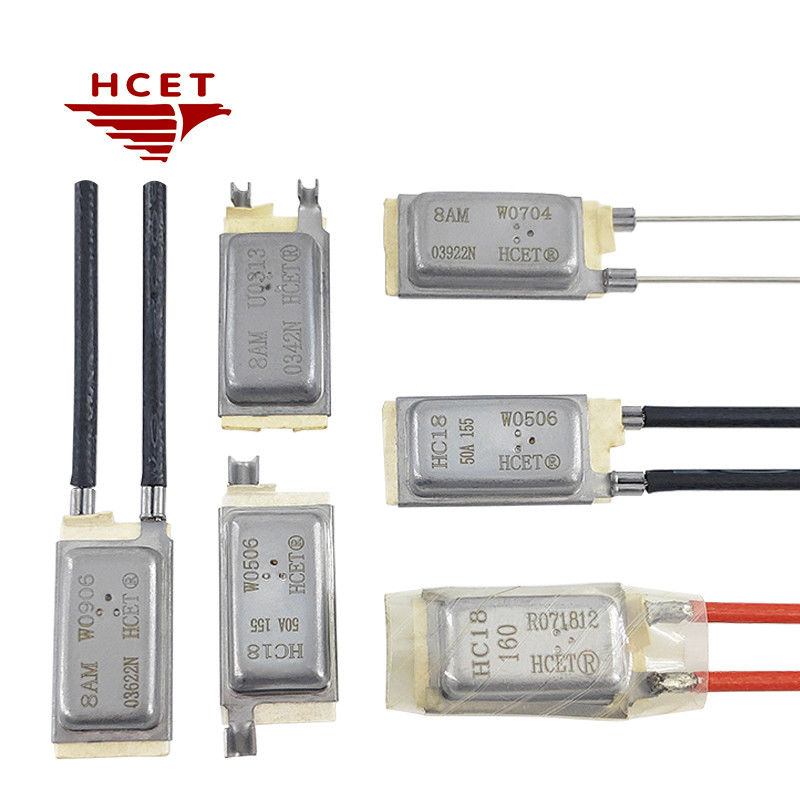

ODM Automatic Bimetal Thermal Protector Motor Protection Switch 8AM

Product Specifications

Attribute	Value
Product name	8AM motor thermal protector
Material	Metal case
Temperature range	80~180℃
Tolerance	±8℃,±5℃
Voltage	30V DC / 250V AC
Current	Customizable
Application	Automotive/Industrial Applications

Product Overview

The HCET HC18/8AM series are precision-engineered bimetal thermal protectors designed for dual-mode protection against overcurrent (15-60A) and overtemperature (80℃-180℃) in electrical systems. These thermal cutoff switches combine fast-acting bimetal disc technology with CE/UL compliance to prevent equipment burnout across automotive, HVAC, and industrial automation applications.

Key Features

Dual-Sensing Protection Simultaneously monitors temperature rise (T±5℃ calibration) and current overload (up to 60A 250VAC), ideal for capacitor-start motors and split-phase motor protection.
Industrial-Grade Reliability Tested for 10,000+ cycles, with zinc alloy housing rated for -30℃ to 200℃ operation in harsh environments.
Fast Trip Response 4-10 second cut-off at setting temperature, significantly faster than standard thermal fuses to prevent motor winding damage.
Global Compliance Ready Pre-configured for UL/CE/RoHS certification pathways, supporting OEM integration in automotive (IATF 16949 compatible) and industrial equipment.
Customizable Configurations Optional waterproof terminals, 12-24VDC variants, and silicone-coated leads (UL1007/1015) for EV battery cooling fans or wet location installations.

Technical Specifications

80℃~180℃

Operating temperature range, Customizable temperature

4S~10S

Special action time can be customized

±5°C, ±8℃

Temperature Tolerance

15A~60A

Customizable overload current tripping range

Electrical Characteristics

15 volts DC/30 volts DC: 1~60amps
125 volts AC /250 volts AC: 1~60amps

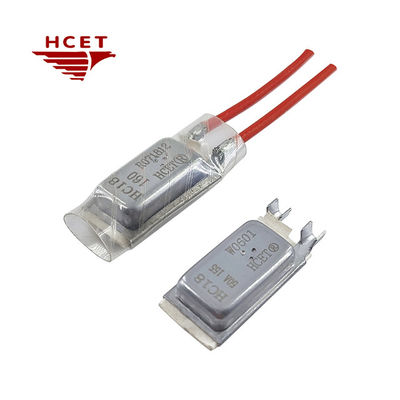

Product Visuals

Dimension Size

Product Detail

Application
