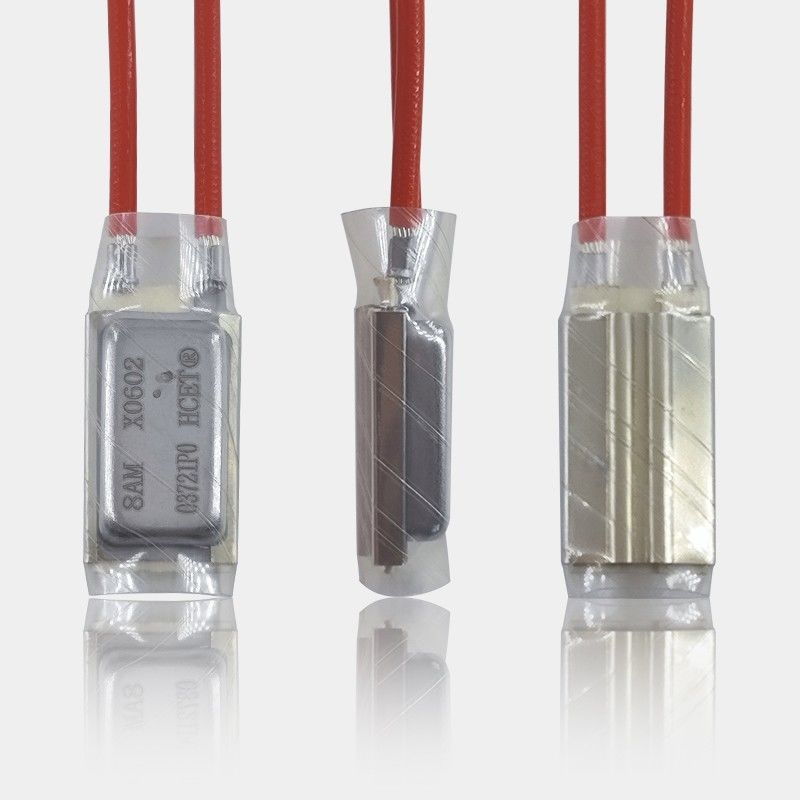

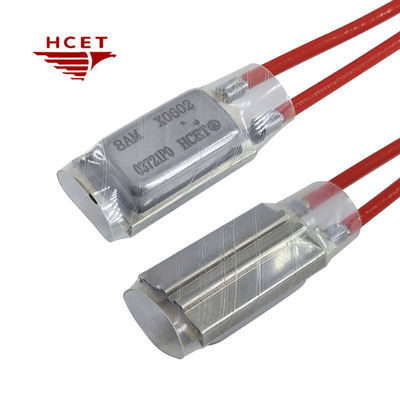

HCET 8AM PTC Overload Tarpaulin Motor Thermal Protector Switch Dual Sensitive

Name: HCET 8AM PTC Overload Tarpaulin Motor Thermal Protector Switch Dual Sensitive
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: HC18/8AM
Availability: InStock

Brand Name:	HCET
Model Number:	HC18/8AM
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS, UL, TUV, CE

Product Name:

8AM Motor Thermal Protector

Material:

Metal Case

Temperature Range:

80~180℃

Tolerance:

±8℃,±5℃

Voltage:

30V DC / 250V AC

Current:

Customizable

Application:

Tarpaulin Motors

Packaging Details:

8000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

8AM Motor Thermal Protector

klixon HCET Motor Thermal Protector

8AM klixon thermal overload switch

Product Description

HCET 8AM PTC Overload Tarpaulin Motor Thermal Protector Switch Dual Sensitive

Product Specifications

Attribute	Value
Product name	8AM motor thermal protector
Material	Metal case
Temperature range	80~180℃
Tolerance	±8℃,±5℃
Voltage	30V DC / 250V AC
Current	Customizable
Application	Tarpaulin motors

Product Overview

The HCET 8AM+PTC High-Current Dual-Sensitive Thermal Protector is a precision-engineered solution designed to safeguard motors, transformers, and electrical systems from overheating and overcurrent damage. Combining temperature and current sensitivity, this thermal switch ensures reliable protection across high-demand applications.

Key Features

Dual-Sensitive Protection
- Temperature & Current Trigger: Automatically disconnects circuits during overheating (up to 180°C) or overcurrent (up to 60A)
- Precision Trip Mechanism: Calibrated to trip within 4-10 seconds under setting temperature
High-Performance Design
- Extra High Current Handling: Robust construction supports demanding environments
- Wide Voltage Compatibility: Works with AC/DC systems (12V-250V)
Customization & Reliability

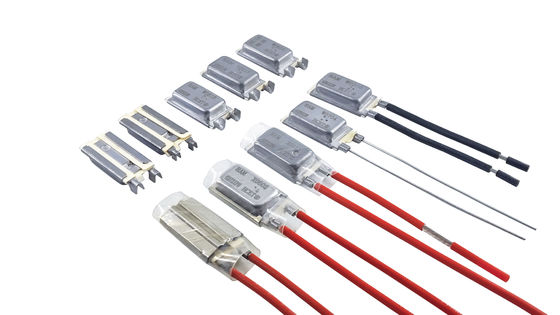

- Flexible Terminal/Wire Options: Choose from spade connectors, lead wires, or custom configurations
- Individually Tested: Each unit undergoes rigorous temperature and current calibration

Technical Specifications

80℃~180℃ Operating temperature range, Customizable temperature

4S~10S Special action time can be customized

±5°C, ±8℃ Temperature Tolerance

15A~60A The overload current tripping range can be customized

Electrical Characteristics:
15 volts DC/30 volts DC: 1~60amps
125 volts AC/250 volts AC: 1~60amps

Product Details

Industry Applications

Automotive: Protects starter motors, windshield wipers, and EV cooling systems
Industrial: Safeguards pumps, compressors, and conveyor motors
Consumer Appliances: Used in washing machines, refrigerators, and power tools
