Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Motor Thermal Protector
Created with Pixso. 15A-60A Overload Motor Thermal Protector Dual Temperature Current Sensitive Cutoff Switch
Name
  • Name
  • Name
  • Name

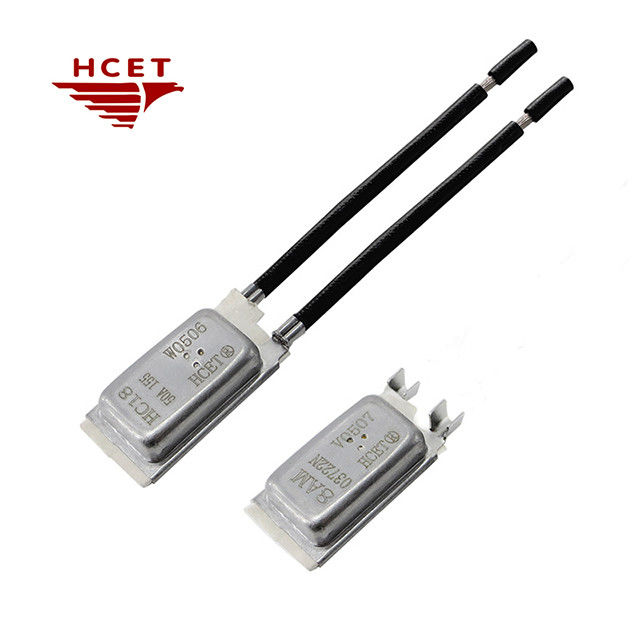

15A-60A Overload Motor Thermal Protector Dual Temperature Current Sensitive Cutoff Switch

Brand Name: HCET
Model Number: HC18/8AM
MOQ: 1000
Price: please contact us
Delivery Time: 5-7 work days
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ROHS, UL, TUV, CE
Product Name:
8AM Motor Thermal Protector
Material:
Metal Case
Temperature Range:
80~180℃
Tolerance:
±8℃,±5℃
Voltage:
30V DC / 250V AC
Current:
Customizable
Application:
Large Wiper Motor
Packaging Details:
8000 pcs per carton
Supply Ability:
10000000 pcs per month
Highlight:

60A Motor Thermal Protector

,

Cutoff Motor Thermal Protector

,

15A thermal overload protection switch

Product Description
15A-60A Overload Motor Thermal Protector Dual Temperature Current Sensitive Cutoff Switch
Product Specifications
Attribute Value
Product name 8AM motor thermal protector
Material Metal case
Temperature range 80~180℃
Tolerance ±8℃,±5℃
Voltage 30V DC / 250V AC
Current Customizable
Application Large Wiper Motor
Product Description

The HCET 8AM Series 15-60A Motor Overload Thermal Protector is a professional-grade thermal protection device engineered for precision motor overload protection in demanding environments. Combining temperature and current dual-sensing technology, this UL/CE certified protector automatically disconnects power within 4-10 seconds when detecting abnormal conditions (overheating up to 180℃ ±5℃ or current overloads 15-60A).

Key Features
  • Dual-Sensor Technology: Simultaneously monitors winding temperature (80-180℃ range) and current flow (15-60A) for comprehensive motor protection
  • Industrial-Grade Durability: -40℃ to 200℃ operating range for marine/off-road applications. Vibration resistant design for automotive engine bay installation
  • Fast Response System: 4-second trip time at 25℃ ambient prevents insulation degradation in capacitor-start motors (5HP+), 3-phase induction motors, and transformer cooling systems
  • Custom Configuration Options: Terminal types (same terminals, different terminals, ring terminals), wire gauges (16AWG-22AWG with optional braided shielding), and special coatings (chemical-resistant epoxy for food processing equipment)
Electrical Characteristics
80℃~180℃ Operating temperature range, Customizable temperature.
4S~10S Special action time can be customized
± 5°C, ±8℃ Temperature Tolerance
15A~60A The overload current tripping range can be customized according to customer's requirements.
Voltage Specifications

15 volts DC/30 volts DC: 1~60amps
125 volts AC /250 volts AC: 1~60amps

Product Dimensions
15A-60A Overload Motor Thermal Protector Dual Temperature Current Sensitive Cutoff Switch 0
Product Details
15A-60A Overload Motor Thermal Protector Dual Temperature Current Sensitive Cutoff Switch 1
Typical Applications
15A-60A Overload Motor Thermal Protector Dual Temperature Current Sensitive Cutoff Switch 2
Tags:
