OEM Car DC Electric Motor Thermal Protection 7AM 6AP 5AP

OEM Car DC Electric Motor Thermal Protection 7AM 6AP 5AP

Brand Name:	HCET
Model Number:	3MP
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS

Document:

3MP.pdf

Product Name:

3MP Motor Thermal Protector

Material:

Metal Case

Temperature Range:

30~180℃

Tolerance:

±8℃,±5℃

Voltage:

30V DC / 250V AC

Current:

Customizable

Application:

Car DC Motor

Packaging Details:

20000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

OEM electric motor thermal protection

Klixon 7AM electric motor thermal protection

OEM klixon 7am thermal protector

Product Description

HCET 3MP Bimetal Thermal Protector Switch Self-Hold Overload Protection 6AP/5AP Compatible for Car DC Motor

The HCET 3MP series thermal protectors are precision-engineered bimetal disc switches designed for critical motor protection across industrial and consumer applications. As a high-performance alternative to Sensata Klixion, our self-hold mechanism ensures reliable circuit interruption (4-10s response time) during overloads, short circuits, or motor lock conditions, with manual reset capability after power cutoff. With customizable trip currents up to 45A and temperature ranges from 30℃-180℃ (±5℃ precision), these RoHS-compliant protectors are ideal for demanding environments requiring UL-equivalent safety standards.

Product feature:

Multi-Application Compatibility
- Optimized for window motors, power tools (drills/grinders), HVAC systems, and home appliances (washing machines/vacuums)
- Compatible with leading brands' thermal cutoff switch footprints
Intelligent Protection
- Dual protection: Temperature-sensitive bimetal disc + current overload detection
- 4-10s precision trip time prevents motor burnout in stall conditions
Customizable Performance
- Adjustable trip current: 1A-45A (DC 15V-30V / AC 125V-250V)
- Optional temperature activation points (30℃-180℃ ±5℃)
Robust Construction
- Compact IP54-rated housing for coil/internal/external mounting
- 100,000+ cycle durability with silver alloy contacts
Global Compliance
- Meets EU RoHS directives
- CE-certified with UL/TUV equivalent testing

Electrical Characteristics:

30℃~180℃ Operating temperature range, Customizable temperature.	4S~10S Special action time can be customized
±5°C, ±8℃ Temperature Tolerance	1A~45A The overload current tripping range can be customized according to customer's requirements.

45amps/15 volts DC 15amps/30 volts DC

25amps/250 volts AC 30amps/125 volts AC
Electrical characteristics

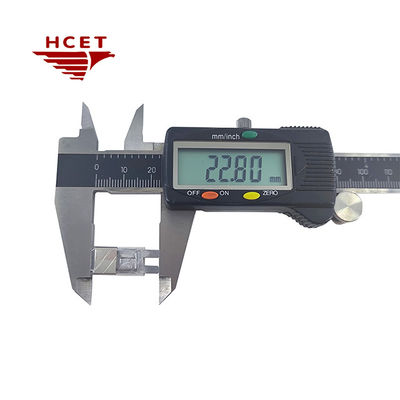

Dimension size

OEM Car DC Electric Motor Thermal Protection 7AM 6AP 5AP 0

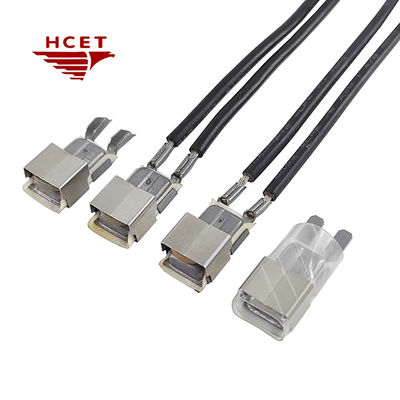

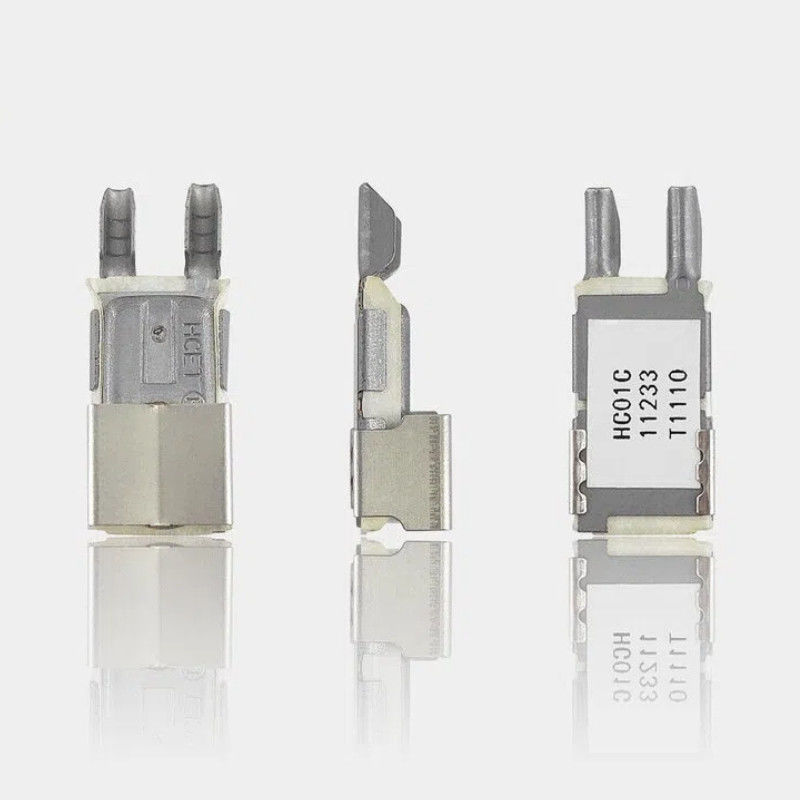

Product detail

OEM Car DC Electric Motor Thermal Protection 7AM 6AP 5AP 1

Application

OEM Car DC Electric Motor Thermal Protection 7AM 6AP 5AP 2
