OEM 5A KSD9700 Thermal Switch Motor Overload Protector Cutoff For HVAC Systems

Name: OEM 5A KSD9700 Thermal Switch Motor Overload Protector Cutoff For HVAC Systems
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: HCET-A5
Availability: InStock

Brand Name:	HCET
Model Number:	HCET-A5
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CQC, UL, TUV, CE, ROHS

Document:

tb05.pdf

Product Name:

TB05/KSD9700 Thermal Switch

Material:

Plastic Or Metal

Temperature Range:

35℃~160C

Tolerance:

±3℃,±5℃

Voltage:

250V

Current:

5A/10A

Application:

HVAC Systems

Packaging Details:

5000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

OEM KSD9700 Thermal Switch

HVAC KSD9700 Thermal Switch

ksd9700 5a Overload Protector

Product Description

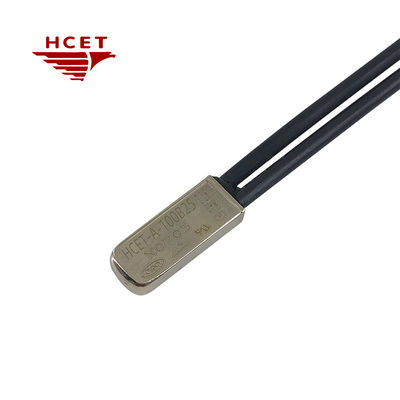

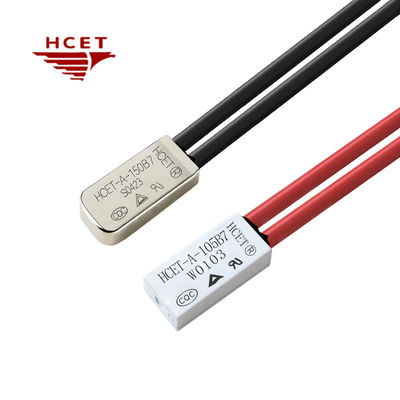

HCET OEM KSD9700/TB05 Bimetal Thermal Switch Motor Overload Protector with Metal Housing UL Certified Thermal Cutoff for HVAC Systems

HCET KSD9700/TB05 industrial-grade bimetal thermal cutoff switch provides reliable motor overload protection and temperature control for demanding applications. This UL-recognized thermal protector features a compact metal housing design with 8A/250VAC high-current capacity, ensuring precise temperature regulation (±3℃ tolerance) in motors, HVAC equipment, transformers, and home appliances. The snap-action bimetal disc mechanism guarantees instant circuit interruption at 80℃ threshold, offering critical protection against overheating in commercial kitchen equipment, industrial machinery, and electric vehicle charging systems.

Product feature:

High-Precision Protection
High quality bimetal actuator with ±3℃ accuracy
Rugged Construction
Housing withstands 10,000+ cycles
Universal Compatibility
6-8A current rating supports 120VAC to 250VAC systems (certified for UL, TUV, RoHS)
Space-Saving Design
15mm diameter compact form factor for PCB/terminal block integration
Multi-Industry Application
Validated for automotive ECUs, industrial motor starters, solar inverters, and medical device thermal management

Electrical Characteristics:

35℃~160C
Temperature Range(Customizable temperature, please contact us.)

±3°℃, ±5℃
Temperature Tolerance

8amps/24 volts DC
6amps/250 volts AC
8amps/125 volts DC
Electrical Specifications

Dimension size

OEM 5A KSD9700 Thermal Switch Motor Overload Protector Cutoff For HVAC Systems 0

OEM 5A KSD9700 Thermal Switch Motor Overload Protector Cutoff For HVAC Systems 1

Product detail

OEM 5A KSD9700 Thermal Switch Motor Overload Protector Cutoff For HVAC Systems 2

OEM 5A KSD9700 Thermal Switch Motor Overload Protector Cutoff For HVAC Systems 3

Application

OEM 5A KSD9700 Thermal Switch Motor Overload Protector Cutoff For HVAC Systems 4
