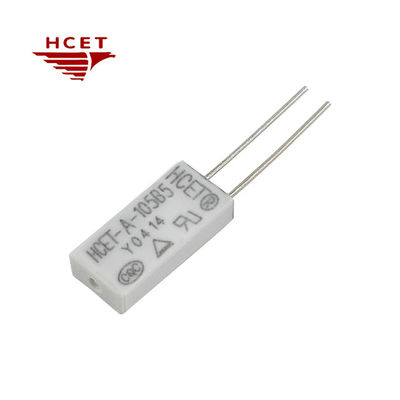

AC KSD9700 Thermal Switch Protector 6A 250V Cutoff 45C For New Energy Charger

Name: AC KSD9700 Thermal Switch Protector 6A 250V Cutoff 45C For New Energy Charger
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: HCET-A-B7
Availability: InStock

Brand Name:	HCET
Model Number:	HCET-A-B7
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CQC, UL, TUV, CE, ROHS

Document:

tb05.pdf

Product Name:

KSD9700 Thermal Switch

Material:

Plastic Or Metal

Temperature Range:

35℃~160C

Tolerance:

±3℃,±5℃

Voltage:

250V

Current:

5A/10A

Application:

New Energy Charger

Packaging Details:

5000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

6A 250V KSD9700 Thermal Switch

45C KSD9700 Thermal Switch

ksd9700 45 c Cutoff

Product Description

HCET KSD9700/TB05 Bimetal Thermal Switch Protector 6A 250V AC Thermal Cutoff Switch for New Energy Charger

The HCET TB05 Series bimetal thermal protector is an intelligent electromechanical device engineered for precision temperature control and overload protection in motor-driven systems. As a dual-sensitive (temperature & current) switch, it integrates a snap-action bimetal disc technology that ensures instantaneous response to thermal anomalies within 35℃-160℃ range (±3℃ tolerance available).

Product feature:

Dual Protection Mechanism
Simultaneously monitors temperature rise and current overload
High-Current Capacity
5A 250V AC rating outperforms standard thermal links in motor starter circuits
Precision Temperature Control
Temperature range from 35℃ to 160℃ with optional ±3℃ medical-grade tolerance
Global Compliance Ready
Pre-certified for UL, TUV, CQC, and RoHS compliance - accelerate your product certification process
Space-Optimized Design
Compact 15mm diameter housing enables integration in Class F insulation systems (155℃)

Electrical Characteristics:

35℃~160C
Temperature Range(Customizable temperature, please contact us.)

±3°℃, ±5℃
Temperature Tolerance

8amps/24 volts DC
6amps/250 volts AC
8amps/125 volts DC
Electrical Specifications

Dimension size

AC KSD9700 Thermal Switch Protector 6A 250V Cutoff 45C For New Energy Charger 0

AC KSD9700 Thermal Switch Protector 6A 250V Cutoff 45C For New Energy Charger 1

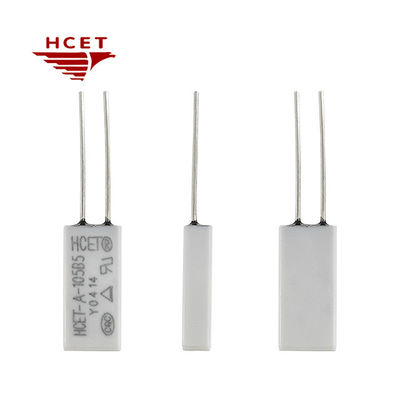

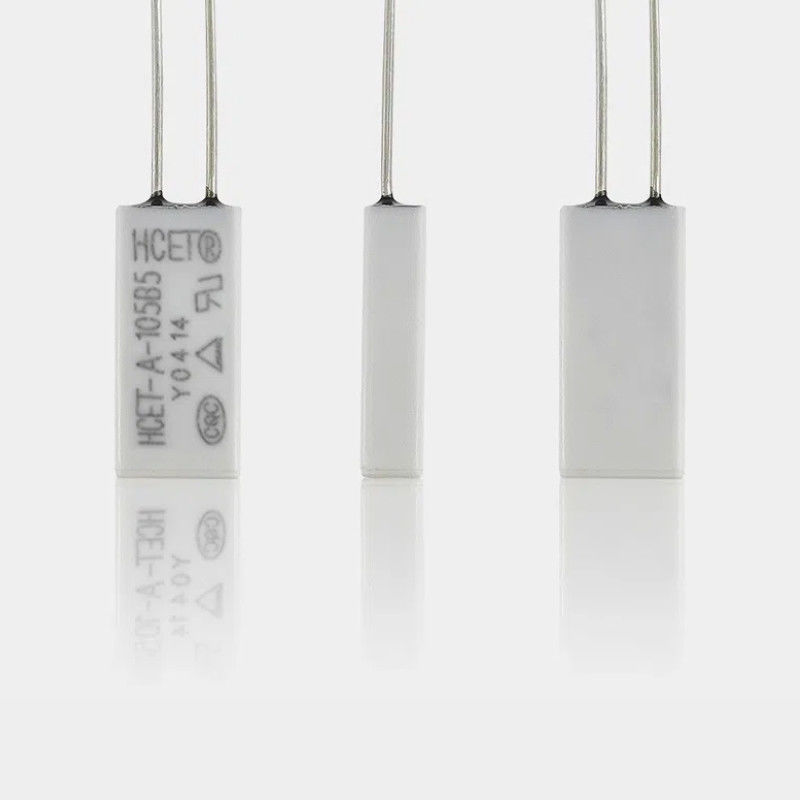

Product detail

AC KSD9700 Thermal Switch Protector 6A 250V Cutoff 45C For New Energy Charger 2

AC KSD9700 Thermal Switch Protector 6A 250V Cutoff 45C For New Energy Charger 3

Application

AC KSD9700 Thermal Switch Protector 6A 250V Cutoff 45C For New Energy Charger 4
