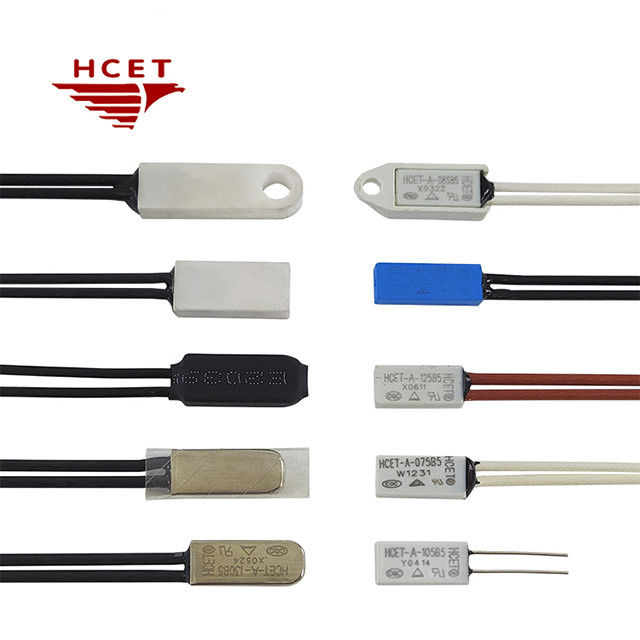

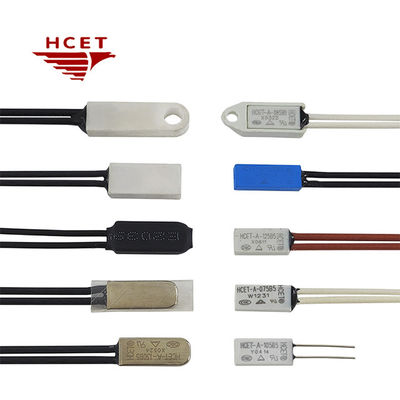

Snap Action KSD9700 Thermal Switch Thermostat Motor Overload Protector

Snap Action KSD9700 Thermal Switch Thermostat Motor Overload Protector

Brand Name:	HCET
Model Number:	HCET-A-B7
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CQC, UL, TUV, CE, ROHS

Document:

tb05.pdf

Product Name:

KSD9700 Thermal Switch

Material:

Plastic Or Metal

Temperature Range:

35℃~160C

Tolerance:

±3℃,±5℃

Voltage:

250V

Current:

5A/10A

Application:

Battery Packs

Packaging Details:

5000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

Snap Action KSD9700 Thermal Switch

KSD9700 Thermal Switch thermostat

Snap Action ksd9700 thermostat

Product Description

Snap Action KSD9700 Thermal Switch Thermostat Motor Overload Protector

Product Specifications

Attribute	Value
Product name	KSD9700 thermal switch
Material	plastic or metal
Temperature range	35℃~160℃
Tolerance	±3℃,±5℃
Voltage	250V
Current	5A/10A
Application	Battery Packs

Product Description

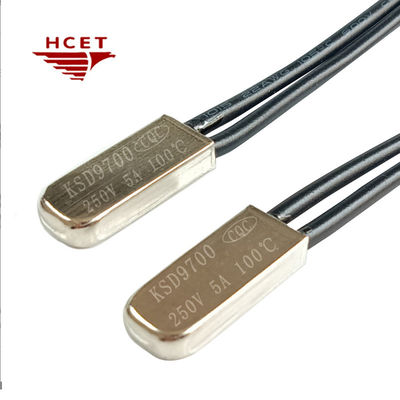

HCET KSD9700/TB05 Bimetal Thermal Switch 8A Motor Overload Protector with Snap-Action for Battery Packs

The HCET KSD9700/TB05 Bimetal Thermal Switch is a precision-engineered temperature and current-sensitive protector designed for reliable overload protection in demanding applications. With its ultra-compact design and high-current capacity (8A/125V AC, 6A/250V AC), this thermal protector ensures optimal safety for motors, transformers, battery packs, and heating appliances.

Featuring a snap-action bimetal disc mechanism, the TB05 series delivers rapid response to temperature fluctuations (±3℃/±5℃ tolerance) within a wide calibration range of 35°C to 160°C. Its rugged construction and silver-plated contacts guarantee durability even in harsh environments, making it ideal for HVAC systems, industrial equipment, and household appliances like electric blankets or coffee makers.

Product Features

Compact Design
Small size (TB05 series) for seamless integration into space-constrained motor housings and battery packs.
High-Current Protection
Handles up to 10A AC/DC loads, safeguarding fractional horsepower motors and power tools from overload damage.
Precision Temperature Control
Bimetal snap-action ensures instant circuit interruption at calibrated trip points (35-160°C customizable).
Multi-Application Versatility
Perfect for AC/DC motors, lighting ballasts, EV battery thermal management, and small appliances.

Electrical Characteristics

35℃~160℃
Temperature Range (Customizable temperature, please contact us.)

±3℃, ±5℃
Temperature Tolerance

8amps/24 volts DC
6amps/250 volts AC
8amps/125 volts DC
Electrical Specifications

Dimensions

Product Details

Applications
