17AM-P Automatic Thermal Cut Out Motor Overload Protector Switch 120V 10A 85°C

Name: 17AM-P Automatic Thermal Cut Out Motor Overload Protector Switch 120V 10A 85°C
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: 17AM
Availability: InStock

Brand Name:	HCET
Model Number:	17AM
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CQC, UL, ROHS, TUV, CE

Document:

17AM.pdf

Product Name:

17AM Thermal Protector

Temperature Range:

50~180℃

Tolerance:

±3℃,±5℃

Voltage:

250V

Current:

<10A

Material:

Metal

Feature:

Snap Action Switch

Application:

AC Motors, Pumps, Compressors

Packaging Details:

5000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

17AM-P automatic thermal cut out

120V 10A automatic thermal cut out

17AM-P thermal motor switch

Product Description

HCET 17AM-P Motor Overload Protector 120V 10A 85°C Thermal Switch Thermostat for AC Motors, Pumps, Compressors

The 17AM series protector is a type of over temperature and over-current protector with small size, large contact capacity, and fast tripping action. It is mainly used for over temperature and over current protection of motors, lamps, and small household appliances.

Product feature:

Dual-Sensitive Protection
Combines temperature and current monitoring to prevent motor burnout from overheating (50°C-180°C range) or electrical overload (up to 10A 250V AC).
Precision-Calibrated
100% factory-calibrated with ±5°C accuracy for reliable thermal cutoff in demanding environments.
Heavy-Duty Snap-Action
Bimetal disc technology ensures **fast response (<1 sec) and 100,000+ cycles lifespan, ideal for HVAC systems, industrial motors, and power tools.
Global Compliance
RoHS & REACH certified; compatible with UL, CE, and IEC standards for worldwide applications.
Customizable Configuration
Choose wire types (PVC/silicone), terminal positions (same/opposite ends), and temperature ratings (50°C-180°C).

Electrical Characteristics:

50℃~180℃

Temperature Range

(Customizable temperature, please contact us.)

±3℃ ±5℃

Temperature Tolerance

20amps/16volts DC
20amps/125 volts DC

10amps/250volts AC

Electrical Specifications

Dimension size

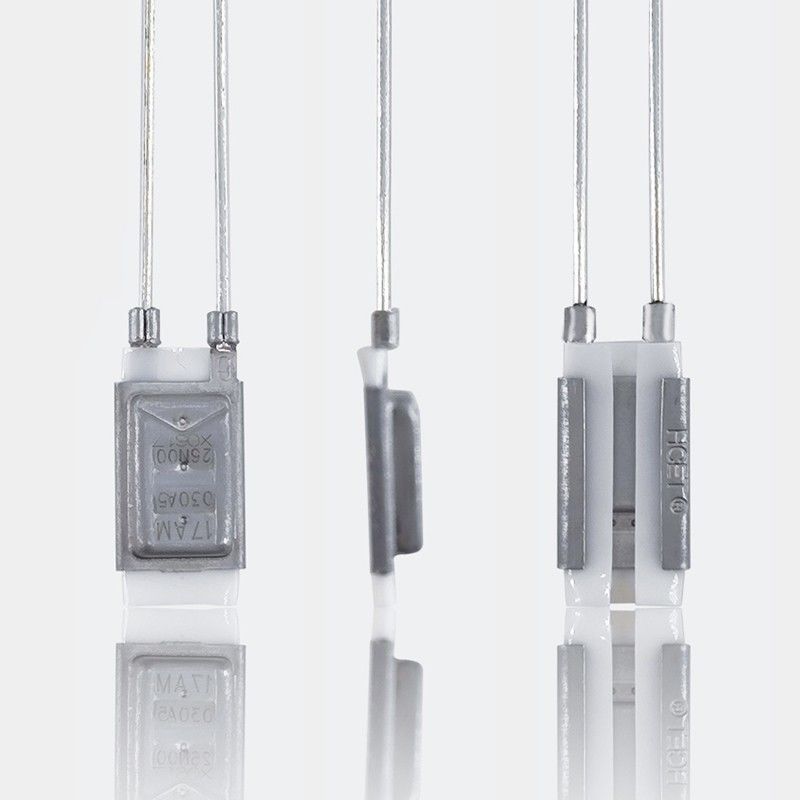

Product detail

Application

17AM-P Automatic Thermal Cut Out Motor Overload Protector Switch 120V 10A 85°C 2
