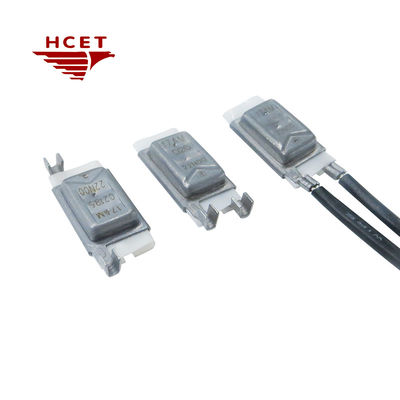

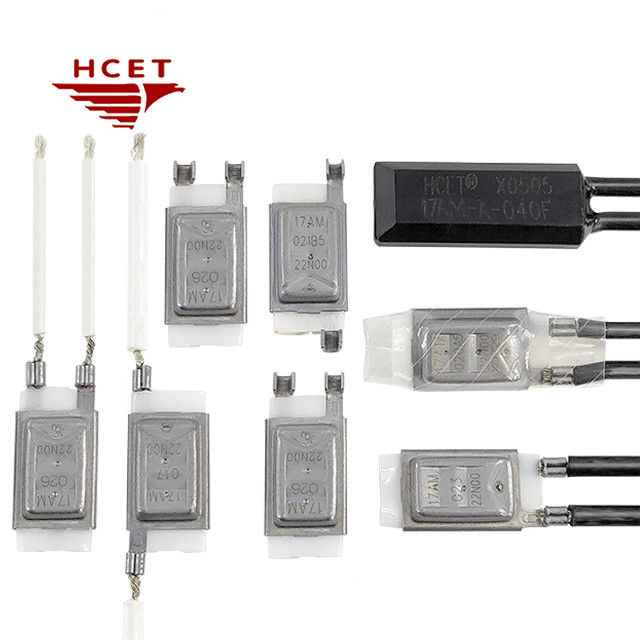

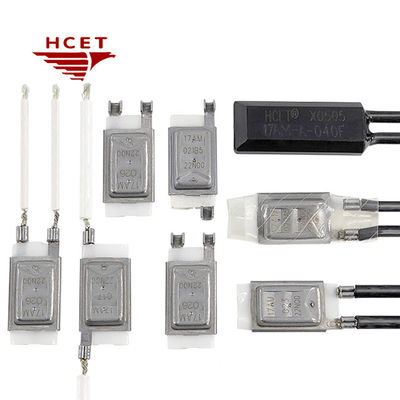

High Temp 17AM Bimetal Thermal Cut Out Thermostat Protector Cutoff Switch

Name: High Temp 17AM Bimetal Thermal Cut Out Thermostat Protector Cutoff Switch
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: 17AM
Availability: InStock

Brand Name:	HCET
Model Number:	17AM
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CQC, UL, ROHS, TUV, CE

Document:

17AM.pdf

Product Name:

17AM Thermal Protector

Temperature Range:

50~180℃

Tolerance:

±3℃,±5℃

Voltage:

250V

Current:

<10A

Material:

Metal

Feature:

Snap Action Switch

Application:

HVAC/Pumps/Lighting Protection

Packaging Details:

5000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

17AM thermal cut out thermostat

thermal cut out thermostat Protector

17AM high temp cut out switch

Product Description

High Temp 17AM Bimetal Thermal Cut Out Thermostat Protector Cutoff Switch

Product Overview

The HCET 17AM series bimetal thermal cutoff switch is a precision-engineered motor protection device combining temperature and current sensitivity. Engineered for demanding applications in industrial motors (up to 20A), HVAC systems, air compressors, and household appliances, this snap-action protector offers UL-certified performance with ±3℃ temperature calibration accuracy.

Key Specifications

Attribute	Value
Product name	17AM thermal protector
Temperature range	50~180℃
Tolerance	±3℃,±5℃
Voltage	250V
Current	<10A
Material	Metal
Feature	Snap action switch
Application	HVAC/Pumps/Lighting Protection

Product Features

Dual-Sensing Technology: Simultaneously monitors temperature (50-180℃ ±5℃) and current with instantaneous snap-action response for motor winding protection
Industrial-Grade Construction: 100,000-cycle durability with silver alloy contacts
Global Compliance Ready: RoHS/TUV compliant | UL file available upon request | CE marking for EU market access
Application Versatility: Suitable for HVAC fan motors, compressor pumps, power tools, ballast protection, and household appliances
Customization Options: Available with various wire types (PVC/silicone), lengths (20-500mm), and terminal configurations

Electrical Characteristics

Temperature Range	50℃~180℃ (Customizable temperature available)
Temperature Tolerance	±3℃, ±5℃
Electrical Specifications	20amps/16volts DC 20amps/125 volts DC 10amps/250volts AC

Product Dimensions

Product Details
