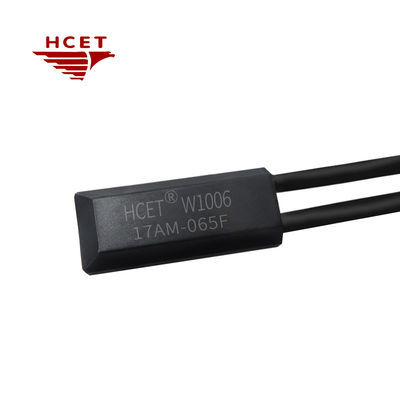

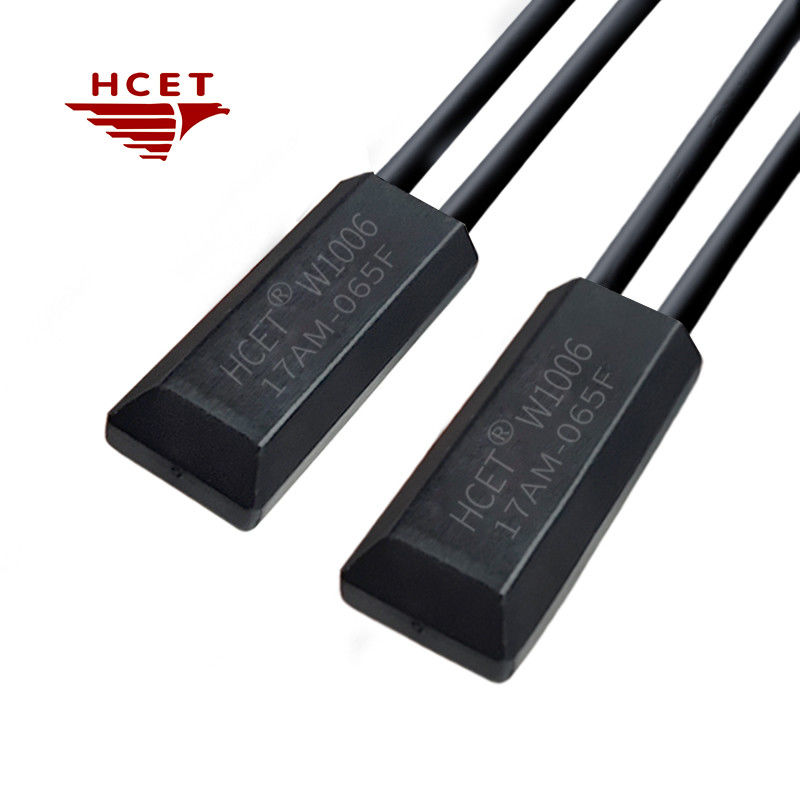

17AM Bimetallic Motor High Temp Cutout Switch Thermal Protection Device Waterproof

Name: 17AM Bimetallic Motor High Temp Cutout Switch Thermal Protection Device Waterproof
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: 17AM
Availability: InStock

Brand Name:	HCET
Model Number:	17AM
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CQC, UL, ROHS, TUV, CE

Document:

17AM.pdf

Product Name:

17AM Thermal Protector

Temperature Range:

50~180℃

Tolerance:

±3℃,±5℃

Voltage:

250V

Current:

<10A

Material:

Metal

Feature:

Snap Action Switch

Application:

Industrial Motors

Packaging Details:

5000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

Bimetallic high temp cutout switch

Waterproof high temp cutout switch

Waterproof motor thermal protection device

Product Description

17AM Bimetallic Motor High Temp Cutout Switch Thermal Protection Device Waterproof

Product Specifications

Attribute	Value
Product name	17AM thermal protector
Temperature range	50~180℃
Tolerance	±3℃,±5℃
Voltage	250V
Current	<10A
Material	Metal
Feature	Snap action switch
Application	Industrial Motors

Product Description

The HCET 17AM series is a precision-engineered bimetallic thermal overload protector designed for critical motor protection across multiple industries. As a direct replacement for KLIXON 17AM series, it delivers superior temperature-current dual sensitivity with enhanced durability.

Key Features

Dual-Sensing Technology: Simultaneously monitors temperature rise and current overload, providing 360° protection for motor windings against burnout.
Industrial Environment Ready: IP67 sealed housing withstands moisture, oil mist and vibration in pumps, compressors and agricultural equipment.
Cross-Industry Application: HVAC Systems: Safeguards condenser/evaporator motors. Automotive: -40℃~150℃ extreme temp tolerance.
Smart Trip Recovery: Automatic reset after cooling, reducing system downtime in production lines.
Global Certification Ready: Pre-certified for UL/TUV/CE compliance - accelerates OEM product approvals.

Electrical Characteristics

Temperature Range	50℃~180℃ (Customizable temperature, please contact us)
Temperature Tolerance	±3℃, ±5℃
Electrical Specifications	20amps/16volts DC 20amps/125 volts DC 10amps/250volts AC
