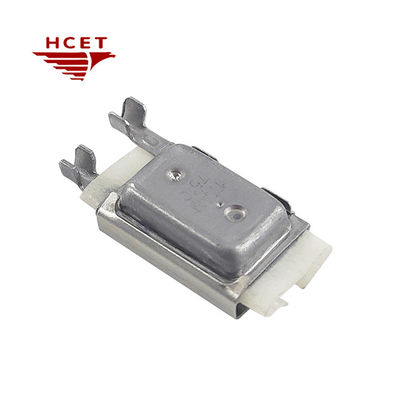

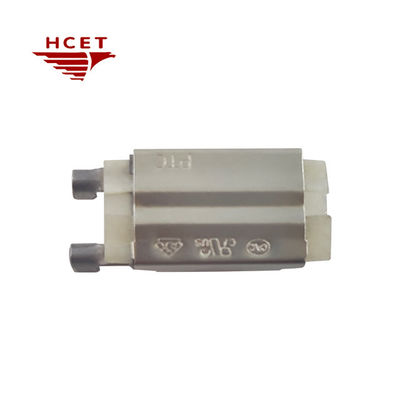

Automatic Snap Action Motor Thermal Overload Switch Cut Out ODM

Brand Name: HCET
Model Number: 17AM
MOQ: 1000
Price: please contact us
Delivery Time: 5-7 work days
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CQC, UL, ROHS, TUV, CE
Document:
17AM.pdf
Product Name:
17AM Thermal Protector
Temperature Range:
50~180℃
Tolerance:
±3℃,±5℃
Voltage:
250V
Current:
<10A
Material:
Metal
Feature:
Snap Action Switch
Application:
HVAC, Pump Motors & Appliances
Packaging Details:
5000 pcs per carton
Supply Ability:
10000000 pcs per month
Highlight:

ODM motor thermal overload switch

,

Snap action motor thermal overload switch

,

ODM automatic thermal cut out

Product Description

HCET 17AM Bimetal Thermal Protector Motor Overload Protection Switch for HVAC, Pump Motors & Appliances


The HCET 17AM Bimetal Thermal Cutoff Switch is an advanced motor protection device engineered to replace Klixon thermal protectors with superior performance. As a dual-sensitive (temperature + current) overload protector, it ensures reliable thermal cutoff for motors, compressors, and electrical equipment in industrial, commercial, and household applications.


Product feature:

  • Industrial-Grade Construction
    Withstands 100,000+ cycles at 125V AC for motors, pumps, and HVAC systems.
  • Multi-Application Flexibility
    Customizable terminal configurations (same/opposite end) and wire lengths (optional PVC/silicone).
  • Global Compliance
    100% RoHS compliant with UL/CE certification for international markets.
  • Precision Temperature Ranges
    Select from 50°C to 180°C (±3°C or ±5°C tolerance) for targeted thermal management.
  • Snap-Action Reliability
    Instant circuit interruption prevents motor burnout in overload conditions.

Electrical Characteristics:

50℃~180℃
Temperature Range
(Customizable temperature, please contact us.)
±3℃  ±5℃
Temperature Tolerance
20amps/16volts DC
20amps/125 volts DC
10amps/250volts AC
Electrical Specifications


Dimension size

Automatic Snap Action Motor Thermal Overload Switch Cut Out ODM 0

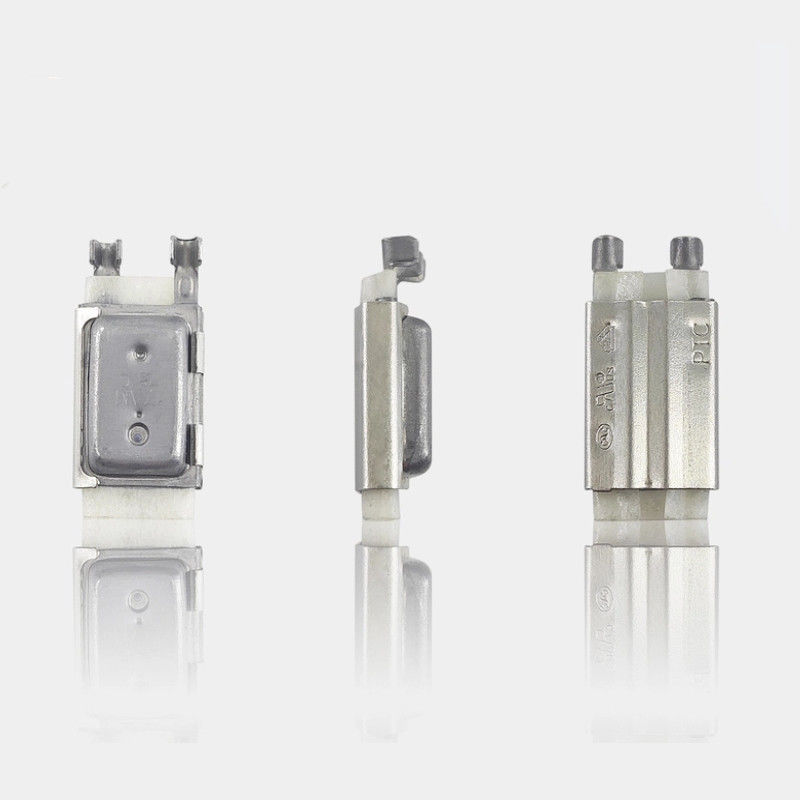

Product detail

Automatic Snap Action Motor Thermal Overload Switch Cut Out ODM 1

Application

Automatic Snap Action Motor Thermal Overload Switch Cut Out ODM 2
