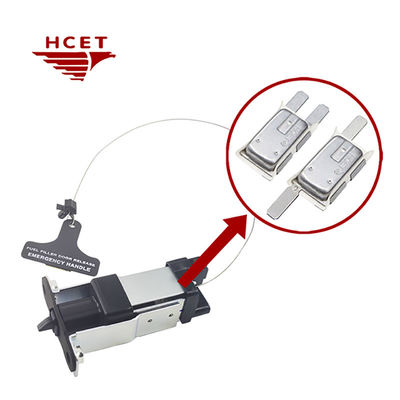

HC01/6AP Bimetal Motor Overload Protector 1-45A Thermal Cutoff Switch Replace KLIXON 3MP Series for Automotive Sliding Door Motor

Name: HC01/6AP Bimetal Motor Overload Protector 1-45A Thermal Cutoff Switch Replace KLIXON 3MP Series for Automotive Sliding Door Motor
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: HC01/6AP
Availability: InStock

Brand Name:	HCET
Model Number:	HC01/6AP
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS

Document:

6AP.pdf

Product Name:

6AP Motor Thermal Protector

Material:

Metal Case

Temperature Range:

30~180℃

Tolerance:

±8℃,±5℃

Voltage:

30V DC / 250V AC

Current:

Customizable

Application:

Automotive Sliding Door Motor

Packaging Details:

20000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

6ap motor thermal protector

6ap motor thermal protection switch

bimetal motor thermal protector

Product Description

HC01/6AP Bimetal Motor Overload Protector 1-45A Thermal Cutoff Switch

Replacement for KLIXON 3MP Series - Automotive Sliding Door Motor Protection

Key Specifications

Product Name: 6AP motor thermal protector

Material: Metal case

Temperature Range: 30~180℃

Tolerance: ±8℃,±5℃

Voltage: 30V DC / 250V AC

Current: Customizable (1-45A range)

Primary Application: Automotive Sliding Door Motor

Product Overview

The HCET HC01/6AP is a high-performance bimetal motor thermal protector designed to replace Sensata KLIXON 3MP series devices. This compact circuit breaker provides reliable overload protection with precise temperature sensitivity (30℃-180℃ adjustable) and current-triggered protection (1-45A range) for motors in automotive, industrial, and household applications.

Key Features

Dual-Sensing Protection: Triggers on both ambient temperature (30-180℃ customizable) and current overload (1-45A range)
Automotive-Grade Reliability: Vibration-resistant construction ideal for windshield wiper motors, sunroof actuators, and door lock systems
Multi-Industry Application: Certified for HVAC compressors, industrial pumps, power tools (15A/30V DC), and home appliances
Custom Configuration: 8 terminal types (A-H) and wire specifications available to match OEM requirements
Safety Compliance: Meets EU RoHS standards with snap-action bimetal mechanism for fail-safe circuit interruption

Electrical Characteristics

Parameter	Specification
Operating Temperature Range	30℃~180℃ (Customizable)
Action Time	4S~10S (Customizable)
Temperature Tolerance	±5°C, ±8℃
Current Tripping Range	1A~45A (Customizable)
Electrical Ratings	45A/15V DC • 15A/30V DC • 25A/250V AC • 30A/125V AC

Product Dimensions

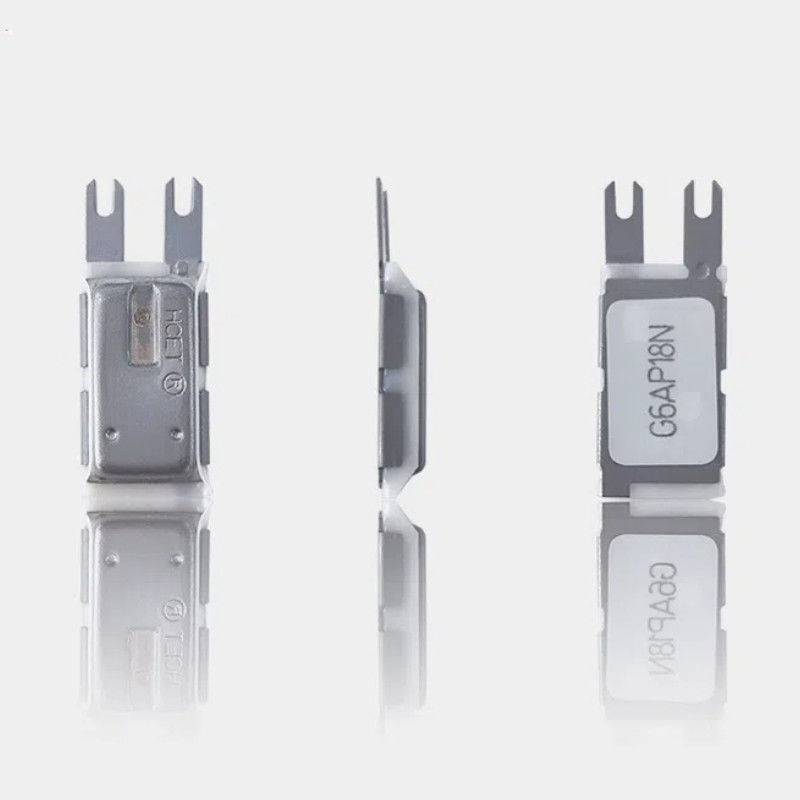

Product Details

Typical Applications
