HC01/6AP Bimetal Motor Thermal Protector Compact Motor Overload Circuit Breaker For New Energy Vehicles Motors

Name: HC01/6AP Bimetal Motor Thermal Protector Compact Motor Overload Circuit Breaker For New Energy Vehicles Motors
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: HC01/6AP
Availability: InStock

Brand Name:	HCET
Model Number:	HC01/6AP
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS

Document:

6AP.pdf

Product Name:

6AP Motor Thermal Protector

Material:

Metal Case

Temperature Range:

30~180℃

Tolerance:

±8℃,±5℃

Voltage:

30V DC / 250V AC

Current:

Customizable

Application:

New Energy Vehicles Motors

Packaging Details:

20000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

bimetal motor thermal protector

6ap motor thermal protector

6ap motor thermal protection switch

Product Description

HC01/6AP Bimetal Motor Thermal Protector Compact Motor Overload Circuit Breaker For New Energy Vehicles Motors

The HC01/6AP bimetal thermal overload protector is a high-performance motor protection device designed for precision current and temperature monitoring. Combining a snap-action bimetal disc and advanced heating element technology, it ensures rapid response to overloads in automotive motors (EVs, sunroofs, wipers), industrial equipment, and home appliances (washing machines, vacuums). With RoHS-compliant materials and ±5℃ temperature tolerance, this protector delivers 30,000+ operation cycles to prevent motor burnout in extreme conditions.

Product feature:

Dual-Sensitive Protection
Simultaneously monitors current (1-45A) and action temperature (30-180℃ customizable) through bimetal disc deformation and joule heating.
Smart Terminal Options

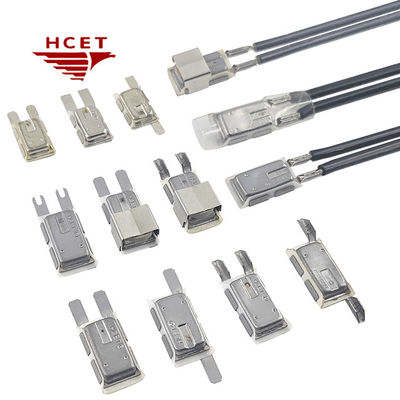

Supports 8 terminal configurations (opposite/same insert/terminal) for flexible PCB/lead wire integration
Technical Superiority:
- Trip Time: 4-10s 200% rated current
- Contact Rating: 8A/250VAC
- Cycle Life: 30,000 operations minimum

Electrical Characteristics:

30℃~180℃ Operating temperature range, Customizable temperature.	4S~10S Special action time can be customized
±5°C, ±8℃ Temperature Tolerance	1A~45A The overload current tripping range can be customized according to customer's requirements.

45amps/15 volts DC 15amps/30 volts DC

25amps/250 volts AC 30amps/125 volts AC
Electrical characteristics

Dimension size

HC01/6AP Bimetal Motor Thermal Protector Compact Motor Overload Circuit Breaker For New Energy Vehicles Motors 0

HC01/6AP Bimetal Motor Thermal Protector Compact Motor Overload Circuit Breaker For New Energy Vehicles Motors 1

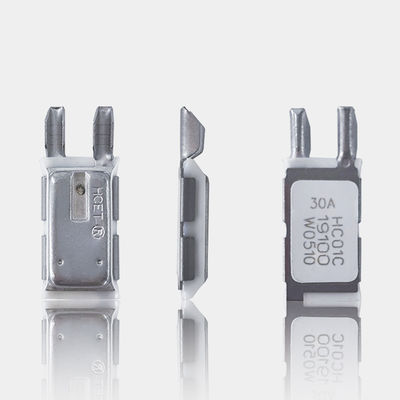

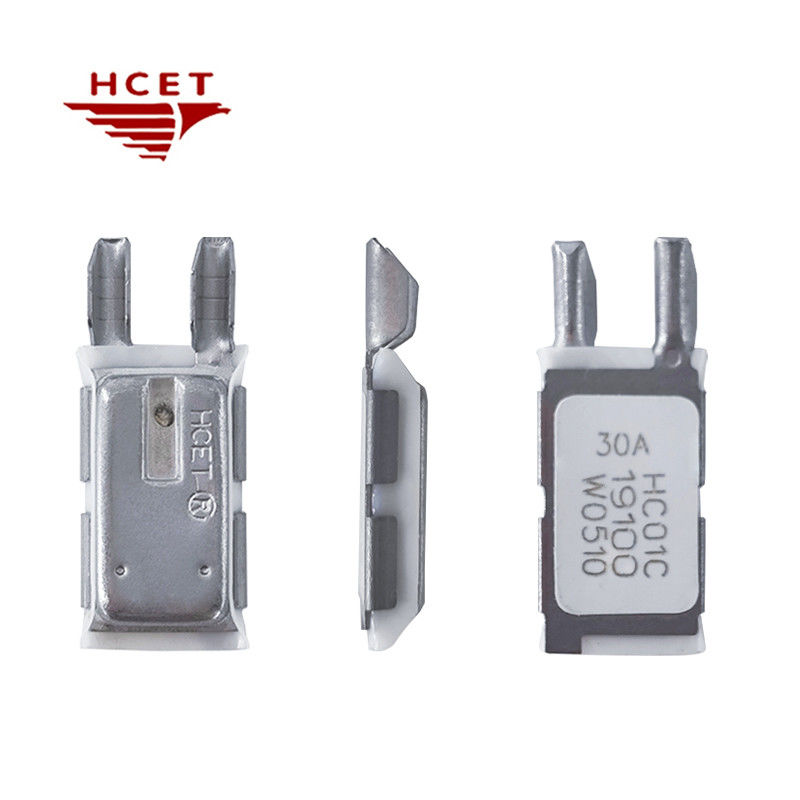

Product detail

HC01/6AP Bimetal Motor Thermal Protector Compact Motor Overload Circuit Breaker For New Energy Vehicles Motors 2

HC01/6AP Bimetal Motor Thermal Protector Compact Motor Overload Circuit Breaker For New Energy Vehicles Motors 3

Application

HC01/6AP Bimetal Motor Thermal Protector Compact Motor Overload Circuit Breaker For New Energy Vehicles Motors 4
