HCET HC01-6AP Bimetal Motor Overload Protector 45A Thermal Cutoff Switch for Automotive, Washing machine motors

Name: HCET HC01-6AP Bimetal Motor Overload Protector 45A Thermal Cutoff Switch for Automotive, Washing machine motors
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: HC01/6AP
Availability: InStock

Brand Name:	HCET
Model Number:	HC01/6AP
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS

Document:

6AP.pdf

Product Name:

6AP Motor Thermal Protector

Material:

Metal Case

Temperature Range:

30~180℃

Tolerance:

±8℃,±5℃

Voltage:

30V DC / 250V AC

Current:

Customizable

Application:

Automotive, Washing Machine Motors

Packaging Details:

20000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

6ap motor thermal protector

6ap motor thermal protection switch

bimetal motor thermal protector

Product Description

HCET HC01-6AP Bimetal Motor Overload Protector 45A Thermal Cutoff Switch for Automotive, Washing machine motors

The HCET HC01-6AP bimetal motor overload protector is a precision-engineered thermal cutoff device designed to safeguard electric motors from overheating and current overloads. Combining bimetal snap-action technology with ambient temperature sensitivity, this compact protector ensures reliable operation in automotive, industrial, and household applications. With a tripping current range of 1-45A and customizable temperature settings (30°C–180°C ±5°C), it delivers fast response times (4–10 seconds) to prevent motor burnout while complying with strict RoHS environmental standards. Ideal for window regulators, windshield wipers, washing machines, and HVAC systems.

Product feature:

Dual-Sensing Protection
Precisely monitors both current overloads and ambient temperature to prevent motor damage.
High-Capacity Performance
Rated for 45A DC/28A AC operation, supporting heavy-duty motors in automotive and industrial equipment.
Fast-Acting Bimetal Technology
Snap-action mechanism ensures rapid tripping (4–10s) to halt overheating before critical failure.
Customizable Configurations
Choose from 8 terminal types and optional wire connections for flexible installation.
Wide Application Range
- Automotive: Window lift motors, sunroofs, windshield wipers, door locks.
- Appliances: Washing machines, vacuum cleaners, HVAC systems.
- Industrial: Pumps, compressors, gardening tools.
Extended Lifespan
Robust construction with30,000+ cycles ensures durability in high-vibration environments.
Global Compliance
Meets RoHS standards for eco-conscious manufacturing and international market acceptance.

Electrical Characteristics:

30℃~180℃ Operating temperature range, Customizable temperature.	4S~10S Special action time can be customized
±5°C, ±8℃ Temperature Tolerance	1A~45A The overload current tripping range can be customized according to customer's requirements.

45amps/15 volts DC 15amps/30 volts DC

25amps/250 volts AC 30amps/125 volts AC
Electrical characteristics

Dimension size

HCET HC01-6AP Bimetal Motor Overload Protector 45A Thermal Cutoff Switch for Automotive, Washing machine motors 0

HCET HC01-6AP Bimetal Motor Overload Protector 45A Thermal Cutoff Switch for Automotive, Washing machine motors 1

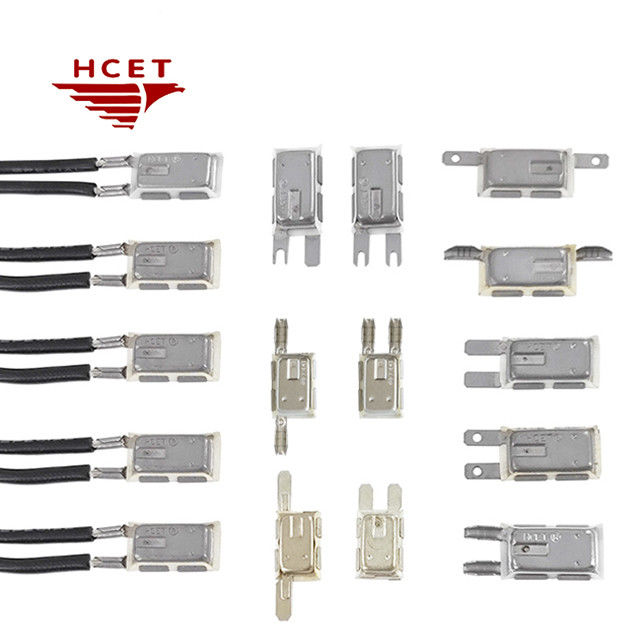

Product detail

HCET HC01-6AP Bimetal Motor Overload Protector 45A Thermal Cutoff Switch for Automotive, Washing machine motors 2

HCET HC01-6AP Bimetal Motor Overload Protector 45A Thermal Cutoff Switch for Automotive, Washing machine motors 3

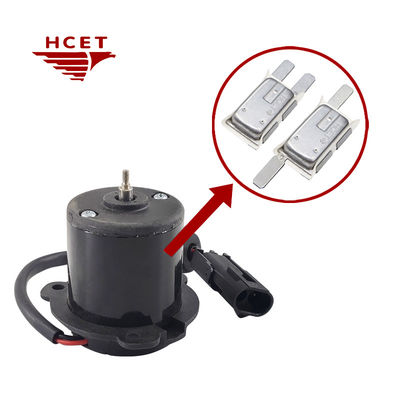

Application

HCET HC01-6AP Bimetal Motor Overload Protector 45A Thermal Cutoff Switch for Automotive, Washing machine motors 4
