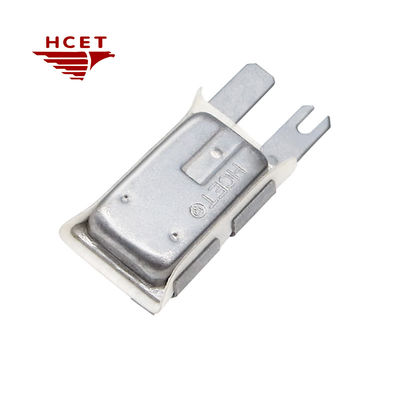

HCET 6AP 19116 Bimetal Motor Overload Protector 15A 125-250V AC/DC Thermal Cutoff Switch for Seat Motor

Name: HCET 6AP 19116 Bimetal Motor Overload Protector 15A 125-250V AC/DC Thermal Cutoff Switch for Seat Motor
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: HC01/6AP
Availability: InStock

Brand Name:	HCET
Model Number:	HC01/6AP
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS

Document:

6AP.pdf

Product Name:

6AP Motor Thermal Protector

Material:

Metal Case

Temperature Range:

30~180℃

Tolerance:

±8℃,±5℃

Voltage:

30V DC / 250V AC

Current:

Customizable

Application:

Seat Motor

Packaging Details:

20000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

6ap motor thermal protector

6ap motor thermal protection switch

bimetal motor thermal protector

Product Description

HCET 6AP 19116 Bimetal Motor Overload Protector 15A 125-250V AC/DC Thermal Cutoff Switch for Seat Motor

Product Specifications

Attribute	Value
Product name	6AP motor thermal protector
Material	Metal case
Temperature range	30~180℃
Tolerance	±8℃,±5℃
Voltage	30V DC / 250V AC
Current	Customizable
Application	Seat Motor

Product Description

HCET 6AP Series: Precision Motor Protection for Demanding Applications. As a direct replacement for KLIXON and Sensata thermal protectors, the HC01/6AP bimetal overload protector delivers industrial-grade protection with automotive precision. Engineered for 30,000+ cycles operation, this current & temperature-sensitive device prevents motor burnout.

Key Features

Critical Applications

Automotive Systems: Sunroof actuators, windshield wiper motors, power window regulators
HVAC Equipment: Blower motors, compressor units, ventilation systems
Industrial Machinery: Conveyor motors, pump drives, automated production lines
Home Appliances: Washing machine motors, vacuum cleaners, power tools

Performance Highlights

Dual Protection: Responds to both overcurrent (1-45A adjustable) and ambient heat (30-180°C)
Military-Grade Bimetal: Withstands 28A 250V AC / 30A 125V AC continuous operation
Fast Trip Response: 4-10 second cutoff prevents insulation degradation
RoHS Compliant: Lead-free construction meets EU environmental directives

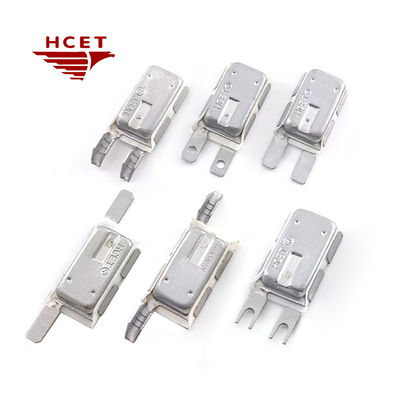

Customizable: Optional terminal types (A-H) and wire configurations

Electrical Characteristics

30℃~180℃

Operating temperature range, Customizable temperature.

4S~10S

Special action time can be customized

± 5°C, ±8℃

Temperature Tolerance

1A~45A

The overload current tripping range can be customized according to customer's requirements.

Electrical characteristics:
45amps/15 volts DC
15amps/30 volts DC
25amps/250 volts AC
30amps/125 volts AC

Dimensions

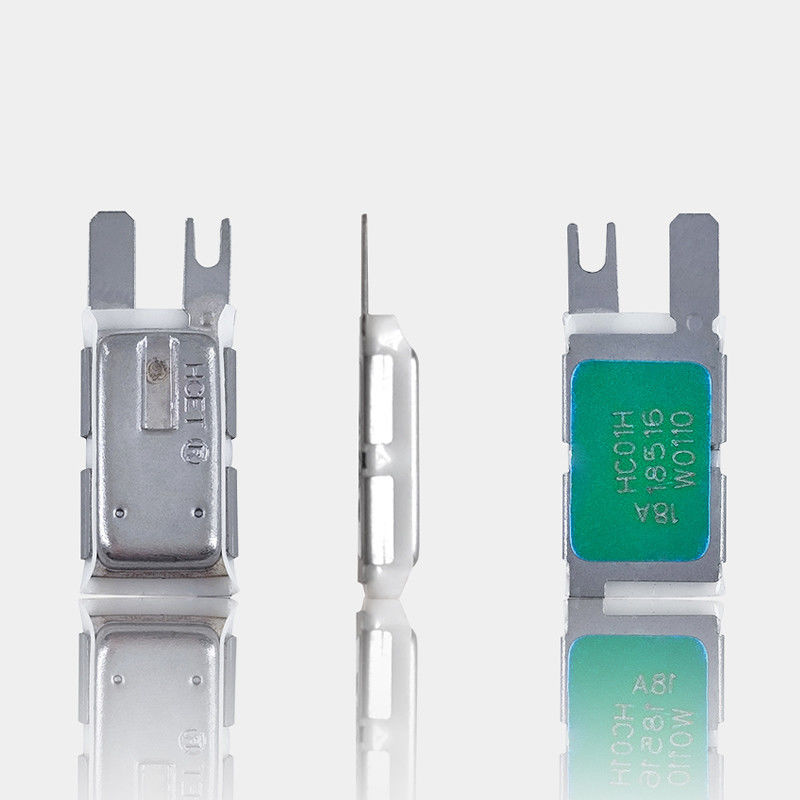

Product Details

Applications

Tags:

HC01/6AP Bimetal Motor Overload Protector Automotive Grade Current Protection for Wiper Motors, Home Appliances, HVAC Systems
