Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Motor Thermal Protector
Created with Pixso. Cutoff DC AC Motor Winding Thermal Protection Circuit Breaker HC01 6AP 1A-45A
Name
  • Name
  • Name
  • Name
  • Name

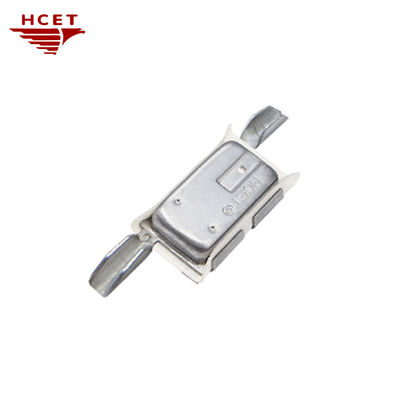

Cutoff DC AC Motor Winding Thermal Protection Circuit Breaker HC01 6AP 1A-45A

Brand Name: HCET
Model Number: HC01/6AP
MOQ: 1000
Price: please contact us
Delivery Time: 5-7 work days
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ROHS
Document:
6AP.pdf
Product Name:
6AP Motor Thermal Protector
Material:
Metal Case
Temperature Range:
30~180℃
Tolerance:
±8℃,±5℃
Voltage:
30V DC / 250V AC
Current:
Customizable
Application:
DC/AC Motors
Packaging Details:
20000 pcs per carton
Supply Ability:
10000000 pcs per month
Highlight:

Cutoff motor winding thermal protection

,

6AP motor winding thermal protection

,

6AP ac thermal protector

Product Description
Cutoff DC AC Motor Winding Thermal Protection Circuit Breaker HC01 6AP 1A-45A
Product Specifications
Attribute Value
Product name 6AP motor thermal protector
Material Metal case
Temperature range 30~180℃
Tolerance ±8℃,±5℃
Voltage 30V DC / 250V AC
Current Customizable
Application DC/AC Motors
Product Description

HC01/6AP Bimetal Motor Overload Protector KLIXON Replacement 1-45A Thermal Cutoff Circuit Breaker for DC/AC Motors

HCET HC01/6AP bimetal overload protector is engineered for intelligent thermal management in 12-250V systems. Combining current-sensing and ambient temperature detection, this UL-certified device delivers 30,000+ operation cycles with ±3% current tolerance for critical motor protection.

Technical Superiority
  • Dual Protection: Current (1-45A DC / 28A AC) + Temperature (30-180°C customizable)
  • Ultra-Fast Response: 4-10s trip time prevents motor burnout
  • Robust Construction: Bimetal withstands 45A current
Industry Applications
Automotive Electronics
  • Window/sunroof drive motors
  • Wiper systems (front and rear windshield)
  • Electric sliding door actuator
Home Appliances
  • Washing machine pump motor protection
  • Vacuum cleaner turbine overheat protection
  • Refrigerator compressor safety control
Industrial Equipment
  • Gardening tool motor protection
  • CNC cooling system monitoring
  • Conveyor drive unit protection
Competitive Advantages
  • Plug-and-Play KLIXON replacement (compatible with HC01/6AP specifications)
  • 8 Terminal Customization Options (Flexible A-E Terminal Configuration)
  • Highly accurate temperature sensitivity of ±5°C (better than industry standard)
Electrical Characteristics
30℃~180℃
Operating temperature range, Customizable temperature
4S~10S
Special action time can be customized
± 5°C, ±8℃
Temperature Tolerance
1A~45A
The overload current tripping range can be customized according to customer's requirements

Electrical characteristics:

45amps/15 volts DC

15amps/30 volts DC

25amps/250 volts AC

30amps/125 volts AC

Dimensions
Cutoff DC AC Motor Winding Thermal Protection Circuit Breaker HC01 6AP 1A-45A 0
Cutoff DC AC Motor Winding Thermal Protection Circuit Breaker HC01 6AP 1A-45A 1

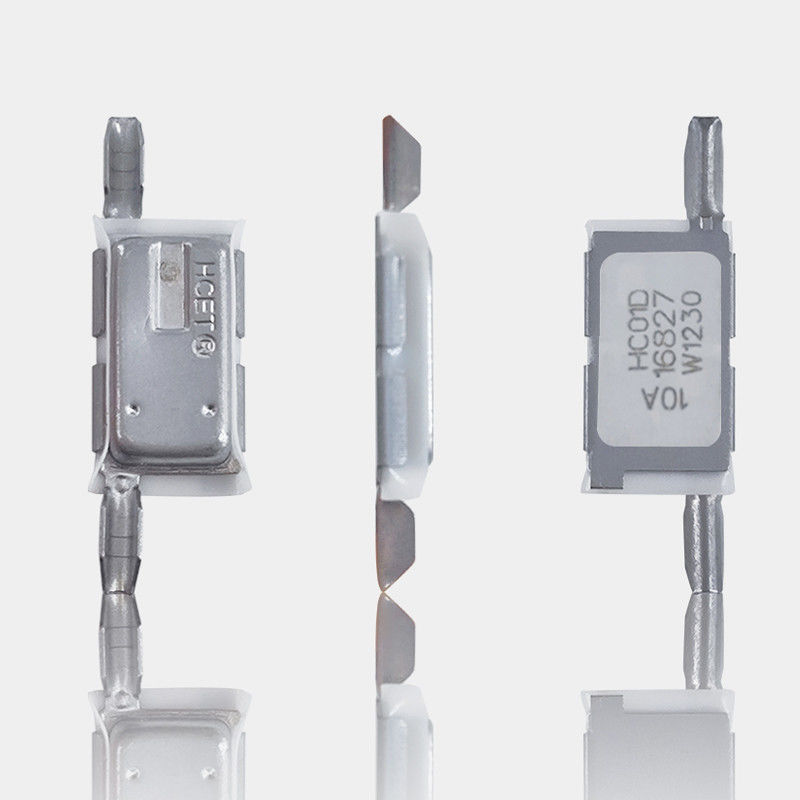

Product Details
Cutoff DC AC Motor Winding Thermal Protection Circuit Breaker HC01 6AP 1A-45A 2
Cutoff DC AC Motor Winding Thermal Protection Circuit Breaker HC01 6AP 1A-45A 3
Application Examples
Cutoff DC AC Motor Winding Thermal Protection Circuit Breaker HC01 6AP 1A-45A 4
Tags:

motor winding thermal protection

ac thermal protector

thermal overload protection switch
