HC01/6AP Bimetallic Overload Protector Replace Sensata/Klixon Automotive Motor Thermal Switch for Sunroof/Wiper Motor

Name: HC01/6AP Bimetallic Overload Protector Replace Sensata/Klixon Automotive Motor Thermal Switch for Sunroof/Wiper Motor
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: HC01/6AP
Availability: InStock

Brand Name:	HCET
Model Number:	HC01/6AP
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS

Document:

6AP.pdf

Product Name:

6AP Motor Thermal Protector

Material:

Metal Case

Temperature Range:

30~180℃

Tolerance:

±8℃,±5℃

Voltage:

30V DC / 250V AC

Current:

Customizable

Application:

Sunroof/Wiper Motor

Packaging Details:

20000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

6ap motor thermal protector

6ap motor thermal protection switch

bimetallic motor thermal protector

Product Description

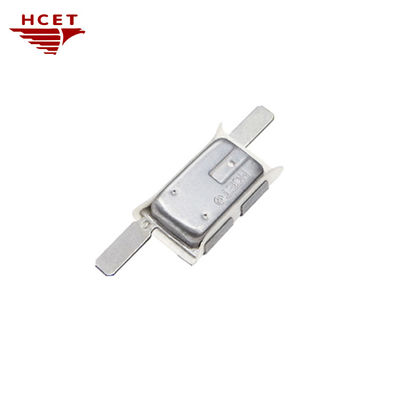

HC01/6AP Bimetallic Overload Protector Replace Sensata/Klixon Automotive Motor Thermal Switch for Sunroof/Wiper Motor

The HC01/6AP is a dual-sensitive bimetallic motor overload protector designed for AC/DC applications, combining current and ambient temperature detection to prevent motor overheating. This compact thermal switch provides precise tripping (4-10s) with customizable current (1-45A) and temperature settings (30-180℃±5℃), ensuring reliable protection for automotive systems (sunroofs, wipers, sliding doors), home appliances (washing machines, vacuum cleaners), and industrial equipment. Fully compliant with RoHS environmental requirements, it offers a direct replacement for Sensata/Klixon series with enhanced durability (30,000+ cycles) and snap-action bimetal technology.

Product feature:

Dual Protection Mechanism
- Current-sensitive + Temperature-sensitive detection for multi-scenario motor safety.
- Bimetal snap-action technology ensures fast response to overloads (4-10s tripping).
Precision Engineering
- Customizable trip current (1-45A) and temperature (30-180℃, ±5℃ tolerance).
- Withstands 45A/15VDC, 30A/125VAC, and 28A/250VAC for heavy-duty applications.
Automotive-Grade Reliability
- Ideal for sunroof motors, windshield wipers, sliding door actuators, and window regulators.
- Vibration-resistant design for harsh vehicle environments.
Cross-Industry Versatility
- Home Appliances: Washing machines, vacuum cleaners, refrigerators.
- Industrial: Garden tools, pumps, compressors, HVAC systems.
Cost-Effective Replacement
- Direct replacement for Sensata (Klixon) 6AP series with extended lifecycle (30k+ cycles).
- 100% tested for dielectric strength and insulation resistance.

Electrical Characteristics:

30℃~180℃ Operating temperature range, Customizable temperature.	4S~10S Special action time can be customized
±5°C, ±8℃ Temperature Tolerance	1A~45A The overload current tripping range can be customized according to customer's requirements.

45amps/15 volts DC 15amps/30 volts DC

25amps/250 volts AC 30amps/125 volts AC
Electrical characteristics

Dimension size

HC01/6AP Bimetallic Overload Protector Replace Sensata/Klixon Automotive Motor Thermal Switch for Sunroof/Wiper Motor 0

HC01/6AP Bimetallic Overload Protector Replace Sensata/Klixon Automotive Motor Thermal Switch for Sunroof/Wiper Motor 1

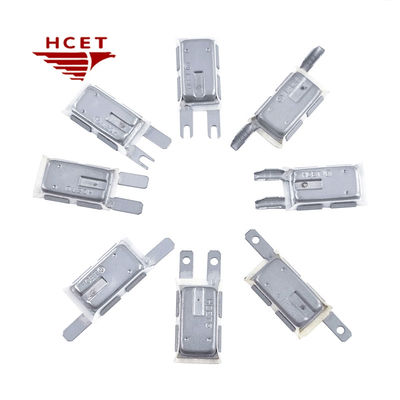

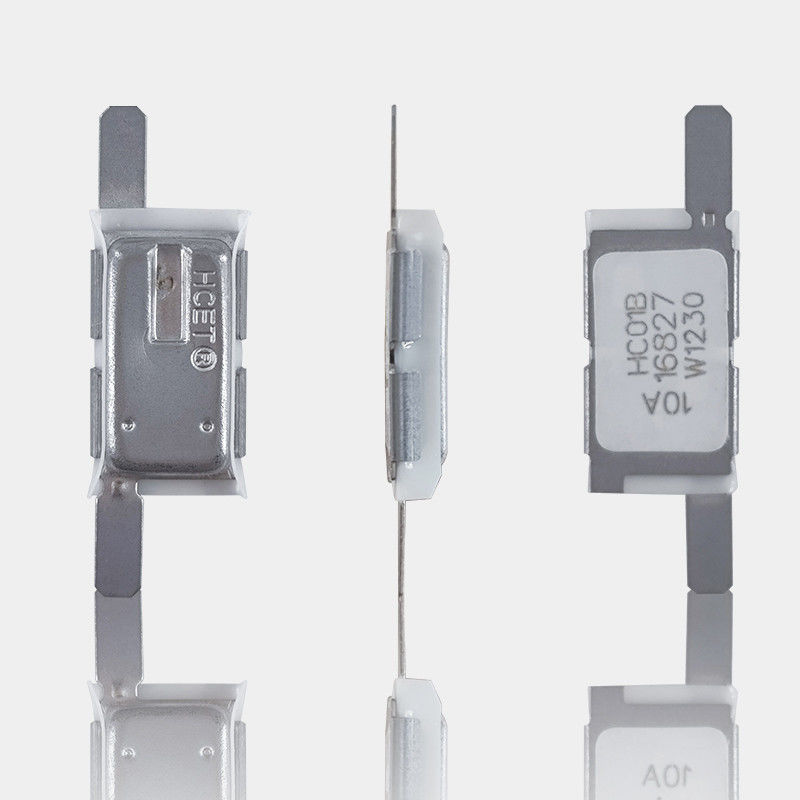

Product detail

HC01/6AP Bimetallic Overload Protector Replace Sensata/Klixon Automotive Motor Thermal Switch for Sunroof/Wiper Motor 2

HC01/6AP Bimetallic Overload Protector Replace Sensata/Klixon Automotive Motor Thermal Switch for Sunroof/Wiper Motor 3

Application

HC01/6AP Bimetallic Overload Protector Replace Sensata/Klixon Automotive Motor Thermal Switch for Sunroof/Wiper Motor 4
