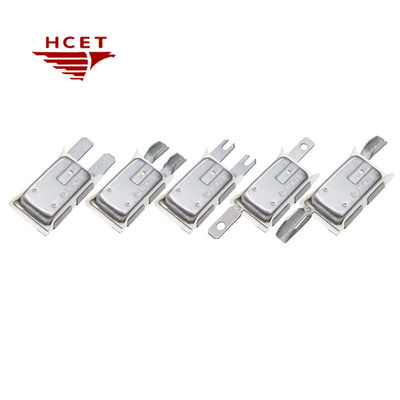

HC01/6AP Bimetal Motor Overload Protector Automotive Grade Thermal Cutoff Switch for Window Motors, Wipers, Appliances

Name: HC01/6AP Bimetal Motor Overload Protector Automotive Grade Thermal Cutoff Switch for Window Motors, Wipers, Appliances
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: HC01/6AP
Availability: InStock

Brand Name:	HCET
Model Number:	HC01/6AP
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS

Document:

6AP.pdf

Product Name:

6AP Motor Thermal Protector

Material:

Metal Case

Temperature Range:

30~180℃

Tolerance:

±8℃,±5℃

Voltage:

30V DC / 250V AC

Current:

Customizable

Application:

Window Motors, Wipers, Appliances

Packaging Details:

20000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

6ap motor thermal protector

6ap motor thermal protection switch

bimetal motor thermal protector

Product Description

HC01/6AP Bimetal Motor Overload Protector Automotive Grade Thermal Cutoff Switch for Window Motors, Wipers, Appliances

The HCET HC01/6AP is a precision-engineered bimetal motor overload protector designed for critical circuit protection in automotive systems and industrial appliances. Combining current sensitivity with ambient thermal response, this compact safeguard prevents motor burnout by tripping within 4-10 seconds of overload conditions (1-45A range). The patented bimetal actuator ensures rapid response to both electrical overloads (up to 28A/250V AC) and temperature spikes (30-180℃ customizable).
Ideal for automotive window regulators, windshield wiper motors, and home appliances requiring UL-grade protection. Custom terminal configurations (opposite/same insert) and wire options available for seamless OEM integration.

Product feature:

Dual-Sensing Protection
Patented bimetal disc technology reacts to both current (1-45A DC/AC) and ambient heat (±5℃ precision)
Automotive-Grade Endurance
Withstands 30,000+ cycles - 3X industry standard for window lift motors and sliding door actuators
Global Compliance
RoHS certified | 28A/250V AC & 45A/15V DC ratings
Smart Thermal Management
4-10 second trip time prevents motor winding damage while maintaining continuous operation
Universal Replacement
Direct KLIXON substitute with enhanced thermal calibration (30-180℃ customizable range)
OEM Flexibility

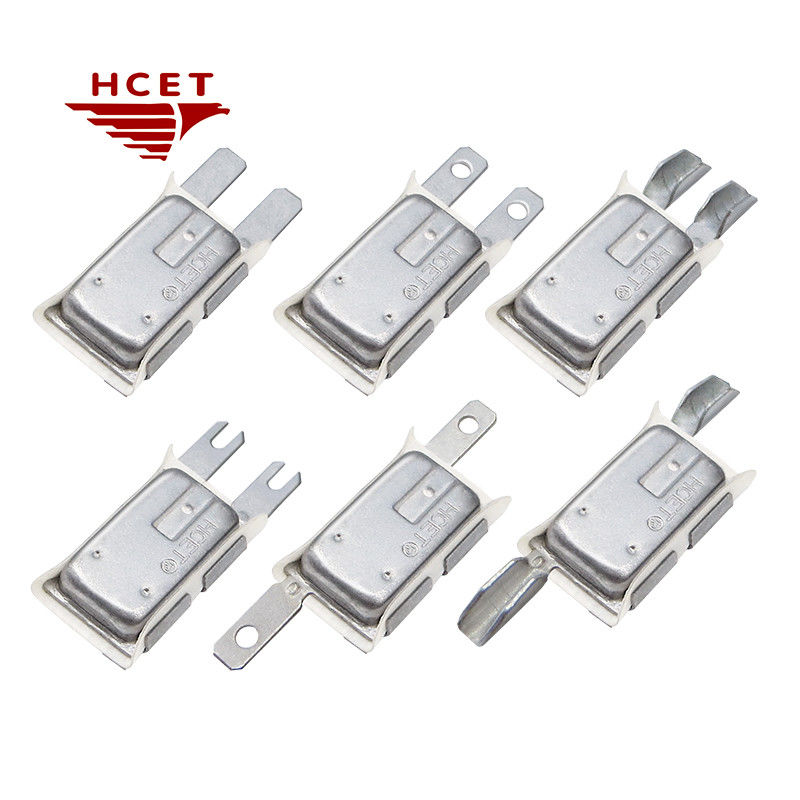

8 terminal configurations + custom wire lengths

Electrical Characteristics:

30℃~180℃ Operating temperature range, Customizable temperature.	4S~10S Special action time can be customized
±5°C, ±8℃ Temperature Tolerance	1A~45A The overload current tripping range can be customized according to customer's requirements.

45amps/15 volts DC 15amps/30 volts DC

25amps/250 volts AC 30amps/125 volts AC
Electrical characteristics

Dimension size

HC01/6AP Bimetal Motor Overload Protector Automotive Grade Thermal Cutoff Switch for Window Motors, Wipers, Appliances 0

HC01/6AP Bimetal Motor Overload Protector Automotive Grade Thermal Cutoff Switch for Window Motors, Wipers, Appliances 1

Product detail

HC01/6AP Bimetal Motor Overload Protector Automotive Grade Thermal Cutoff Switch for Window Motors, Wipers, Appliances 2

HC01/6AP Bimetal Motor Overload Protector Automotive Grade Thermal Cutoff Switch for Window Motors, Wipers, Appliances 3

Application

HC01/6AP Bimetal Motor Overload Protector Automotive Grade Thermal Cutoff Switch for Window Motors, Wipers, Appliances 4
