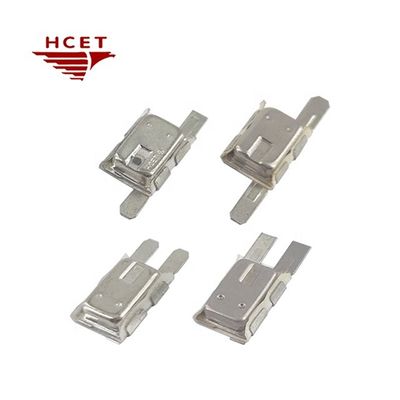

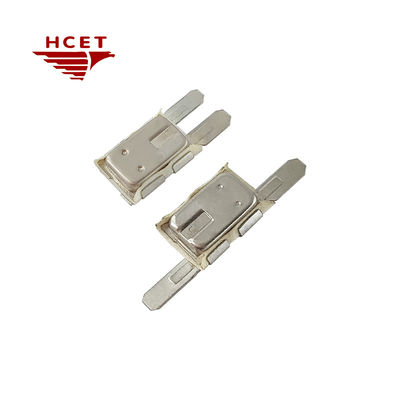

ODM Bimetal Overload Motor Thermal Protector Switch HCET 5AP 20A

Name: ODM Bimetal Overload Motor Thermal Protector Switch HCET 5AP 20A
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: 5AP/2MP
Availability: InStock

Brand Name:	HCET
Model Number:	5AP/2MP
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL, ROHS

Document:

5ap.pdf

Product Name:

5AP Motor Thermal Protector

Material:

Metal Case

Temperature Range:

50~180℃

Tolerance:

±8℃,±10℃

Voltage:

15V/30V DC

Current:

Customizable

Application:

Appliance Motors, Automotive & Industrial Equipment

Packaging Details:

20000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

ODM Motor Thermal Protector

20A Motor Thermal Protector

ODM bimetal thermal protector

Product Description

HCET 5AP Bimetal Thermal Overload Protector 1-25A Motor Protection Switch for Appliance Motors, Automotive & Industrial Equipment

The HCET 5AP Series Bimetal Thermal Overload Protector is a high-precision dual-sensing (current + temperature) motor protection device designed to safeguard motors from overheating and electrical failures. Engineered with advanced bimetal technology, it ensures reliable operation in automotive systems (window lift motors, wiper motors, sunroof drives), household appliances (blenders, power tools), and industrial equipment.

Product feature:

Dual-Sensing Protection
- Current-Sensitive: Triggers within 4-10 seconds at 1-25A overload.
- Temperature-Sensitive: Wide calibration range (50℃-180℃, ±5℃/±8℃ tolerance) prevents motor burnout.
Robust Compatibility
- Supports 12A/125V AC to 25A/15V DC, ideal for low-voltage automotive and high-power industrial applications.
- Customizable terminals and wiring configurations for seamless integration.
Premium Reliability
- 30,000+ cycle lifespan with compact, vibration-resistant design.
Cross-Industry Applications
- Automotive: Window lift motors, sunroof actuators, wiper systems, door lock mechanisms.
- Home & Industry: Blenders, HVAC fans, pumps, power tools, conveyor belt motors.

Electrical Characteristics:

50℃~180℃ Operating temperature range, Customizable temperature.	4S~10S Special action time can be customized
±8°C, ±10℃ Temperature Tolerance	1A~25A The overload current tripping range can be customized according to customer's requirements.

25amps/15 volts DC 15amps/30 volts DC
Electrical characteristics

Dimension size

ODM Bimetal Overload Motor Thermal Protector Switch HCET 5AP 20A 0

ODM Bimetal Overload Motor Thermal Protector Switch HCET 5AP 20A 1

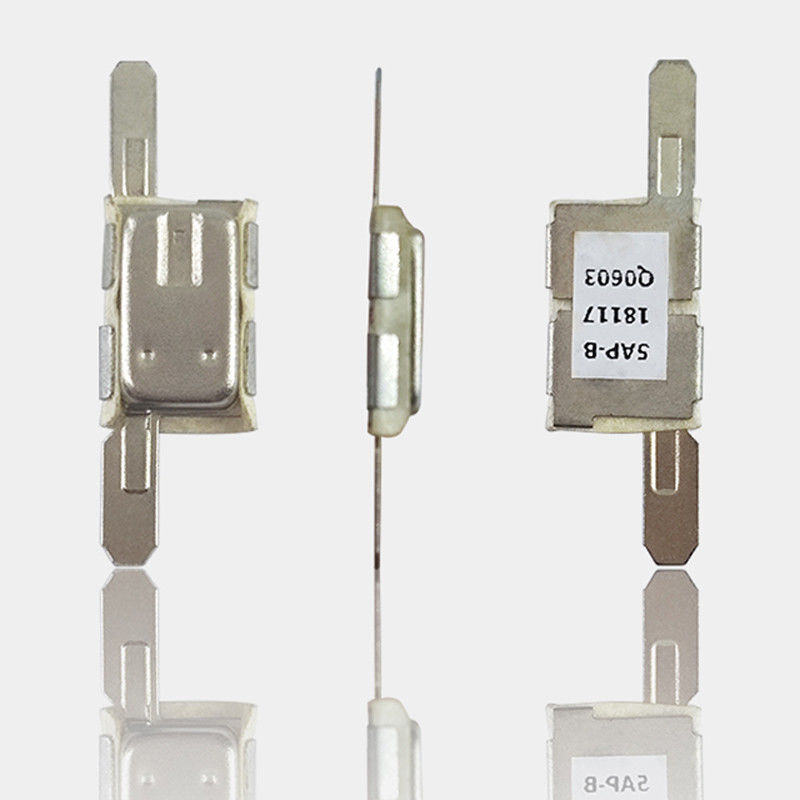

Product detail

ODM Bimetal Overload Motor Thermal Protector Switch HCET 5AP 20A 2

Application

ODM Bimetal Overload Motor Thermal Protector Switch HCET 5AP 20A 3
