Motor Thermal Protector
Created with Pixso. OEM Bimetal Motor Thermal Protector Cutoff Switch Device 15A For Door Lock Systems
Name
  • Name
  • Name
  • Name

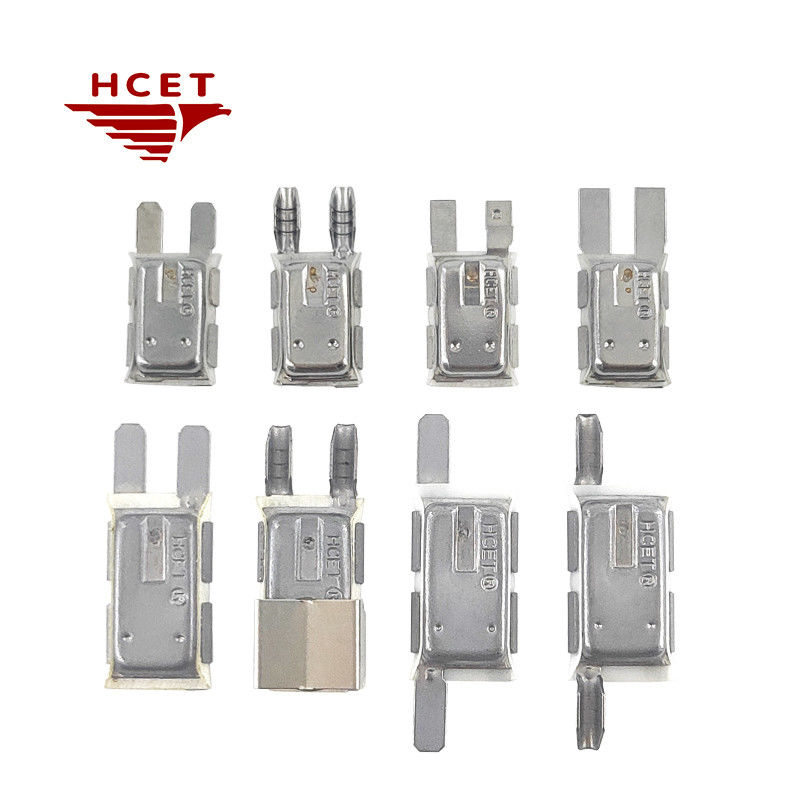

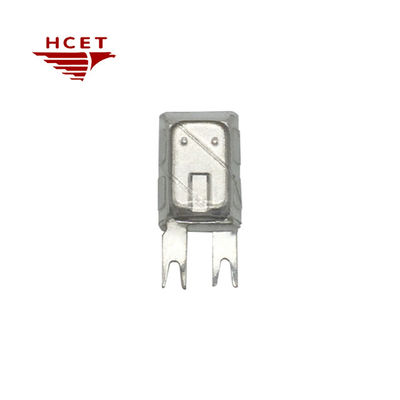

OEM Bimetal Motor Thermal Protector Cutoff Switch Device 15A For Door Lock Systems

Brand Name: HCET
Model Number: 5AP/2MP
MOQ: 1000
Price: please contact us
Delivery Time: 5-7 work days
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
UL, ROHS
Document:
5ap.pdf
Product Name:
5AP Motor Thermal Protector
Material:
Metal Case
Temperature Range:
50~180℃
Tolerance:
±8℃,±10℃
Voltage:
15V/30V DC
Current:
Customizable
Application:
Window Lift Motor & Door Lock Systems
Packaging Details:
20000 pcs per carton
Supply Ability:
10000000 pcs per month
Highlight:

OEM Motor Thermal Protector

,

15A Motor Thermal Protector

,

OEM thermal protective device

Product Description
OEM Bimetal Motor Thermal Protector Cutoff Switch Device 15A For Door Lock Systems
Product Specifications
Attribute Value
Product name 5AP motor thermal protector
Material Metal case
Temperature range 50~180℃
Tolerance ±8℃,±10℃
Voltage 15V/30V DC
Current Customizable
Application Window Lift Motor & Door Lock Systems
Product Description

The HCET 5AP Bimetal Thermal Cutoff Switch is engineered to deliver reliable overload protection for automotive electrical components. As a direct KLIXON-compatible solution, it combines current sensitivity with ambient temperature detection to prevent motor burnout in demanding applications.

Key Features
  • Dual-Activation Technology - Simultaneously monitors current flow (1-25A range) and ambient heat (50-180℃ calibration), triggering in 4-10 seconds to protect motors from thermal damage
  • Automotive-Grade Reliability - Bimetal strip withstands 30,000+ operational cycles with ±5℃ tolerance for consistent performance in vibration-intensive environments
  • Space-Optimized Design - Compact housing enables seamless integration in confined spaces like door panels and wiper compartments
  • Custom Configuration Ready - Choose from multiple terminal types and wire gauges (18-22 AWG) for plug-and-play installation
Electrical Characteristics
50℃~180℃
Operating temperature range, Customizable temperature
4S~10S
Special action time can be customized
±8°C, ±10℃
Temperature Tolerance
1A~25A
The overload current tripping range can be customized according to customer's requirements
Electrical Characteristics

25amps/15 volts DC
15amps/30 volts DC

Dimensions
OEM Bimetal Motor Thermal Protector Cutoff Switch Device 15A For Door Lock Systems 0
Dimension diagram
OEM Bimetal Motor Thermal Protector Cutoff Switch Device 15A For Door Lock Systems 1
Technical specifications
Product Details
OEM Bimetal Motor Thermal Protector Cutoff Switch Device 15A For Door Lock Systems 2
Close-up view
Application
OEM Bimetal Motor Thermal Protector Cutoff Switch Device 15A For Door Lock Systems 3
Installed in automotive application
All specifications are subject to customization based on customer requirements.
