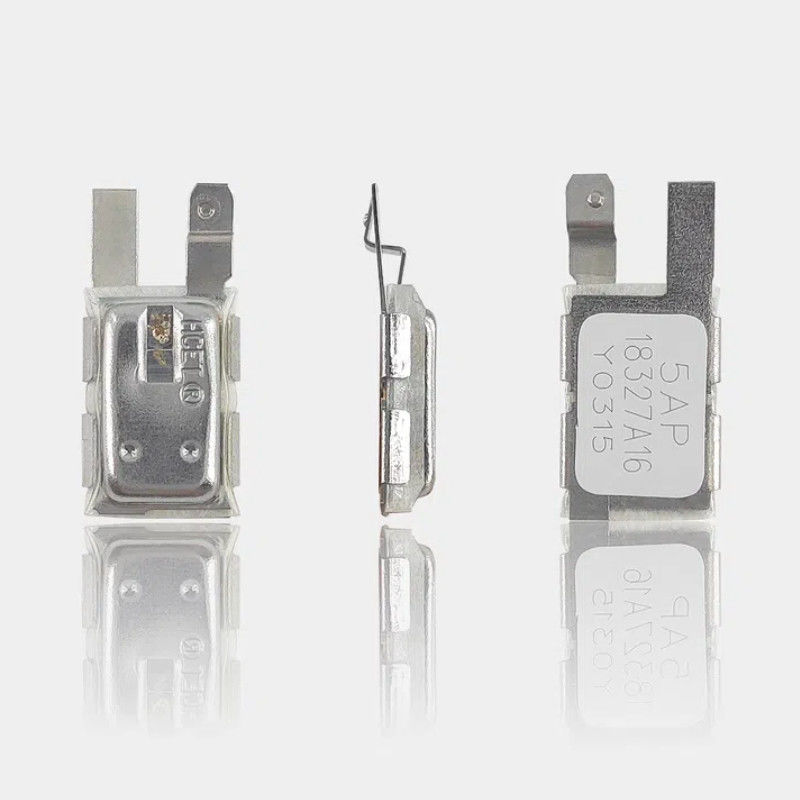

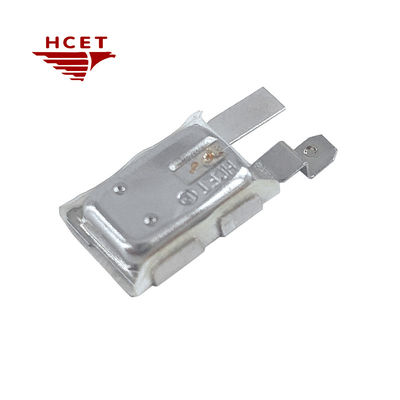

High Current Industrial Motor Thermal Protector Switch 25A 15VDC

Name: High Current Industrial Motor Thermal Protector Switch 25A 15VDC
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: 5AP/2MP
Availability: InStock

Brand Name:	HCET
Model Number:	5AP/2MP
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL, ROHS

Document:

5ap.pdf

Product Name:

5AP Motor Thermal Protector

Material:

Metal Case

Temperature Range:

50~180℃

Tolerance:

±8℃,±10℃

Voltage:

15V/30V DC

Current:

Customizable

Application:

Automotive & Industrial Motors

Packaging Details:

20000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

15VDC Motor Thermal Protector

25A Motor Thermal Protector

15VDC motor thermal protection switch

Product Description

HCET 5AP Bimetal Thermal Overload Protector 25A High Current Motor Protection Switch for Automotive & Industrial Motors

The HCET 5AP Series Bimetal Thermal Overload Protector is an advanced motor protection solution engineered for demanding applications in automotive systems and industrial equipment. Combining precise bimetal technology with dual thermal-current sensing, this UL-recognized protector ensures reliable overload protection for DC motors up to 25A/15VDC and AC motors up to 6A/250VAC.

Product feature:

Automotive-Grade Reliability
Specifically designed for window lift motors, wiper systems, sunroof actuators, and power lock mechanisms
Industrial Durability
Withstands 30,000+ operation cycles in harsh environments
Intelligent Protection
Dual-response mechanism monitors both ambient temperature (50-180℃ ±5℃) and current overload (1-25A range)
Customizable Configurations
Optional terminal types and lead wire specifications

Electrical Characteristics:

50℃~180℃ Operating temperature range, Customizable temperature.	4S~10S Special action time can be customized
±8°C, ±10℃ Temperature Tolerance	1A~25A The overload current tripping range can be customized according to customer's requirements.

25amps/15 volts DC 15amps/30 volts DC
Electrical characteristics

Dimension size

High Current Industrial Motor Thermal Protector Switch 25A 15VDC 0

High Current Industrial Motor Thermal Protector Switch 25A 15VDC 1

Product detail

High Current Industrial Motor Thermal Protector Switch 25A 15VDC 2

Application

High Current Industrial Motor Thermal Protector Switch 25A 15VDC 3
