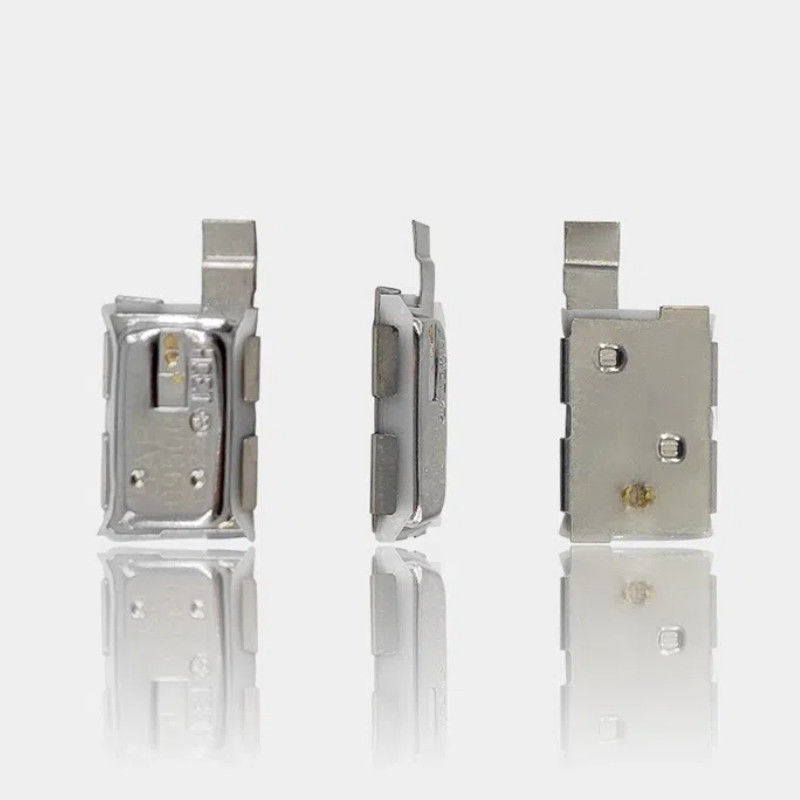

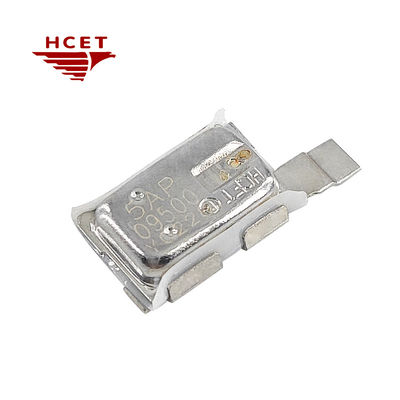

HCET 2MP Fan Bimetal Thermal Overload Protector Cutoff Switch For Sunroof Motors

Name: HCET 2MP Fan Bimetal Thermal Overload Protector Cutoff Switch For Sunroof Motors
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: 5AP/2MP
Availability: InStock

Brand Name:	HCET
Model Number:	5AP/2MP
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL, ROHS

Document:

5ap.pdf

Product Name:

5AP Motor Thermal Protector

Material:

Metal Case

Temperature Range:

50~180℃

Tolerance:

±8℃,±10℃

Voltage:

15V/30V DC

Current:

Customizable

Application:

Window Lift/Wiper/Sunroof Motors

Packaging Details:

20000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

HCET 2MP klixon overload protector

Sunroof Motors klixon overload protector

fan thermal protector Cutoff Switch

Product Description

HCET 2MP Fan Bimetal Thermal Overload Protector Cutoff Switch For Sunroof Motors

Product Specifications

Product name	5AP motor thermal protector
Material	Metal case
Temperature range	50~180℃
Tolerance	±8℃,±10℃
Voltage	15V/30V DC
Current	Customizable
Application	Window Lift/Wiper/Sunroof Motors

Product Overview

The HCET 5AP/2MP series represents advanced bimetal motor protection technology, combining current-sensing and ambient temperature detection for precision overload prevention in demanding environments. Certified to UL standards, this thermal cutoff device ensures compliance with international automotive and industrial safety requirements.

Key Features

Defense-Grade Protection: Silver-nickel alloy contacts ensure <50mΩ resistance after 30,000 cycles
Smart Thermal Management: Dual-sensing bimetal disc with temperature compensation and automatic reset function with anti-chatter technology
Automotive-Optimized Performance: 40℃ to 200℃ operational range
Global Compliance Ready: UL (US/Canada) and TUV certified (Europe)
Custom Engineering Solutions: OEM programming for specific trip curves, lead-free soldering terminals, and custom branding options

Electrical Characteristics

50℃~180℃
Operating temperature range, customizable

4S~10S
Special action time can be customized

±8°C, ±10℃
Temperature tolerance

1A~25A
Customizable overload current tripping range

Electrical Ratings:
25amps/15 volts DC
15amps/30 volts DC

Dimensions

Product Details

Applications
