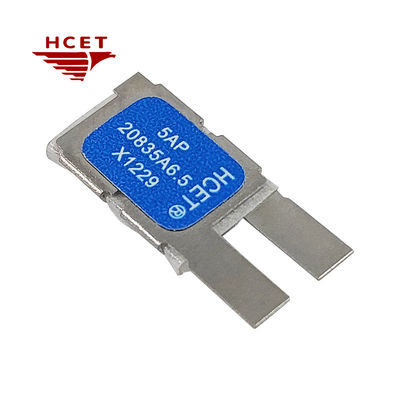

Automatic Reset Automotive Motor Thermal Protector Switch 5AP 6AP

Name: Automatic Reset Automotive Motor Thermal Protector Switch 5AP 6AP
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: 5AP/2MP
Availability: InStock

Brand Name:	HCET
Model Number:	5AP/2MP
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL, ROHS

Document:

5ap.pdf

Product Name:

5AP Motor Thermal Protector

Material:

Metal Case

Temperature Range:

50~180℃

Tolerance:

±8℃,±10℃

Voltage:

15V/30V DC

Current:

Customizable

Application:

DC/AC Motors

Packaging Details:

20000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

Automatic Reset Motor Thermal Protector

5AP 6AP Motor Thermal Protector

6AP automatic reset thermal overload protector

Product Description

HCET 5AP Bimetal Motor Overload Protector Automotive Thermal Switch for DC/AC Motors Replace Klixon 5AP/Sensata 6AP

The HCET 5AP Bimetal Thermal Protector is a high-precision motor protection device designed for automotive and industrial applications. Featuring a dual-sensitive mechanism (current + ambient temperature), it ensures reliable overload protection for DC/AC motors up to 25A 15VDC or 6A 250VAC.

Product feature:

Precision Trip Control
±5℃ tolerance ensures motor protection within 4 - 10 seconds at 25℃ ambient
Automotive - Grade Reliability
Available for wiper motors, window lift systems, sunroof actuators
Universal Replacement
Fully compatible with Klixon 5AP/Sensata 6AP series specifications
Customizable Terminals
Optional blade/quick connect terminals for easy OEM integration

Electrical Characteristics:

50℃~180℃ Operating temperature range, Customizable temperature.	4S~10S Special action time can be customized
±8°C, ±10℃ Temperature Tolerance	1A~25A The overload current tripping range can be customized according to customer's requirements.

25amps/15 volts DC 15amps/30 volts DC
Electrical characteristics

Dimension size

Automatic Reset Automotive Motor Thermal Protector Switch 5AP 6AP 0

Automatic Reset Automotive Motor Thermal Protector Switch 5AP 6AP 1

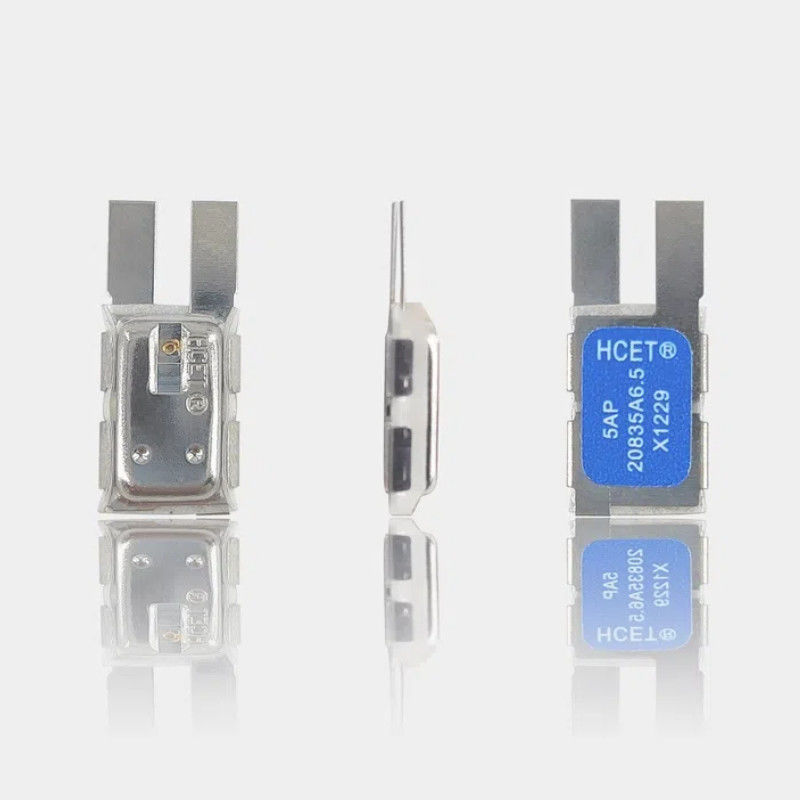

Product detail

Automatic Reset Automotive Motor Thermal Protector Switch 5AP 6AP 2

Application

Automatic Reset Automotive Motor Thermal Protector Switch 5AP 6AP 3
