Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Motor Thermal Protector
Created with Pixso. Overload Thermal Protective Device Motor Thermal Cut Out High Precision For HVAC Systems
Name
  • Name
  • Name
  • Name
  • Name

Overload Thermal Protective Device Motor Thermal Cut Out High Precision For HVAC Systems

Brand Name: HCET
Model Number: HC02-A
MOQ: 1000
Price: please contact us
Delivery Time: 5-7 work days
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
UL, ROHS
Document:
HC02.pdf
Product Name:
HC02 Motor Thermal Protector
Material:
Plastic Case
Temperature Range:
60~180℃
Tolerance:
±8℃,±10℃
Voltage:
250V AC/30V DC
Current:
Customizable
Application:
Automotive Motors, HVAC Systems, Home Appliances
Packaging Details:
20000 pcs per carton
Supply Ability:
10000000 pcs per month
Highlight:

cut out thermal protective device

,

HVAC thermal protective device

,

HVAC motor thermal cut out

Product Description
HC02 Motor Thermal Protector - High Precision Overload Protection for HVAC Systems
Product Name: HC02 motor thermal protector
Material: Plastic case
Temperature Range: 60~180℃
Tolerance: ±8℃,±10℃
Voltage: 250V AC/30V DC
Current: Customizable
Premium Thermal Protection for Motors and Electrical Systems

The HCET HC02 Bimetal Motor Overload Protector delivers professional-grade thermal protection for motors, transformers, and electrical circuits. Engineered to prevent overheating, overload, and short-circuit damage, this versatile protector is ideal for automotive, industrial, and household applications.

Key Features
  • Dual-Metal Precision Protection: Advanced bimetal disc technology ensures rapid response to temperature spikes (60°C-180°C) and current overloads (1-30A) with ±8-10°C tolerance.
  • Multi-Application Compatibility: Suitable for automotive systems (windshield wipers, power windows), HVAC equipment, home appliances, and industrial machinery.
  • Customizable Parameters: Adjustable trip currents (1-30A) and temperature thresholds (5°C increments) for optimized motor protection.
  • Fast-Acting Performance: 4-10 second trip times under overload conditions with durability tested to 30,000+ cycles.
  • Robust Construction: High-temperature-resistant polymer housing with RoHS & UL compliance for safety and reliability.
  • Global Replacement Solution: Direct substitute for OTTER, Klixon, and similar thermal protectors.
Electrical Characteristics
Parameter Specification
Operating Temperature Range 60℃~170℃ (Customizable)
Action Time 4S~10S (Customizable)
Temperature Tolerance ±8°C, ±10℃
Current Tripping Range 1A~30A (Customizable)
Voltage Ratings 1~30amps/15 volts DC
1~15amps/250 volts AC
1~15amps/30 volts DC
1~30amps/125 volts AC
Product Dimensions
Overload Thermal Protective Device Motor Thermal Cut Out High Precision For HVAC Systems 0

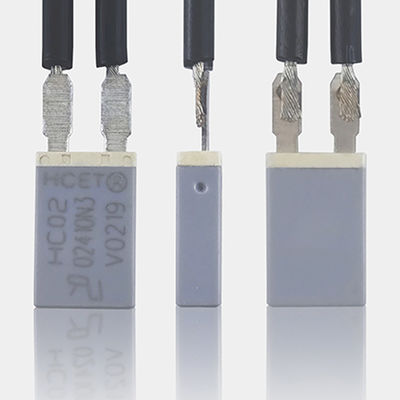

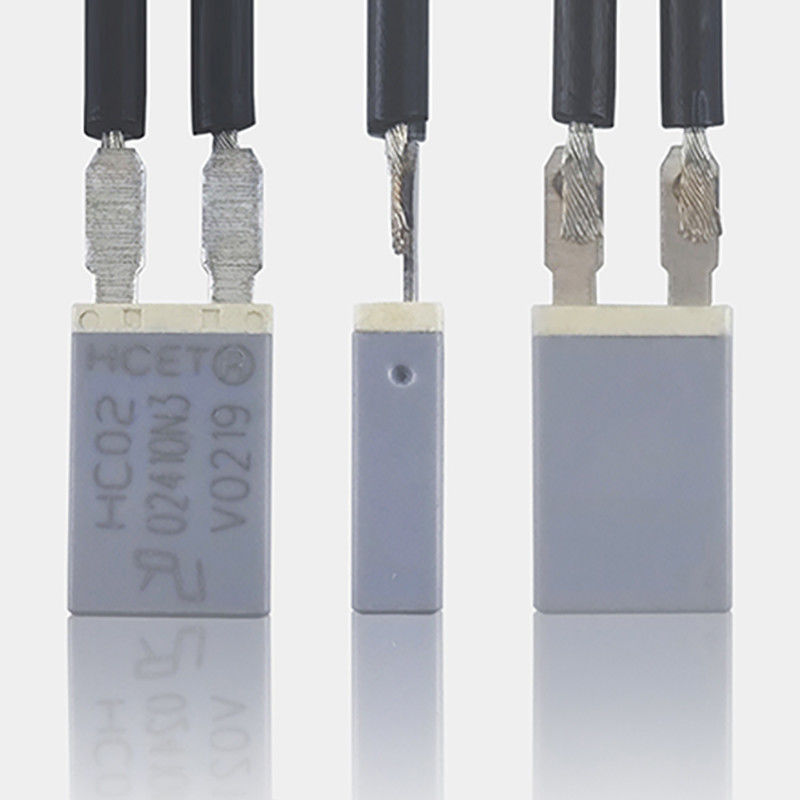

Detailed Product View
Overload Thermal Protective Device Motor Thermal Cut Out High Precision For HVAC Systems 1
Typical Applications
Overload Thermal Protective Device Motor Thermal Cut Out High Precision For HVAC Systems 2
