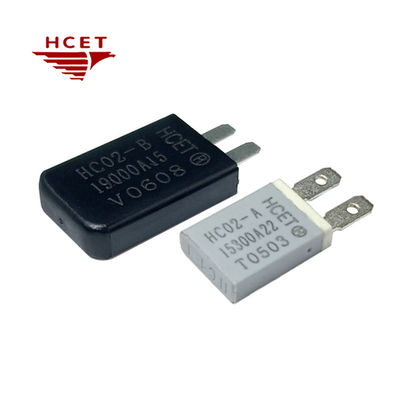

HCET HC02 7am Bimetal Overcurrent Motor Thermal Protector Cutoff Switch 30A

Name: HCET HC02 7am Bimetal Overcurrent Motor Thermal Protector Cutoff Switch 30A
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: HC02-B
Availability: InStock

Brand Name:	HCET
Model Number:	HC02-B
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL, ROHS

Document:

HC02.pdf

Product Name:

HC02-B Motor Thermal Protector

Material:

Plastic Case

Temperature Range:

60~180℃

Tolerance:

±8℃,±10℃

Voltage:

250V AC/30V DC

Current:

Customizable

Application:

Wiper/Window Motors

Packaging Details:

20000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

HCET HC02 Motor Thermal Protector

Overcurrent Motor Thermal Protector

Bimetal klixon 7am thermal protector

Product Description

HCET HC02 7am Bimetal Overcurrent Motor Thermal Protector Cutoff Switch 30A

Product Specifications

Attribute	Value
Product name	HC02-B motor thermal protector
Material	Plastic case
Temperature range	60~180℃
Tolerance	±8℃,±10℃
Voltage	250V AC/30V DC
Current	Customizable
Application	Wiper/Window Motors

Product Overview

The HCET HC02 Series is a precision-engineered bimetal motor overload protector designed to safeguard automotive and industrial motors from overheating, overcurrent, and short circuits. Engineered as a direct replacement for Otter switches, this thermal protector combines high durability with advanced protection technology for motors in demanding environments.

Key Features

Rapid Response & Precision: Fast tripping time (4-10 seconds) prevents irreversible motor damage, ensuring reliability in critical applications like wiper systems and power windows.
Wide Application Compatibility: Ideal for automotive motors (windshield wipers, sunroofs, sliding doors), HVAC systems, and industrial equipment requiring overload and thermal protection.
High-Current Capacity: Supports up to 30A/125V AC and 15A/250V AC, making it suitable for heavy-duty motors and transformers.
RoHS Compliance: All components meet strict EU environmental standards, ensuring global market compatibility.
Customizable Options: Tailor tripping current (1-30A), terminal types, and temperature ranges to meet OEM requirements.

Electrical Characteristics

60℃~170℃ Operating temperature range, Customizable temperature

4S~10S Special action time can be customized

± 8°C, ±10℃ Temperature Tolerance

1A~30A The overload current tripping range can be customized according to customer's requirements

Electrical Specifications:
1~30amps/15 volts DC
1~15amps/250 volts AC
1~15amps/30 volts DC
1~30amps/125 volts AC

Product Dimensions

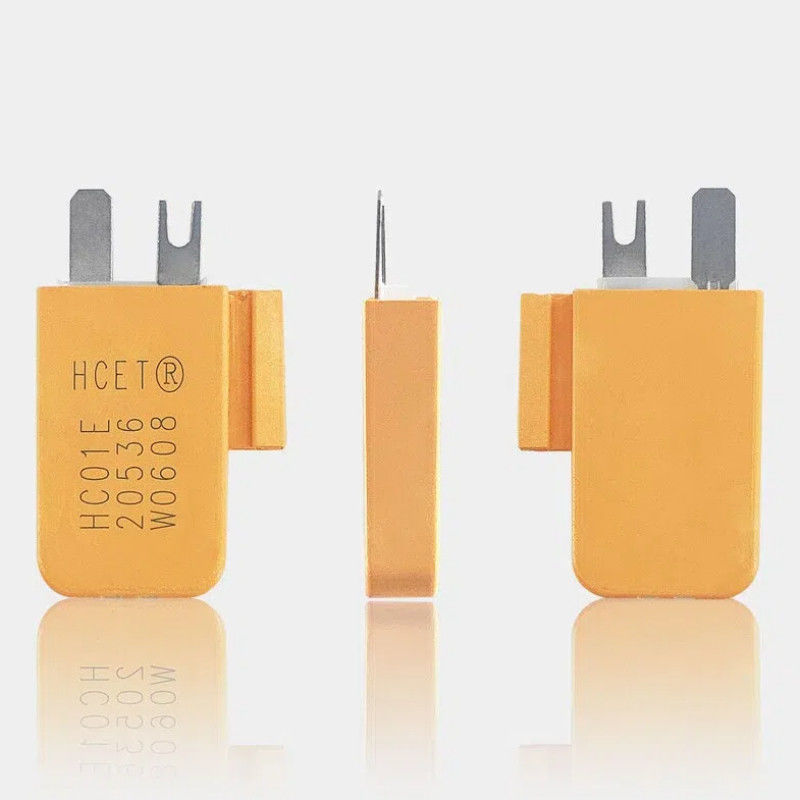

Detailed Product View

Typical Applications

Tags:

motor winding thermal protection

ac thermal protector

thermal overload protection switch

Custom Bimetal Overload DC Motor Thermal Protection Device Switch HCET 5AP 2MP

Get Best Price

Video

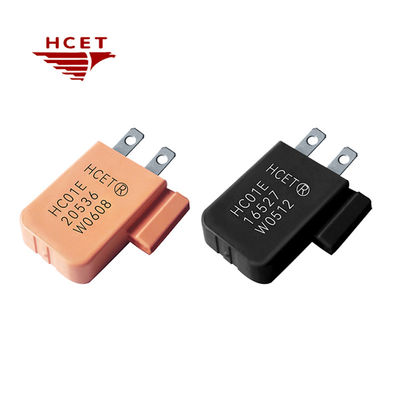

HC01/6AP Bimetal Motor Overload Protector Automotive Grade Current Protection for Wiper Motors, Home Appliances, HVAC Systems
