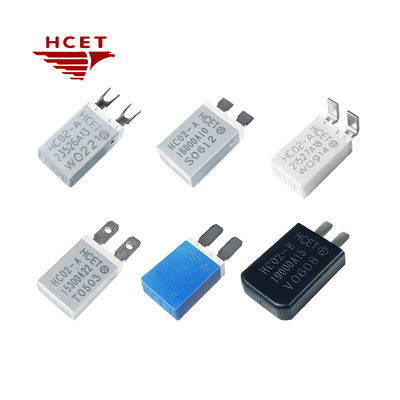

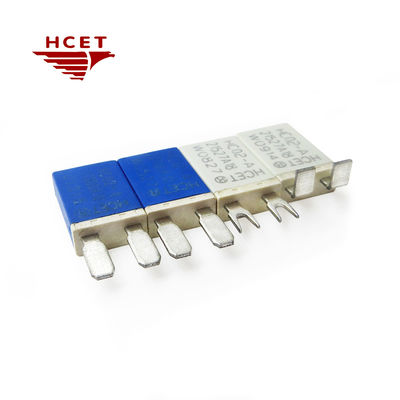

30A 250V Bimetal Thermal Protector Overload Cutoff Switch For Cooling Fan Motor

Name: 30A 250V Bimetal Thermal Protector Overload Cutoff Switch For Cooling Fan Motor
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: HC02-A
Availability: InStock

Brand Name:	HCET
Model Number:	HC02-A
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL, ROHS

Document:

HC02.pdf

Product Name:

HC02 Motor Thermal Protector

Material:

Plastic Case

Temperature Range:

60~180℃

Tolerance:

±8℃,±10℃

Voltage:

250V AC/30V DC

Current:

Customizable

Application:

Low-voltage Cooling Fan Motor

Packaging Details:

10000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

30A 250V bimetal thermal protector

Fan Motor bimetal thermal protector

30A 250V fan thermal protector

Product Description

HCET HC02 Series Bimetal Motor Overload Protector 30A/250V Thermal Cutoff Switch for Low-voltage cooling fan motor

The HCET HC02 Series is a precision-engineered bimetal motor overload protector designed to safeguard motors and transformers
from overheating, overloads, and short circuits. With a compact, heat-resistant housing and RoHS-compliant components, this thermal switch
ensures reliable performance in demanding environments.

Product feature:

Dual Protection Technology
Sensitive to both temperature (60°C–180°C ±8°C) and current (1–30A), offering comprehensive protection against overheating and overcurrent.
Fast-Acting Response
4–10 second trip time prevents motor burnout during stalls or voltage spikes.
High-Capacity Design
Supports up to 30A/250V AC, ideal for heavy-duty applications in automotive systems, HVAC units, and industrial machinery.
Customizable Solutions
Tailor trip current (1–30A), terminal types (plug-in/screw terminals), and temperature thresholds to match OEM requirements.
Extended Service Life
30,000+ operation cycles ensure durability in high-frequency use scenarios like power tools and automated machinery.
Industry Applications:
Automotive: Window regulators, sunroof motors, wiper systems
Industrial: Pumps, compressors, conveyor belt drives
Consumer: Home appliances, HVAC fans, garage door openers

Electrical Characteristics:

60℃~170℃ Operating temperature range, Customizable temperature.	4S~10S Special action time can be customized
±8°C, ±10℃ Temperature Tolerance	1A~30A The overload current tripping range can be customized according to customer's requirements.

1~30amps/15 volts DC 1~15amps/250 volts AC
1~15amps/30 volts DC 1~30amps/125 volts AC
Electrical characteristics

Dimension size

30A 250V Bimetal Thermal Protector Overload Cutoff Switch For Cooling Fan Motor 0

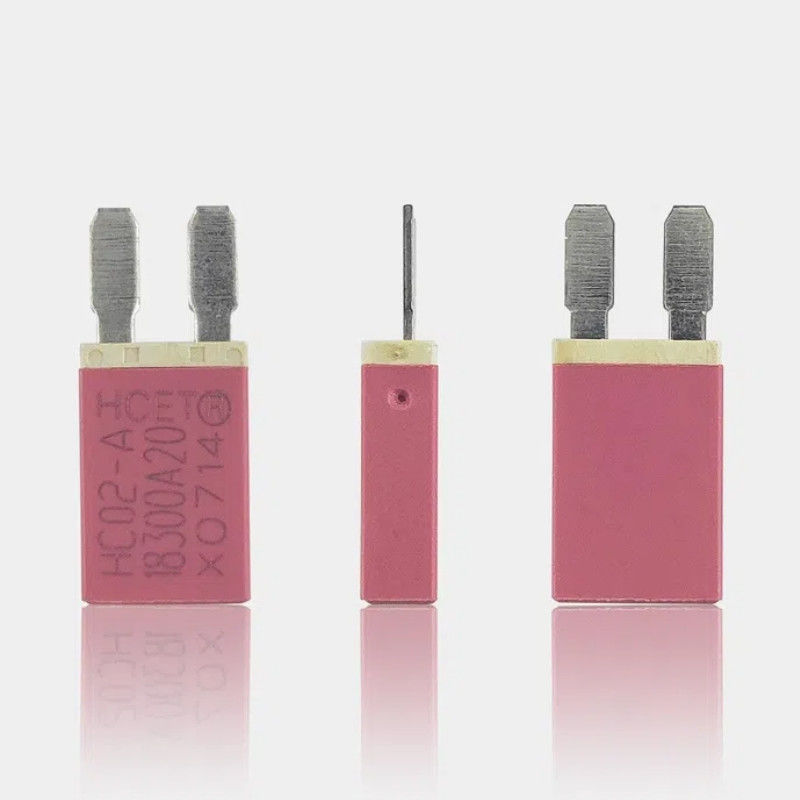

Product detail

30A 250V Bimetal Thermal Protector Overload Cutoff Switch For Cooling Fan Motor 1

Application

30A 250V Bimetal Thermal Protector Overload Cutoff Switch For Cooling Fan Motor 2
