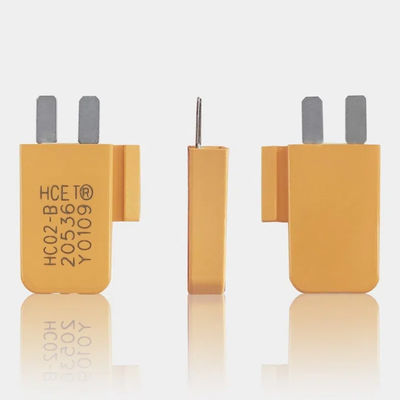

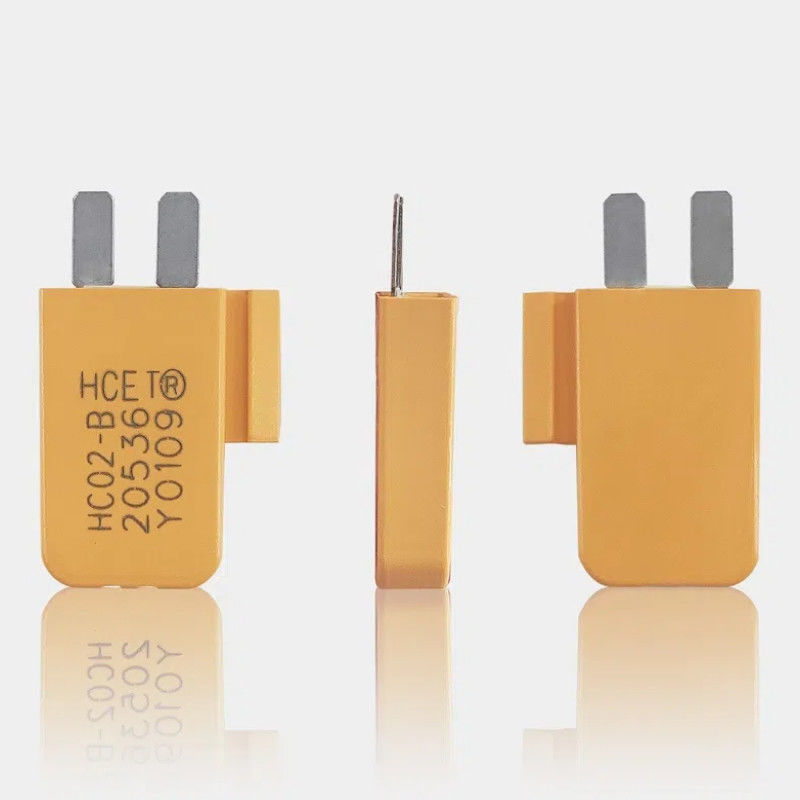

HCET HC02-B Overload Motor Thermal Protector 1A-30A For Power Window Motor

Name: HCET HC02-B Overload Motor Thermal Protector 1A-30A For Power Window Motor
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: HC02-B
Availability: InStock

Brand Name:	HCET
Model Number:	HC02-B
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL, ROHS

Document:

HC02.pdf

Product Name:

HC02-B Motor Thermal Protector

Material:

Plastic Case

Temperature Range:

60~180℃

Tolerance:

±8℃,±10℃

Voltage:

250V AC/30V DC

Current:

Customizable

Application:

Power Window Motor

Packaging Details:

10000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

HCET HC02-B Motor Thermal Protector

30A Motor Thermal Protector

30A klixon overload protector

Product Description

HCET HC02-B Series Motor Thermal Protector 1-30A Bimetal Overload Protector for Power Window Motor

The HCET HC02 Series is a precision-engineered bimetal motor overload protector designed for critical thermal and current-sensitive applications.
Featuring a high-temperature resistant polymer housing, this device ensures reliable protection against overheating, locked rotor, and short circuits
in motors up to 30A. With customizable trip currents (1-30A) and fast-acting response (4-10s), it is ideal for automotive systems (sunroofs, wipers,
power windows) and industrial equipment (compressors, pumps, HVAC). Compliant with RoHS standards, the HC02 offers ±8°C temperature
accuracy and operates seamlessly from 60°C to 180°C.

Product feature:

Dual-Sensing Protection
Simultaneously monitors temperature and current to prevent motor burnout in overload/overheat scenarios.
Wide Application Coverage
Certified for IATF16949, compatible with 12V/24V DC and 125-250V AC systems.
Precision Engineering
- Adjustable trip current: 1-30A (±5% accuracy)
- Temperature range: 60°C-180°C (±8°C tolerance)
- Fast trip time: 4-10 seconds at 2× rated current
Durable Construction
High-grade bimetal disc with flame-retardant housing withstands 30,000+ cycles.
Global Compliance
RoHS/REACH compliant, CE marked, compatible
Custom Solutions
Optional terminal types

Electrical Characteristics:

60℃~170℃ Operating temperature range, Customizable temperature.	4S~10S Special action time can be customized
±8°C, ±10℃ Temperature Tolerance	1A~30A The overload current tripping range can be customized according to customer's requirements.

1~30amps/15 volts DC 1~15amps/250 volts AC
1~15amps/30 volts DC 1~30amps/125 volts AC
Electrical characteristics

Dimension size

HCET HC02-B Overload Motor Thermal Protector 1A-30A For Power Window Motor 0

Product detail

HCET HC02-B Overload Motor Thermal Protector 1A-30A For Power Window Motor 1

Application

HCET HC02-B Overload Motor Thermal Protector 1A-30A For Power Window Motor 2
